CMP RA2e Zone 2 Hazardous Area ATEX Cable Gland Ex e, Ex nR, Ex ta

CMP RA2e Zone 2 Hazardous Area ATEX Cable Gland Ex e, Ex nR, Ex ta

CMP RA2e Cable Gland

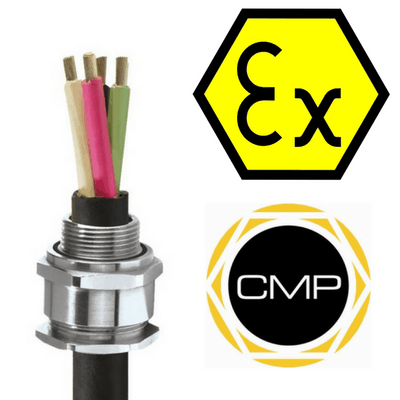

CMP RA2e cable gland for terminating all types of unarmoured and braid type cables located in Zone 2 hazardous areas.

CMP RA2e Cable Glands

  • Supplied with face seal
  • 10mm thread length on cable gland sizes 32 and below
  • Displacement type flameproof seal
  • Deluge protected cable gland
  • -60ËšC to +130ËšC
  • Globally marked – hazardous area certified to IECEx & ATEX
  • Order Code: CMP RA2e** (Brass) Cable Gland

Hazardous Area Cable Glands

CMP RA2e cable glands are certified by ATEX for safe glanding of cables in Zone 2 potentially explosive atmospheres according to the following hazardous area classification:

  • II 2G II 1D Ex e IIC Gb, Ex ta IIIC Da
  • II 3G Ex nR IIC Gc

âž¡ See full range of CMP ATEX Cable Glands for unarmoured and braided cables – to view the complete range of CMP glands for Zone 1 & Zone 2 cable termination please visit Hazardous Area Cable Glands Zone 1 & Zone 2 locations.

cmp RA2e Cable Glands specification

CMP RA2e Cable Gland Material: Brass, Electroless Nickel Plated Brass, Aluminium, Stainless Steel

Cable Gland Design Specification: BS6121: Part 1: 1989, IEC 62444, EN 62444

The following table enables the selection of CMP RA2e cable glands – should you need to discuss a specific application for hazardous area or high voltage cable applications please call T&D.

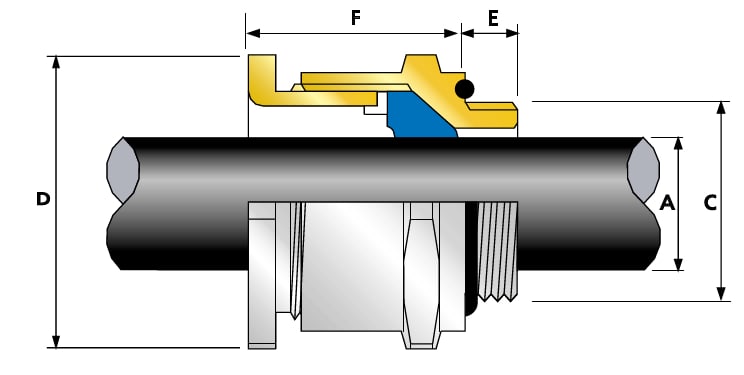

CMP Cable Gland Size Available Entry Threads “C” (Alternative Metric Thread Lengths Available Overall Cable Diameter “A” Across Flats “D” Across Corners “D” Protrusion Length “F” Combined Ordering Reference (Brass Metric) Cable Gland Shroud Cable Gland Weight (kgs)
Standard Option
Metric Thread Length (Metric) “E” NPT Thread Length (NPT) “E” NPT Min Max Max Max Max Size Type Ordering Suffix
RA2e16 M16 10.0 – – – 3.2 8.7 27.0 29.7 29.4 16 RA2e 1RA PVC02 0.060
RA2e20s16 M20 10.0 1/2″ 19.9 3/4″ 3.2 8.7 27.0 29.7 26.2 20S16 RA2e 1RA PVC04 0.070
RA2e20S M20 10.0 1/2″ 19.9 3/4″ 6.1 11.7 27.0 29.7 25.9 20S RA2e 1RA PVC04 0.060
RA2e20 M20 10.0 1/2″ 19.9 3/4″ 6.5 14.0 27.0 29.7 27.4 20 RA2e 1RA PVC05 0.070
RA2e25 M25 10.0 3/4″ 20.2 1″ 11.1 20.0 36.0 39.6 35.9 25 RA2e 1RA PVC09 0.130
RA2e32 M32 10.0 1″ 25.0 1 1/4″ 17.0 26.3 41.0 45.1 35.5 32 RA2e 1RA PVC10 0.150
RA2e40 M40 15.0 1 1/4″ 25.6 1 1/2″ 23.5 32.2 50.0 55.0 35.2 40 RA2e 1RA PVC13 0.200
RA2e50S M50 15.0 1 1/2″ 26.1 2″ 31.0 38.2 60.0 66.0 33.9 50S RA2e 1RA PVC15 0.260
RA2e50 M50 15.0 2″ 26.9 2 1/2″ 35.6 44.0 60.0 66.0 37.5 50 RA2e 1RA PVC18 0.270
RA2e63S M63 15.0 2″ 26.9 2 1/2″ 41.5 49.9 75.0 82.5 34.7 63S RA2e 1RA PVC21 0.430
RA2e63 M63 15.0 2 1/2″ 39.9 3″ 47.2 55.9 75.0 82.5 37.0 63 RA2e 1RA PVC23 0.400
RA2e75S M75 15.0 2 1/2″ 39.9 3″ 54.0 61.9 90.0 99.0 34.7 75S RA2e 1RA PVC24 0.520
RA2e75 M75 15.0 3″ 41.5 3 1/2″ 61.1 67.9 89.0 97.9 40.6 75 RA2e 1RA PVC26 0.500
RA2e90 M90 24.0 3 1/2″ 42.8 4″ 66.6 79.9 108.0 118.8 60.3 90 RA2e 1RA PVC31 1.600
RA2e100 M100 24.0 3 1/2″ 42.8 4″ 76.0 91.0 123.0 135.3 54.3 100 RA2e 1RA LSF33 1.780
RA2e115 M115 24.0 4″ 44.0 5″ 86.0 97.9 133.4 146.7 66.2 115 RA2e 1RA LSF34 2.670
RA2e130 M130 24.0 5″ 46.8 – 97.0 114.9 152.4 167.6 74.8 130 RA2e 1RA LSF35 3.800
