CMP RA2e100 Zone 2 Hazardous Area ATEX Cable Gland Ex e, Ex nR, Ex ta

CMP RA2e100 Zone 2 Hazardous Area ATEX Cable Gland Ex e, Ex nR, Ex ta

CMP RA2e100 Cable Gland

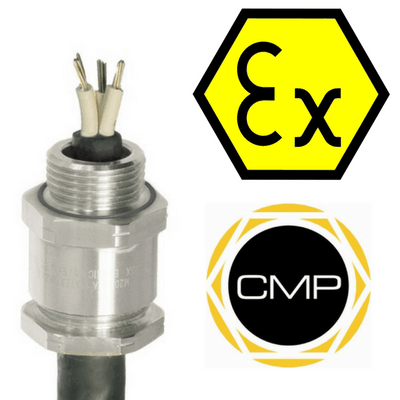

CMP RA2e100 cable gland for terminating all types of unarmoured and braid type cables located in Zone 2 hazardous areas.

CMP RA2e100 Cable Glands

  • Supplied with face seal
  • Complies 100% with IEC 60079-0 cable retention requirements
  • No external cable clamping required
  • No special conditions for safe use
  • 10mm thread length on cable gland sizes 32 and below
  • Displacement type flameproof seal
  • Deluge protected cable gland
  • -60ËšC to +130ËšC
  • Globally marked – hazardous area certified to IECEx & ATEX
  • Order Code: CMP RA2e100** (Brass) Cable Gland

Hazardous Area Cable Glands

CMP RA2e100 cable glands are certified by ATEX for safe glanding of cables in Zone 2 potentially explosive atmospheres according to the following hazardous area classification:

  • II 2G Ex eb IIC Gb, II 1D Ex ta IIIC Da
  • II 3G Ex nRc IIC Gc, I M2 Ex eb I Mb

➡ See full range of CMP ATEX Cable Glands for unarmoured and braided cables- to view the complete range of CMP glands for Zone 1 & Zone 2 cable termination please visit Hazardous Area Cable Glands Zone 1 & Zone 2 locations.

cmp RA2e100 Cable Glands specification

CMP RA2e100 Cable Gland Material: Brass, Electroless Nickel Plated Brass, Aluminium, Stainless Steel

Cable Gland Design Specification: BS6121: Part 1: 1989, IEC 62444, EN 62444

The following table enables the selection of CMP RA2e100 cable glands – should you need to discuss a specific application for hazardous area or high voltage cable applications please call T&D.

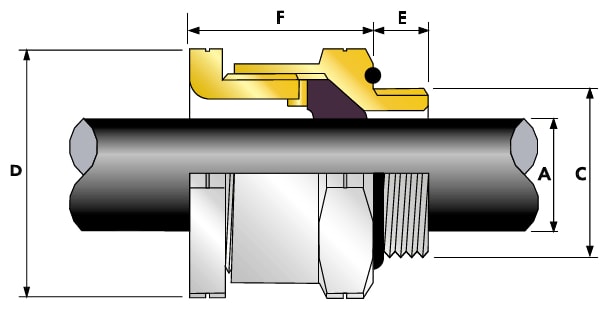

CMP Cable Gland Size Available Entry Threads “C” (Alternative Metric Thread Lengths Available Overall Cable Diameter “A” Across Flats “D” Across Corners “D” Protrusion Length “F” Combined Ordering Reference (Brass Metric) Cable Gland Shroud Cable Gland Weight (kgs)
Standard Option
Metric Thread Length (Metric) “E” NPT Thread Length (NPT) “E” NPT Min Max Max Max Max Size Type Ordering Suffix
RA2E10016 M16 15.0 – – – 3.2 8.0 24.0 26.4 34.9 16 RA2E100 1RA PVC04 0.07
RA2E10020s16 M20 15.0 1/2″ 19.9 3/4″ 3.2 8.0 24.0 26.4 31.4 20S16 RA2E100 1RA PVC05 0.08
RA2E10020S M20 15.0 1/2″ 19.9 3/4″ 6.5 11.2 24.0 26.4 32.1 20S RA2E100 1RA PVC05 0.07
RA2E10020 M20 15.0 1/2″ 19.9 3/4″ 7.0 13.5 27.0 29.7 35.8 20 RA2E100 1RA PVC05 0.08
RA2E10020L M20 15.0 1/2″ 19.9 3/4″ 8.7 14.0 27.0 29.7 34.3 20L RA2E100 1RA PVC05 0.08
RA2E10025 M25 15.0 3/4″ 20.2 1″ 11.5 19.5 36.0 39.6 40.4 25 RA2E100 1RA PVC09 0.16
RA2E10025L M25 15.0 3/4″ 20.2 1″ 14.0 20.0 36.0 39.6 39.9 25L RA2E100 1RA PVC09 0.16
RA2E10032 M32 15.0 1″ 25.0 1 1/4″ 19.0 25.5 41.0 45.1 38.5 32 RA2E100 1RA PVC10 0.19
RA2E10032L M32 15.0 1″ 25.0 1 1/4″ 20.2 26.3 41.0 45.1 38.9 32L RA2E100 1RA PVC10 0.19
RA2E10040 M40 15.0 1 1/4″ 25.6 1 1/2″ 25.0 32.2 50.0 55.0 39.1 40 RA2E100 1RA PVC13 0.25
RA2E10050S M50 15.0 1 1/2″ 26.1 2″ 31.0 38.2 55.0 60.5 41.1 50S RA2E100 1RA PVC18 0.33
RA2E10050 M50 15.0 2″ 26.9 2 1/2″ 35.6 44.0 60.0 66.0 45.8 50 RA2E100 1RA PVC18 0.35
RA2E10063S M63 15.0 2″ 26.9 2 1/2″ 41.5 49.9 70.5 77.6 43.3 63S RA2E100 1RA PVC23 0.56
RA2E10063 M63 15.0 2 1/2″ 39.9 3″ 48.2 54.9 75.0 82.5 43.6 63 RA2E100 1RA PVC23 0.55
RA2E10075S M75 15.0 2 1/2″ 39.9 3″ 54.0 61.9 84.0 92.4 45.4 75S RA2E100 1RA PVC27 0.73
RA2E10075 M75 15.0 3″ 41.5 3 1/2″ 61.1 67.9 84.0 92.4 49.0 75 RA2E100 1RA PVC27 0.58
RA2E10090 M90 24.0 3 1/2″ 42.8 4″ 66.6 79.9 108.0 118.8 66.0 90 RA2E100 1RA PVC31 1.71
RA2E100100 M100 24.0 3 1/2″ 42.8 4″ 76.0 89.0 123.0 135.3 71.2 100 RA2E100 1RA LSF33 2.26
RA2E100115 M115 24.0 4″ 44.0 5″ 86.0 97.9 133.4 146.7 69.9 115 RA2E100 1RA LSF34 2.74
RA2E100130 M130 24.0 5″ 46.8 – 97.0 114.9 152.4 167.6 81.1 130 RA2E100 1RA LSF35 4.07
