Cable Protection

Concrete Marker Blocks

Precast concrete cable marker blocks are primarily used for cable protection to aid in the location and identification of electric cables and other utility services which are buried underground – marker blocked manufactured from concrete can also be used alongside cable protection covers to mark boundaries and other reference points.

Cable marker blocks and c oncrete cable covers are made from precast concrete and are manufactured and tested in accordance with BS 1881 standards – the range is available in a variety of standard sizes with various legends, however any size or wording can be produced on application.

Cable marker Block types

Marker Blocks are manufactured in accordance with BS 1881 and standard blocks are listed in the table opposite.

Where applicable blocks have a recess on the underside which houses a 6mm galvanised bar to enable cable draw ropes etc. to be attached.

The standard recess size for identification plates is 100mm x 75mm.

Any other requirements can be made to order.

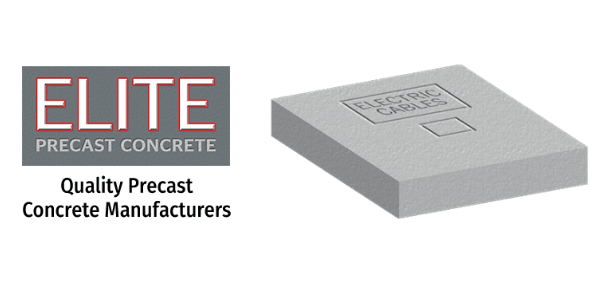

Concrete Cable Marker Blocks

Technical Specification

Standard sizes available as shown below for concrete cable marker blocks (please refer to the above images).

Cable Marker Block Part Number	Height	Width	Depth	Weight	Narrative
CG2 (other ref BCB 300)	300mm	300mm	150mm	32kg	Electric Cables
CG2B	300mm	300mm	150mm	32kg	High Voltage Cables
CG2C	300mm	300mm	150mm	32kg	Fibre Optic Cables
CG2D	300mm	300mm	150mm	32kg	Gas
CG2E	300mm	300mm	150mm	32kg	Water
CG2F	300mm	300mm	150mm	32kg	DHM
CG2G	300mm	300mm	150mm	32kg	Boundary
CG2H	300mm	300mm	150mm	32kg	BT
CG2J	300mm	300mm	150mm	32kg	SP
CG2A	300mm	300mm	225mm	48kg	D
CG2A	300mm	300mm	225mm	48kg	DD
CG2A	300mm	300mm	225mm	48kg	J
CG3	600mm	600mm	100mm	89kg	Electric Cables
CG4	300mm	300mm	75mm	16kg	Fire Mains
CG5	150mm	300mm	150mm	15kg	Highway Boundary
CG5A	100mm	100mm	500mm	12kg	HB
CG5B	150mm	300mm	105mm	11kg	Highway Boundary
CG6	250mm	450mm	105mm	26kg	Filter Drain Below

Cable Covers

LV MV HV cable covers, Tapetiles and underground warning tapes are installed over LV, MV and HV power cables in trench and ducted cable installations with high visibility colour providing a visual warning of danger when excavating cables. 11kV and 33kV cable protection tapes (Tapetile tiles and Stokbord covers) are manufactured from heavy duty plastic for reliable protection of underground medium voltage (MV) and high voltage (HV) cables.

Stokbord cable covers are utility protection tiles approved and specified by international energy and electricity providers. Cable covers are highly visible and prevent damage to buried high voltage cables and other services including gas, water and telecoms.
