CW63 Aluminium Cable Gland Kit – Prysmian Bicon KA422-61

CW Aluminium Cable Gland Kits – Prysmian Bicon KA422 Glands (AWA Aluminium Wire Armoured Cable Terminations)

CW63 Aluminium Cable Gland Kits

Prysmian Bicon KA422-61 (CW63) CW aluminium cable glands with 63mm entry thread enable cable termination of plastic or rubber sheathed aluminium wire armoured cables in indoor or outdoor applications  – the CW63 cable glands are weatherproof and waterproof and suitable for 51.3-65.3mm cable diameters.

Prysmian Bicon CW63 Aluminium Cable Gland Kit

Technical Specification

  • Manufacturer: Prysmian
  • Brand: Bicon
  • Cable Gland Material: Aluminium
  • Cable Gland Size: CW63
  • Quantity Per Kit: 1 Gland
  • Under Armour Max ∅ (A): 55.9mm
  • Cable Diameter (B): 51.3-65.3mm
  • Armour Wire ∅: 2.5mm
  • Entry Thread (D) : M63 x 1.5
  • Thread Length (E) : 15mm
  • Protrusion Length (F): 67mm
  • Hexagon A/F (G): 80mm
  • Hexagon A/C (H): 87.4mm
  • Order Code: Prysmian Bicon KA422-61

CW63 Aluminium Cable Gland Kit

Kit Contents: CW-AL Gland, Aluminium Earth Tag and Aluminium Locknut and PCP Shroud. CW glands packs also available for low smoke zero halogen and ATEX hazardous area applications. For 11kV-33kV cable terminations see MV-HV cable glands.

➡ See trefoil cable cleats for effective cable clamps and support for single core XLPE/AWA installation in trefoil formation.

Gland kit order code: pRYSMIAN CW63 KA422-61
CW Aluminium Cable Gland Kits – Prysmian Bicon KA422 Glands (AWA Aluminium Wire Armoured Cable Terminations)

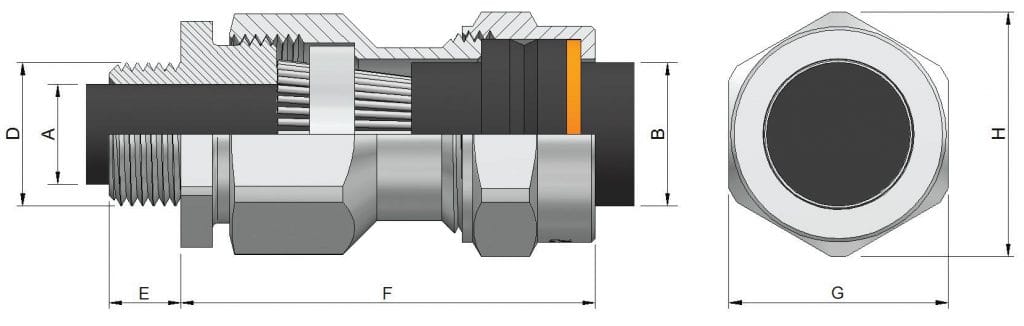

Prysmian Bicon CW63 Aluminium Cable Gland Kits – Dimensions Illustration
