Draka Saffire BS6724 SWA Armoured Zero Halogen Low Smoke Cables

Draka Saffire BS6724 SWA Armoured Zero Halogen Low Smoke Cables

Low Smoke Zero Halogen Cables

Draka Saffire BS6724

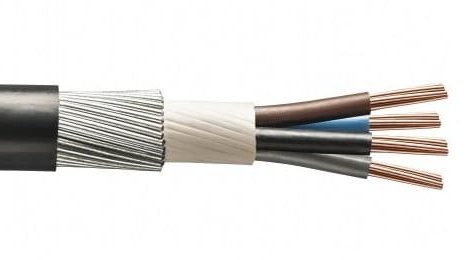

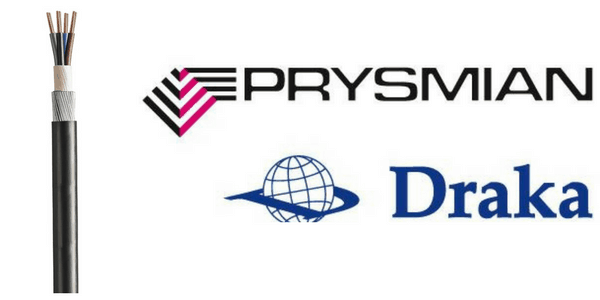

Prysmian Draka Saffire BS6724 SWA is a zero halogen, low smoke armoured power cable for industrial wiring and mains distribution where thick black smoke and acid emission would pose a major hazard during a fire.

Saffire BS6724 SWA cables are LU approved and are designed for use in public areas and can be installed within cable ducts, clipped directly to a surface, on trays, in baskets or free air. Additionally, the cables can be laid direct in ground in free draining soil and embedded in concrete.

➡ See also 6242B | 6491B | Railsure LU Cables Draka Saffire BS6724 SWA Armoured Zero Halogen Low Smoke Cables

Draka Saffire BS6724

Technical data

The following table provides a brief overview of the cable construction dimensions for the BS6724 type cable manufactured by Draka as part of the Saffire range of low smoke zero halogen cables – for fire resistant cables consult the Draka Firetuf range.

  Cable Construction
Conductors Stranded plain annealed copper wire (Class 2) to BS EN 60228
Insulation XLPE
Binder Polyester tape
Bedding Zero halogen, low smoke (0HLS)
Armour Galvanised steel wire armour (aluminium wire armour for single core)
Sheath Zero halogen, low smoke (0HLS)
Core Colours Single Core: Brown or blue
Two Core: Brown and blue
Three Core: Brown, black and grey
Four Core: Brown, black, grey and blue
Five Core: Brown, black, grey, blue and green/yellow
Sheath Colour Black
  Physical Characteristics
Voltage Rating (Uo/U) 600/1000V
Maximum Conductor Temperature 90ºC
Note: Where a conductor operates at a temperature exceeding 70ºC it shall be ascertained that the equipment connected to the conductor is suitable for the conductor operating temperature (see regulation 512-1-5 of BS7671, the 17th Edition of IEE Wiring Regulations)
Minimum Bending Radius 6D circular conductors
8D shaped conductors
Current Rating Refers to tables 4E4A & 4E4B in BS7671 or ERA 69-30 Part V
  Performance Characteristics
Smoke Emission BS EN 61034-2
Acid Gas Emission BS EN 50267-2-1
Flame Propagation BS EN 60332-3-24

Draka Saffire BS6724

Single Core 694AWLSH cables

Low Smoke Zero Halogen

Nominal Area of Conductor (sqmm) Armour Wire Diameter (mm) Approx Diameter Under Armour (mm) Approx Overall Diameter (mm) Approx Cable Weight (kg/km) Maximum Conductor Resistance Nominal Area of Armour (sqmm) Maximum Armour Resistance at 20ºC (Ω/km)
DC at 20ºC (Ω/km) AC at 90ºC (Ω/km)
120* 1.25 17.7 24.2 1540 0.1530 0.1962 52 0.61
150* 1.6 19.5 26.2 1840 0.1240 0.1594 76 0.42
185* 1.6 21.6 28.4 2230 0.0991 0.1280 84 0.38
240* 1.6 23.8 30.6 2800 0.0754 0.0985 94 0.34
300* 1.6 26.4 33.4 3435 0.0601 0.0797 104 0.31
400* 2.0 30.1 38.1 4385 0.0470 0.0635 147 0.22
500* 2.0 33.9 42.1 5535 0.0366 0.0513 163 0.20
630* 2.0 38.2 46.6 6990 0.0283 0.0419 182 0.18
800* 2.5 43.4 53.2 9170 0.0221 0.0349 260 0.13
1000* 2.5 48.3 58.2 11355 0.0176 0.0303 284 0.12

*Circular conductor

Prysmian Cables

Two Core 6942LSH cables

Low Smoke Zero Halogen

Nominal Area of Conductor (sqmm) Armour Wire Diameter (mm) Approx Diameter Under Armour (mm) Approx Overall Diameter (mm) Approx Cable Weight (kg/km) Maximum Conductor Resistance Nominal Area of Armour (sqmm) Maximum Armour Resistance at 20ºC (Ω/km)
DC at 20ºC (Ω/km) AC at 90ºC (Ω/km)
1.5* 0.9 6.9 10.8 240 12.1 15.428 15 10.2
2.5* 0.9 8.2 12.2 305 7.41 9.448 17 8.8
4* 0.9 9.3 13.3 370 4.61 5.878 19 7.9
6* 0.9 10.4 14.4 445 3.08 3.927 22 7
10* 0.9 12.0 16.2 580 1.83 2.333 26 6
16* 1.25 14.1 19.0 870 1.15 1.466 42 3.7
25 1.25 15.1 20.7 1090 0.727 0.926 42 3.7
35 1.6 16.7 23.2 1470 0.524 0.6685 60 2.6
50 1.6 19.2 25.9 1845 0.387 0.494 68 2.3
70 1.6 22.2 29.0 2385 0.268 0.3412 80 2
95 2.0 23.8 31.3 3025 0.193 0.2471 113 1.4
120 2.0 27.2 34.8 3675 0.153 0.1964 125 1.3
150 2.0 29.7 37.5 4330 0.124 0.1597 138 1.2
185 2.5 33.1 42.3 5635 0.0991 0.1284 191 0.82
240 2.5 37.8 47.2 7000 0.0754 0.0989 215 0.73
300 2.5 42.1 51.7 8480 0.0601 0.0801 235 0.67
400 2.5 46.9 56.8 10390 0.047 0.0641 265 0.59

*Circular conductor, all others are shaped conductors

Prysmian Joints Cleats Cables Terminations

Three Core 6943LSH cables

Low Smoke Zero Halogen

Nominal Area of Conductor (sqmm) Armour Wire Diameter (mm) Approx Diameter Under Armour (mm) Approx Overall Diameter (mm) Approx Cable Weight (kg/km) Maximum Conductor Resistance Nominal Area of Armour (sqmm) Maximum Armour Resistance at 20ºC (Ω/km)
DC at 20ºC (Ω/km) AC at 90ºC (Ω/km)
1.5* 0.9 7.4 11.2 265 12.1 15.428 16 9.5
2.5* 0.9 8.7 12.7 340 7.41 9.448 19 8.2
4* 0.9 9.9 13.9 420 4.61 5.878 20 7.5
6* 0.9 11.1 15.1 510 3.08 3.927 23 6.7
10* 1.25 12.8 17.7 780 1.83 2.333 39 4
16* 1.25 15.1 20.1 1035 1.15 1.466 45 3.5
25* 1.6 18.9 25.2 1715 0.727 0.926 62 2.5
35* 1.6 21.2 27.7 2120 0.524 0.6685 68 2.3
50 1.6 22.1 28.8 2410 0.387 0.494 78 2
70 1.6 25.3 32.1 3160 0.268 0.3412 90 1.8
95 2.0 28.3 36.0 4100 0.193 0.2471 128 1.3
120 2.0 31.4 39.3 4980 0.153 0.1964 141 1.2
150 2.5 35.3 44.3 6340 0.124 0.1597 201 0.78
185 2.5 39.1 48.3 7590 0.0991 0.1284 220 0.71
240 2.5 43.9 53.5 9575 0.0754 0.0989 250 0.63
300 2.5 48.7 58.4 11585 0.0601 0.0801 269 0.58
400 2.5 54.4 64.5 14345 0.047 0.0641 304 0.52

*Circular conductor, all others are shaped conductors

Flame Retardant LV Cable

Four Core 6944LSH Cables

Low Smoke Zero Halogen

Nominal Area of Conductor (sqmm) Armour Wire Diameter (mm) Approx Diameter Under Armour (mm) Approx Overall Diameter (mm) Approx Cable Weight (kg/km) Maximum Conductor Resistance Nominal Area of Armour (sqmm) Maximum Armour Resistance at 20ºC (Ω/km)
DC at 20ºC (Ω/km) AC at 90ºC (Ω/km)
1.5* 0.9 8.4 11.9 300 12.1 15.428 17 8.8
2.5* 0.9 9.6 13.6 385 7.41 9.448 20 7.7
4* 0.9 10.9 14.9 480 4.61 5.878 22 6.8
6* 1.25 12.3 17.2 690 3.08 3.927 36 4.3
10* 1.25 14.2 19.0 920 1.83 2.333 42 3.7
16* 1.25 16.7 21.8 1240 1.15 1.466 50 3.1
25* 1.6 21.1 27.4 1990 0.727 0.926 70 2.3
35* 1.6 23.6 30.1 2475 0.524 0.6685 78 2
50 1.6 24.3 31.1 2965 0.387 0.494 90 1.8
70 2.0 28.5 36.2 4040 0.268 0.3412 131 1.2
95 2.0 32.0 39.9 5170 0.193 0.2471 147 1.1
120 2.5 35.9 44.9 6675 0.153 0.1964 206 0.76
150 2.5 39.9 49.1 7965 0.124 0.1597 230 0.68
185 2.5 44.4 53.9 9655 0.0991 0.1284 255 0.61
240 2.5 49.7 59.4 12195 0.0754 0.0989 289 0.54
300 2.5 55.2 65.3 14820 0.0601 0.0801 319 0.49
400 3.15 62.1 74.0 19200 0.047 0.0641 452 0.35

*Circular conductor, all others are shaped conductors

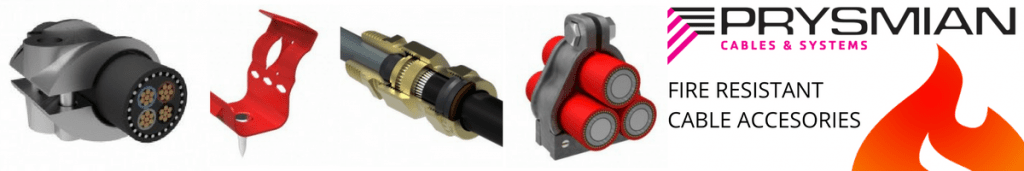

Fire Resistant Cable Glands | Fire Resistant Cable Cleats

Five Core 6945LSH cables

Low Smoke Zero Halogen

Nominal Area of Conductor (sqmm) Armour Wire Diameter (mm) Approx Diameter Under Armour (mm) Approx Overall Diameter (mm) Approx Cable Weight (kg/km) Maximum Conductor Resistance Nominal Area of Armour (sqmm) Maximum Armour Resistance at 20ºC (Ω/km)
DC at 20ºC (Ω/km) AC at 90ºC (Ω/km)
1.5* 0.9 8.9 12.9 345 12.1 15.428 19 8.2
2.5* 0.9 10.6 14.6 440 7.41 9.448 22 6.8
4* 0.9 12.0 16.3 565 4.61 5.878 25 6.2
6* 1.25 13.6 18.5 795 3.08 3.927 40 3.9
10* 1.25 15.6 20.8 1080 1.83 2.333 46 3.4
16* 1.6 18.9 24.8 1610 1.15 1.466 72 2.2
25* 1.6 22.8 29.2 2310 0.727 0.926 88 1.8
35* 1.6 25.6 32.3 2915 0.524 0.6685 100 1.6

*Circular conductor, all others are shaped conductors

Low Smoke Zero Halogen Cable

Low Smoke Zero Halogen Cable

Low Smoke Zero Halogen

London Underground LU Rail Cables, Glands & Cleats



Cable Accessories for Low Smoke Zero Halogen Cables



To maintain the circuit integrity of low smoke zero halogen (LSZH) cables, T&D distribute a complete range of Prysmian cable accessories for LSZH cables including cable glands, cable cleats, duct sealing and joints.

➡ See the complete range of Prysmian cable accessories for low, medium and high voltage cables – this includes MV HV  joints, terminations and connectors for power systems at 11kV, 33kV and 66kV.
