Prysmian Afumex 2 Bolt Cable Cleat (LSOH LSF Low Smoke Zero Halogen)
Afumex Cable Cleats

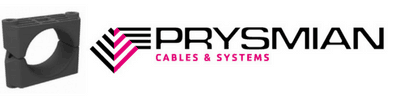

Prysmian Afumex 2 Bolt Cable Cleat are two piece, two fixing cable cleats which are LUL approved and ideal for larger cable diameters, providing cable support and protection against all weather conditions with operating temperatures -40°C to +60°C.
The plastic 2 bolt cable cleats are part of the Prysmian BICON range of cable cleats for single way cleating for Afumex Zero Halogen LSOH and Draka Saffire Low Smoke OHLS cables up to 94mm outer sheath diameter depending on short circuit protection levels.
Prysmian Afumex 2 Bolt Cable Cleat Features & Benefits
- Suitable for cleating cables with diameters 50 to 94mm
- Manufactured from LSOH Polymer
- Cable cleats designed for use with Afumex, LSOH and Saffire OHLS cables
- Low Smoke and Zero Halogen
- Sunlight (UV) and weather resistant
- Two-piece, two fixing design
- 2 bolt cable cleat with double stacking facility
- Operating temperature -40ºC to +60ºC
- Tested in accordance with BS EN 50368
- LUL APR Product ID 1958
2 Bolt Cable Cleats
Cable cleats with a 2 bolt fixing can be doubled stacked on a two-piece, double fixing design and are manufactured from LSOH polymer.
➡ Prysmian also have a range of 2 bolt plastic cable cleats that are ideal for larger cable diameters, providing cable support and protection against all weather conditions with operating temperatures -25°C to +85°C and cable diameters of 50mm to 94mm – aluminium cable cleats with same design specification are also available.
Prysmian Afumex 2 Bolt Cable Cleat Performance Data
- Type – 6.1.2 Non-Metallic
- Impact Resistance – 6.2.5 V.Heavy
- Lateral Load – 1.22 -> 3.485 kN
- Axial Load – 82 -> 110 N
- Needle Flame – > 120 seconds
BS EN 50368:2003 Cable Cleats for Electrical Installations has been withdrawn and replaced by BS EN 61914:2009.
LUL Approved (London Underground) Cable Cleats Product ID 1958 – see more LU Approved Cable Cleats.
Also from Prysmian ➡ Fire Resistant Cable Cleats | Trefoil Cable Cleats
| Prysmian Afumex 2 Bolt Cable Cleat Selection | Prysmian Afumex 2 Bolt Cable Cleat Details | ||||||
| Prysmian BICON Order Code | Cable Diameter | Dimensions (mm) | Weight (g) | ||||
| A (mm) | B | C | D | E | |||
| Min | Max | ||||||
| 374LSF01 | 50 | 58 | 89 | 102 | 45 | 80 | 174 |
| 374LSF02 | 56 | 64 | 93 | 102 | 45 | 80 | 158 |
| 374LSF03 | 62 | 70 | 98 | 114 | 45 | 92 | 174 |
| 374LSF04 | 68 | 76 | 104 | 114 | 50 | 92 | 210 |
| 374LSF05 | 74 | 82 | 110 | 126 | 50 | 104 | 254 |
| 374LSF06 | 80 | 88 | 118 | 126 | 50 | 104 | 264 |
| 374LSF07 | 86 | 94 | 121 | 136 | 60 | 114 | 326 |
Installing Afumex 2 Bolt Cable Cleat
The Afumex 2 bolt cable cleat should be mounted on suitable M10 fixings. There is no need for any channel adaptor when mounting on to a ‘C’ section channel.
➡ For further information, specification and selection details about Prysmian Afumex 2 Bolt Cable Cleat refer to the product sections below – see Prysmian Cable Cleats to view cable support clamps for LV, MV & HV cables including short-circuit protection for 11kV and 33kV cables.
View the complete Prysmian range of Single Way Cable Cleats.

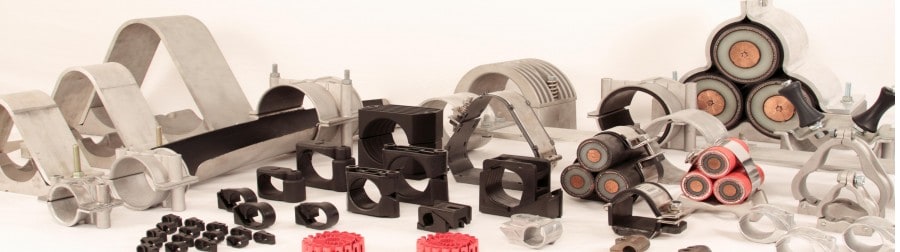

Prysmian – mv hv 11kv 33KV CABLE ACCESSORIES
Prysmian manufacture the BICON range of electrical cable accessories including cable joints, terminations, glands and cleats to enable the installation of LV-HV power cables; contact T&D to discuss your 11kV-33kV requirements for jointing, terminating, cleating and glanding of medium voltage and high voltage cables.
