Copper Rod to Earth Tape ‘A’ Clamps

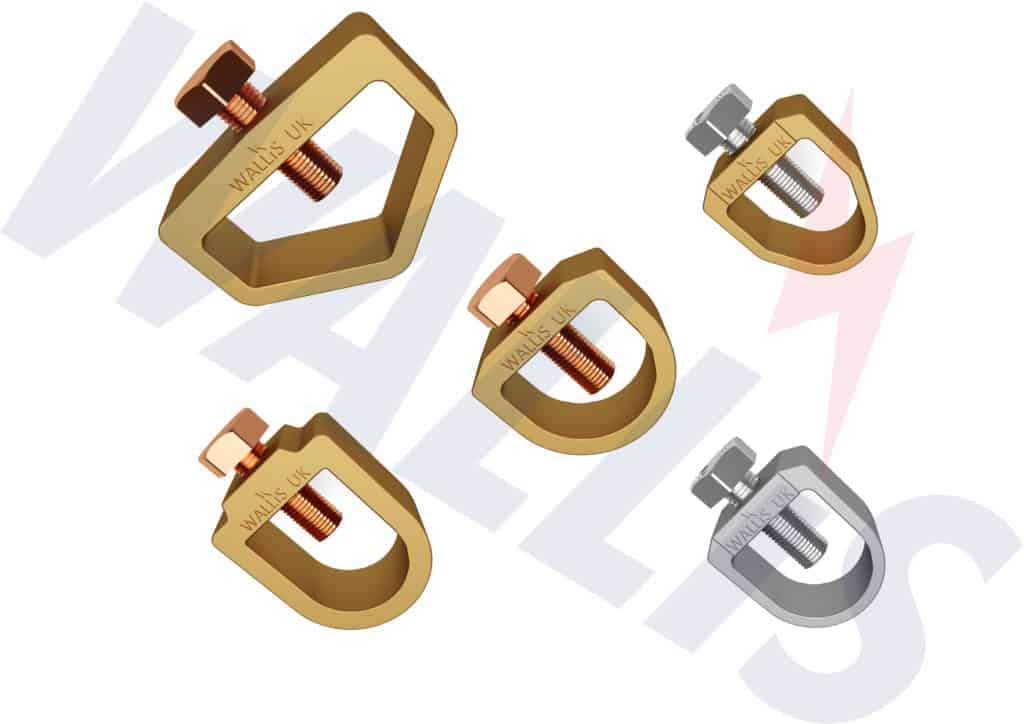

‘A’ clamps are earth clamps used for joining and clamping earth rods to different sizes of copper earth tape – the clamps are highly resistant to corrosion and mechanically strong offering a long life span and earth connection to both copperbond and solid copper type earth rods.

Most of the ‘A’ clamps are manufactured from aluminium bronze with M10 x 25mm phosphor bronze set screw (ERA1625 comes with a stainless steel grade 316 set screw).

The Wallis ERA1625A is made from aluminium with M10 x 25mm stainless steel set screw.

The aluminium version is mainly used for connecting aluminium earth tape to a puddle flange rod as part of a lightning protection system.

Earth Clamps

Selection Tables

The following tables show the full range of A type earth clamps available to connect earth rods with various shank dimensions up to 25mm diameter to copper tape conductors in a range of widths and thicknesses.

12.7mm Rods

Earth Rod Shank mm	Maximum Tape Size mm	L mm	W mm	H mm	Unit Weight kg	Pack Quantity	AN Wallis Part Number
12.7	26 x 15	43	37	17	0.10	50	ERA 1625
	32 x 15	43	45	18	0.20	25	ERA 1631
	39 x 15	44	51	22	0.25	25	ERA 1638

14.2mm Rods

Earth Rod Shank mm	Maximum Tape Size mm	L mm	W mm	H mm	Unit Weight kg	Pack Quantity	AN Wallis Part Number
14.2	26 x 14	43	37	17	0.10	50	ERA 1625
	32 x 14	43	45	18	0.20	25	ERA 1631
	39 x 14	44	51	22	0.25	25	ERA 1638
	51 x 16	47	64	20	0.21	25	ERA 1650

15.0mm Rods

Earth Rod Shank mm	Maximum Tape Size mm	L mm	W mm	H mm	Unit Weight kg	Pack Quantity	AN Wallis Part Number
15.0	26 x 13	43	37	17	0.10	50	ERA 1625
	32 x 13	43	45	18	0.20	25	ERA 1631
	39 x 13	44	51	22	0.25	25	ERA 1638
	51 x 15	47	64	20	0.21	25	ERA 1650

16.0mm Rods

Earth Rod Shank mm	Maximum Tape Size mm	L mm	W mm	H mm	Unit Weight kg	Pack Quantity	AN Wallis Part Number
16.0	26 x 12	43	37	17	0.10	50	ERA 1625
	32 x 12	43	45	18	0.20	25	ERA 1631
	39 x 12	44	51	22	0.25	25	ERA 1638
	51 x 14	47	64	20	0.21	25	ERA 1650

17.2mm Rods

Earth Rod Shank mm	Maximum Tape Size mm	L mm	W mm	H mm	Unit Weight kg	Pack Quantity	AN Wallis Part Number
17.2	26 x 11	43	37	17	0.10	50	ERA 1625
	32 x 11	43	45	18	0.20	25	ERA 1631
	39 x 11	44	51	22	0.25	25	ERA 1638

20.0mm Rods

Earth Rod Shank mm	Maximum Tape Size mm	L mm	W mm	H mm	Unit Weight kg	Pack Quantity	AN Wallis Part Number
20.0	26 x 8	43	37	17	0.10	50	ERA 1625
	32 x 8	43	45	18	0.20	25	ERA 1631
	39 x 8	44	51	22	0.25	25	ERA 1638
	51 x 10	47	64	20	0.21	25	ERA 1650
	26 x 16	55	40	25	0.20	10	ERA 2525

25mm Rods

Earth Rod Shank mm	Maximum Tape Size mm	L mm	W mm	H mm	Unit Weight kg	Pack Quantity	AN Wallis Part Number
25.0	26 x 11	55	40	25	0.20	10	ERA 2525

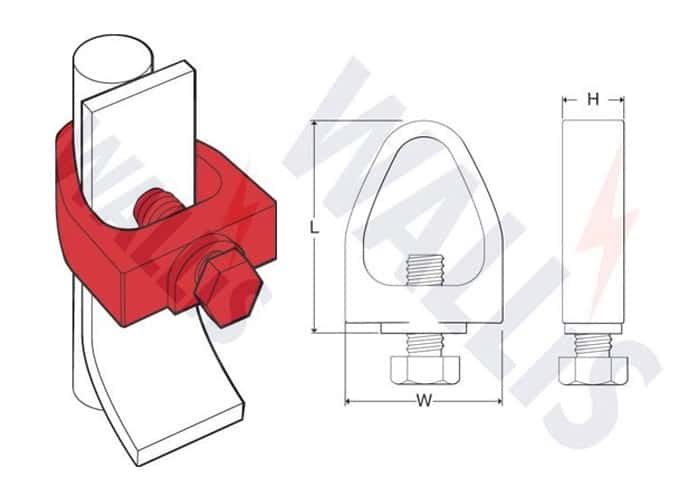

Earth Clamps – Copper Rod to Earth Tape ‘A’ Clamps – Dimensions

➡ Complete range of G type earth clamps are available for the connection of earthing rods to stranded copper conductors.
