Split Connectors Cable Lugs To Earth Rods Clamps

Split connector clamps are earth clamps that are used to connect cable lugs onto earth rods and are designed to suit a full range of copperbond, solid copper or stainless steel earth rods – assembled with an M12 x 50mm set screw and fittings (Waliis ERS010 M8 x 40mm).

Split Connectors

Selection Table

Connector for use with Copperbond Earth Rods (on rod thread)

Material: Gunmetal or Naval Brass

Nominal Earth Rod Size	Thread Size [UNC-2A]	L mm	W mm	H mm	Unit Weight kg	Pack Quantity	AN Wallis Part Number
5/8″	5/8″	42	26	26	0.22	10	ERS 016
3/4″	3/4″	50	29	29	0.31	10	ERS 020

Connector for use with Copperbond Earth Rods (on rod shank)

Material: Gunmetal or Naval Brass.

Earth Rod Shank A mm	L mm	W mm	H mm	Unit Weight kg	Pack Quantity	AN Wallis Part Number
9.5	27	18	20	0.08	10	ERS 010
14.2	42	25	25	0.27	10	ERC 24

Connector for use with Solid Copper & Stainless Steel Earth Rods (on rod shank)

Material: Gunmetal or Naval Brass.

Earth Rod Shank A mm	L mm	W mm	H mm	Unit Weight kg	Pack Quantity	AN Wallis Part Number
15	42	26	25	0.22	10	ERC 26
16	42	26	25	0.21		ERSS 16
20	50	29	29	0.28		ERSS 20

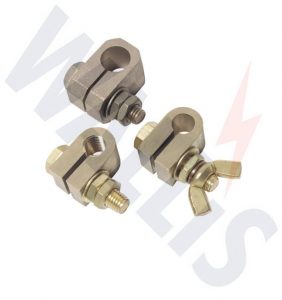

Earth Clamps - Split Connectors Cable Lugs To Earth Rods Clamps

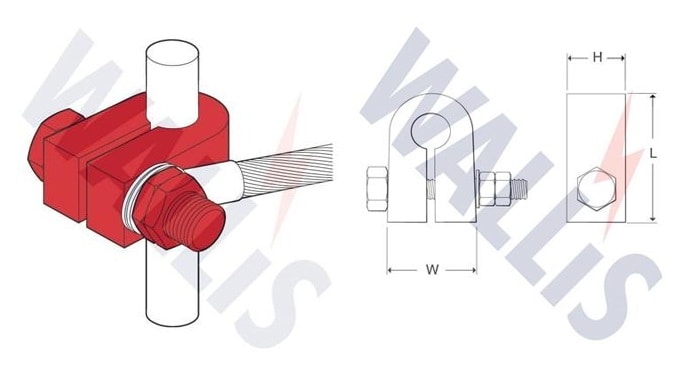

Split Connectors Cable Lugs To Earth Rods Clamps – Dimensions
