Solid Copper Earth Rods
Earth Rods – Solid Copper
Earth Rods
Copper To BS EN 13601
T&D distribute the complete range of earth rods that are designed for use where a long life span and very high corrosion resistance are required – solid copper earth rods are manufactured to BS EN13601 standard.
Solid copper earth rods are produced from solid copper bar and are internally threaded for jointing. When deep driving a solid copper earth rod the usual practice is to insert the rod into a bore hole and backfill with either Low-Resistance Earthing Compound or Bentonite.
- Solid Copper Earth Rods 5/8″ 16mm Diameter
- Solid Copper Earth Rods 3/4″ 19mm Diameter
- Solid Copper Earth Rods 1″ 25mm Diameter
Solid Copper Earth Rods
SELECTION TABLE
The table enables the selection of standard copper earth rods when specifying copper conductors for earthing and lightning protection systems.
| AN Wallis Part Number | Shank Diameter | Earth Rod Length | Thread Size | Length 1 | Unit Weight | Pack Quantity |
| ERC 112 | 15mm | 1200mm | M10 | 20mm | 1.88kg | 5 |
| ERCÂ 115 | 16mm | 1500mm | 2.66kg | |||
| ERC 118 | 1800mm | 3.20kg | ||||
| ERCÂ 124 | 2400mm | 4.28kg | ||||
| ERC 130 | 3000mm | 5.36kg | ||||
| ERC 212 | 20mm | 1200mm | 3.34kg | |||
| ERC 215 | 1500mm | 4.18kg | ||||
| ERC 218 | 1800mm | 5.03kg | ||||
| ERC 224 | 2400mm | 6.71kg | ||||
| ERC 230 | 3000mm | 8.40kg | ||||
| ERC 312 | 25mm | 1200mm | M12 | 25mm | 5.23kg | 1 |
| ERC 315 | 1500mm | 6.54kg | ||||
| ERC 318 | 1800mm | 7.86kg | ||||
| ERC 324 | 2400mm | 10.5kg | ||||
| ERC 330 | 3000mm | 13.1kg | ||||
| ERC 336 | 3600mm | 15.90kg |
Driving SPikes
These driving spikes enable solid copper earth rods to be driven easily into the ground.
| Spike D mm | Spike L mm | Earth Rod Thread Size | Used With | L1 mm | Unit Weight kg | Pack Quantity | AN Wallis Part Number |
| 16 | 42 | M10 | Copper Rods 16mm Diameter | 20 | 0.03 | 25 | ERCS 16 |
| 20 | 51 | M10 | Copper Rods 19mm Diameter | 20 | 0.06 | ERCS 20 | |
| 25 | 60 | M12 | Copper Rods 25mm Diameter | 25 | 0.10 | ERCS 25 |
Material: Steel
Driving Heads
The driving head protects the internal thread and the top of the solid copper earth rod from damage when being driven into the ground.
| Head D mm | Head L mm | Earth Rod Thread Size | Used With | L1 mm | Unit Weight kg | Pack Quantity | AN Wallis Part Number |
| 16 | 38 | M10 | Copper Rods 16mm Diameter | 20 | 0.03 | 25 | ERCD 16 |
| 20 | 41 | M10 | Copper Rods 19mm Diameter | 20 | 0.06 | ERCD 20 | |
| 25 | 45 | M12 | Copper Rods 25mm Diameter | 25 | 0.10 | ERCD 25 |
Material: Steel

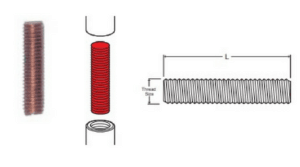

Coupling Dowels
The phosphor bronze coupling dowel is used for joining solid copper earth rods together.
| Thread Size | L mm | Unit Weight kg | Pack Quantity | AN Wallis Part Number |
| M10 | 40 | 0.02 | 25 | ERD 01 |
| M10 | 50 | 0.04 | ERD 01 |
Material: Phosphor Bronze
âž¡ Contact T&D for competitive prices and fast delivery from stock for Earth Rods – Solid Copper. Â
