Ellis NBC18-22 No Bolt Cleat 18-22mm

Ellis Cable cleats

Single Cable Cleats

Ellis NBC18-22 No Bolt Cable Cleats are manufactured from nylon and are London Underground (LUL) approved cleats for supporting and clamping power, signalling and telecommunications cables.

The cable cleat is manufactured from a high strength nylon specifically formulated to meet the London Underground 1-085 specification and due to the non-metallic design is suitable for use in arduous environments.

No Bolt Cleats form part of the Ellis Patents range of single cable cleats.

Ellis Cable Cleat NBC18-22

Technical Specification

Cable Cleat Diameter Min 18mm
Cable Cleat Diameter Max 22mm

Cable Cleat Orientation	Peak	Phase Spacing	Cleat Spacing	IEC61914
Stacked	71.7kA	75mm	300mm	Cat. 2 pass
Horizontal	101kA	110mm	300mm	Cat. 2 pass

Ellis NBC18-22 No Bolt Cleat 18-22mm

Ellis patents NBC18-22 Cleat Dimensions

Cable Cleats - LUL London Underground Approved

Width 109mm
Height 91mm
Depth 90mm
Weight 830g

SINGLE CABLE CLEAT SELECTION TABLE

Specification details for Ellis Patents No Bolt NBC18-22 cable cleat for single cable applications:

Ellis Patents Cable Cleat Part Number	Cable Ø Range mm	Ellis Patents Cable Cleat Dimensions			Fixing Hole	Weight g
		W (mm)	H (mm)	D (mm)
NBC18-22	18 – 22	109	91	90	1 x M8	830

Ellis Patents No Bolts Cable Cleats - Dimensions

Ellis NBC18-22 No Bolt Cleat 18-22mm – Dimensions

Ellis No Bolt Cleats

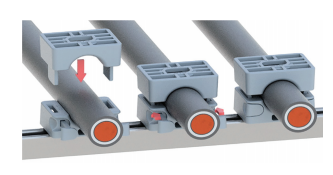

Push for locking mechanism on the keepers and the top clamp provide fast installation	The cleat can be supplied with an M8 through hole fixing option or channel twist fit feature

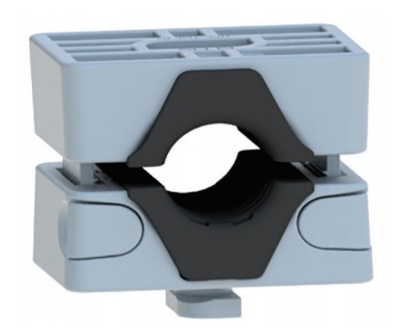

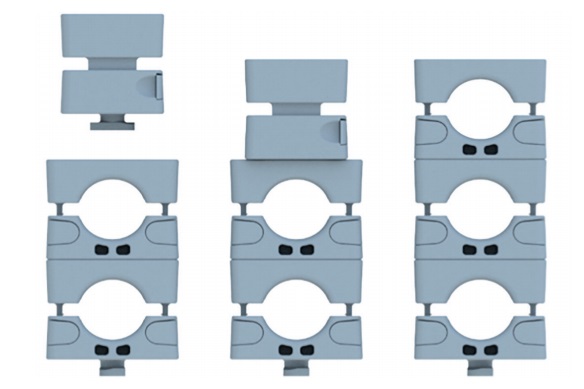

The cleat be stacked on a quarter turn feature provided by channel twist fit versions	Designed to accommodate 18-55mm single cable range take
