ENSTO SL9 Insulation Piercing Connectors
INSULATION PIERCING Connectors
Overhead Line Equipment
Low Voltage LV Overhead Lines
| ENSTO Order Code | GTIN | Main Conductor mm² | Branch Conductor mm² | d1 mm | d2 mm | Tightening Torque Nm | Weight kg | Connectors Per Pack |
| SL9.11 | 6418677403804 | Aluminium 16 – 120 | Aluminium 16 – 35 | 7 – 18 | 4.6 – 7.5 | 20 | 0.1 | 50 |
| SL9.21 | 6418677403828 | Aluminium 16 – 95 | 4.6 – 12 | 0.163 | ||||
| SL9.22 | 6418677403835 | Aluminium 16 – 95 | 4.6 – 12 | 0.15 |
See the full range of ENSTO Insulation Piercing Connectors

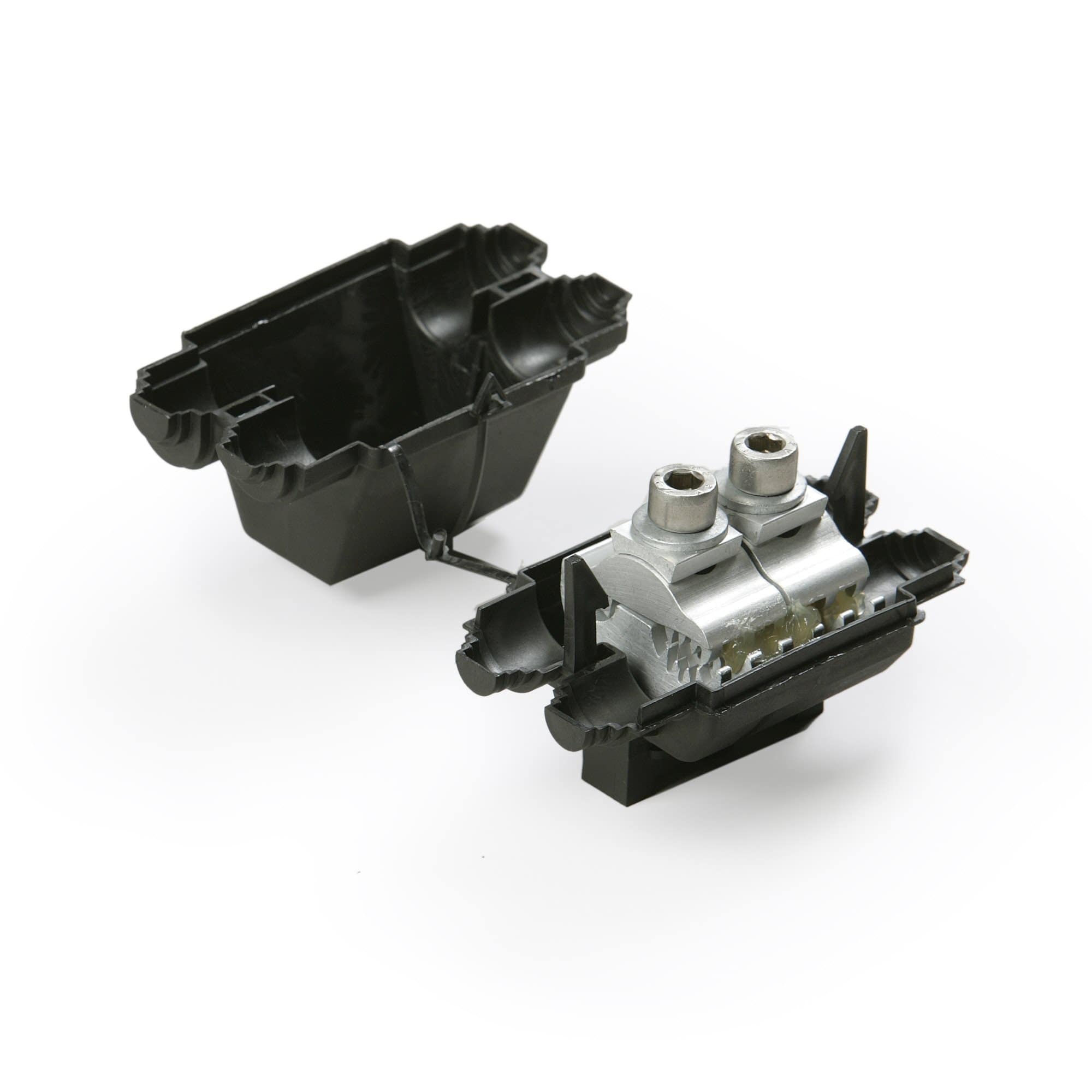

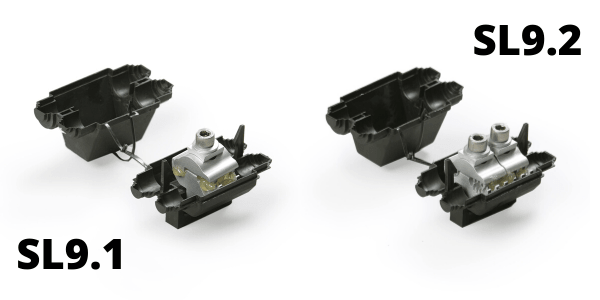

ENSTO SL9 Series are insulation piercing connectors used for aluminium to aluminium connections.
The connectors are equipped with stainless steel springs to make the installation more simple. The design enables hot line installation without peeling insulation of the conductor.
An allen type screw is required for installation.
