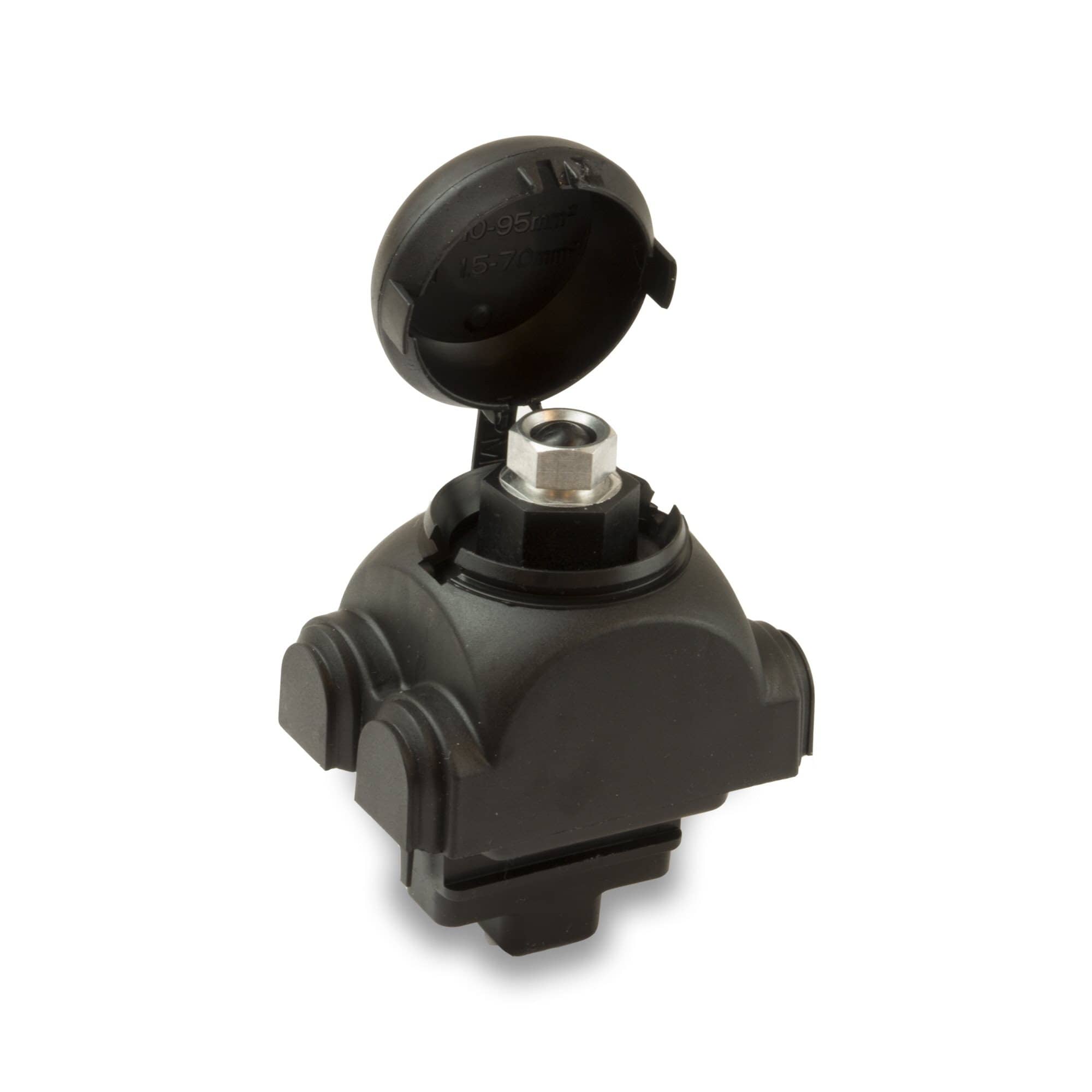

ENSTO SLIP22.1 Insulation Piercing Connectors
Insulation Piercing Connectors
Overhead Line EquipmentÂ
Low Voltage LV Overhead Lines
- ENSTO SLIP22.1
- GTIN 6418677403842
- Main Conductor: Aluminium 10 – 95 / Copper 1.5 – 70 mm²
- Branch Conductor: Aluminium 10 – 95 / Copper 1.5 – 70 mm²
- Conductor Diameter: 3 – 16 mm
- Tightening Torque: 21 – 26 Nm
- Weight: 0.12 kg
- Connectors per Pack: 50
- See the full range of ENSTO Insulation Piercing Connectors
ENSTO SLIP22.1 is an insulation piercing connector which is used for all connections of insulated aluminium and copper, main and branch conductors up to 1000Vac.
The design of these connectors enables hot line installation. Equipped with shear head screw. The shear head is insulated from the bolt and the connector body.
