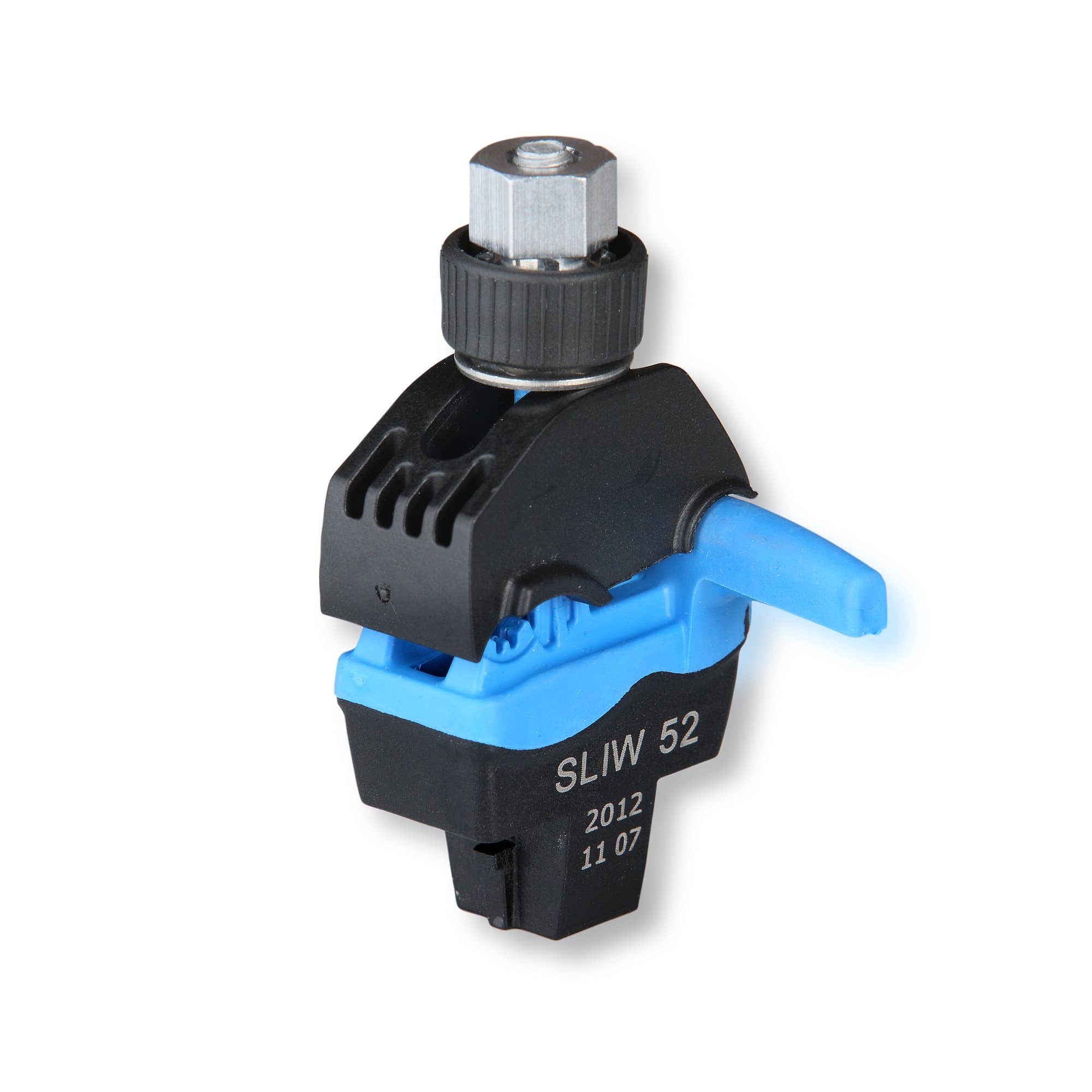

ENSTO SLIW52 Insulation Piercing Connectors
Insulation Piercing Connectors
Overhead Line Equipment
Low Voltage LV Overhead Lines
- ENSTO SLIW52
- GTIN 6438100312114
- Main Conductor: 16 – 150 mm²
- Branch Conductor: 1.5 – 16 mm²
- Conductor Diameter: 7.0 – 18.6/3 – 7.8 mm
- Weight: 0.062 kg
- Connectors per Pack: 60
- See the full range of ENSTO Insulation Piercing Connectors
ENSTO SLIW50 is an insulation piercing connector for use with insulated aluminium or copper conductors. The fully insulated bolt provides safe live overhead line (OHL) working.
Both main and branch conductor insulations are pierced with a single bolt action.
The design of the connectors enables hot line installation without peeling the insulation from the conductor. Test voltage 6 kV/50 Hz/1 min in water.
