ENSTO SLIW58 Insulation Piercing Connectors
Insulation Piercing Connectors
Overhead Line Equipment
Low Voltage LV Overhead Lines
- ENSTO SLIW58
- GTIN 6438100307387
- Main Conductor: 50 – 150 mm²
- Branch Conductor: 50 – 150 mm²
- Conductor Diameter: 11 – 18.5 mm
- Weight: 0.14 kg
- Connectors per Pack: 60
- See the full range of ENSTO Insulation Piercing Connectors

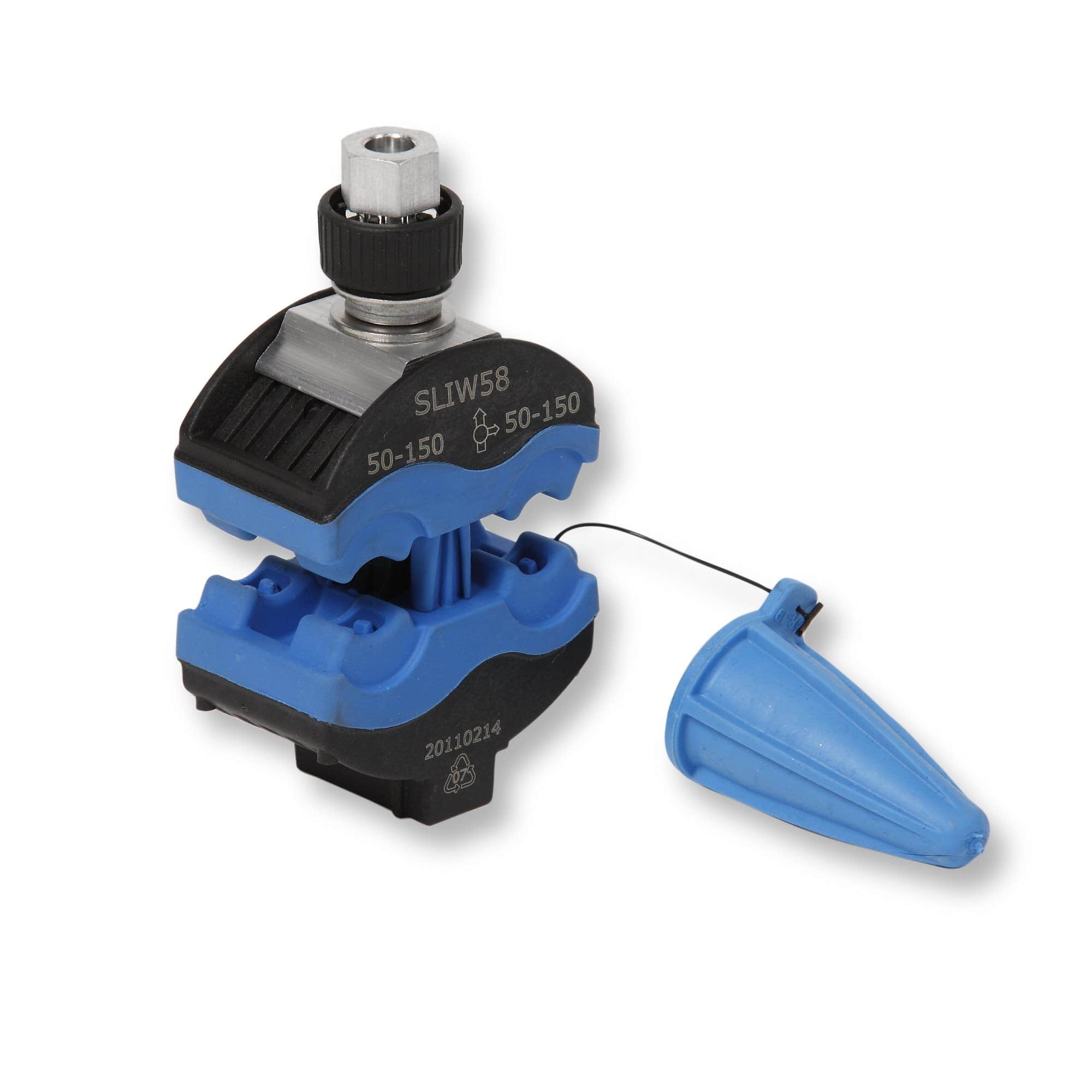

ENSTO SLIW58 is an insulation piercing connector for use with insulated aluminium or copper conductors. The fully insulated bolt provides safe live overhead line (OHL) working.
Both main and branch conductor insulations are pierced with a single bolt action.
The design of the connectors enables hot line installation without peeling the insulation from the conductor. Test voltage 6 kV/50 Hz/1 min in water.
