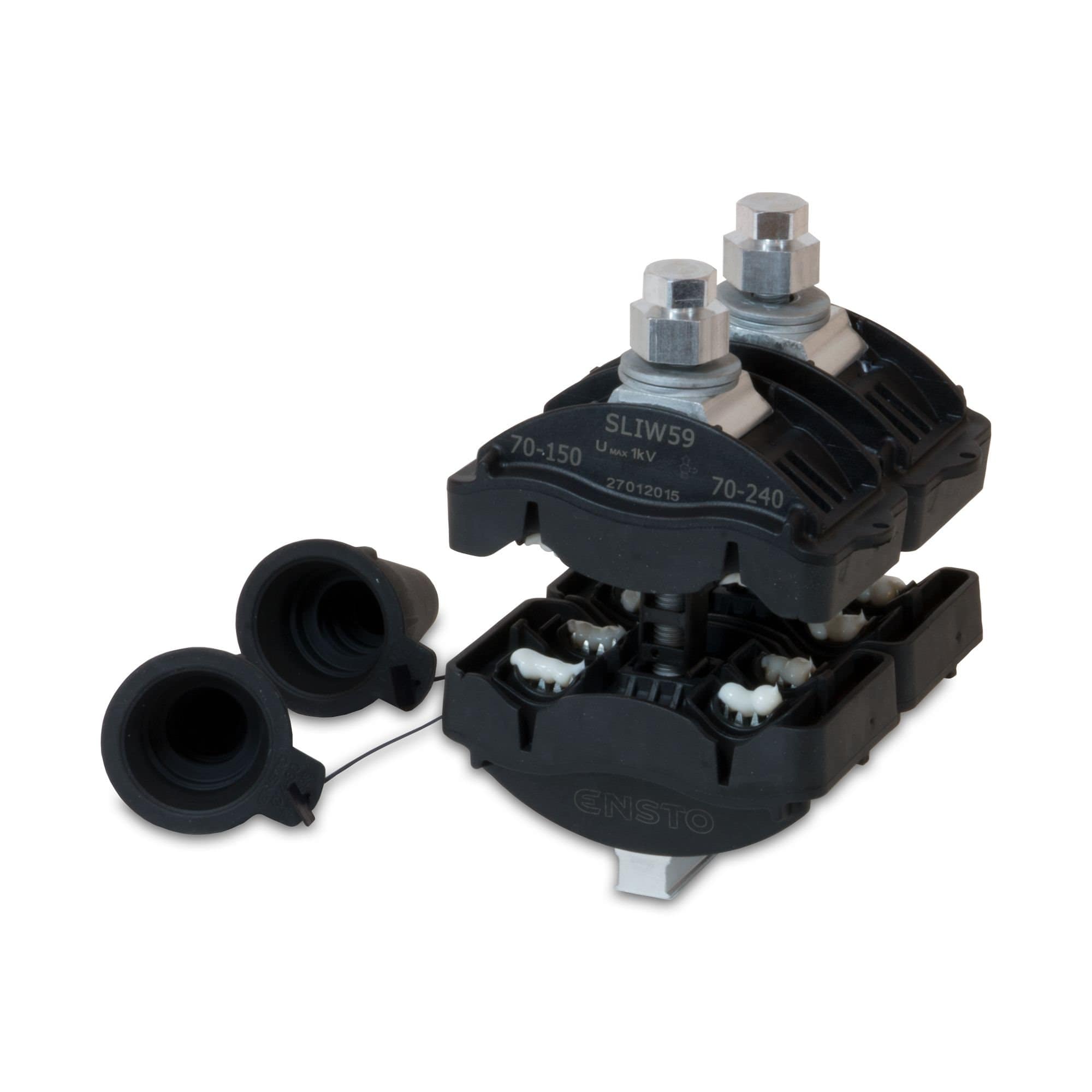

ENSTO SLIW59 Insulation Piercing Connectors
Insulation Piercing Connectors
Overhead Line EquipmentÂ
Low Voltage LV Overhead Lines
- ENSTO SLIW59
- GTIN 6438100314637
- Main Conductor: 70 – 150 mm²
- Branch Conductor: 70 – 240 mm²
- Conductor Diameter: 12 – 23 mm
- Weight: 0.51 kg
- Connectors per Pack: 12
- See the full range of ENSTO Insulation Piercing Connectors
ENSTO SLIW59 is an insulation piercing connector for use with insulated aluminium or copper conductors. LV ABC 70-150 mm² to sector cable 70-240 mm² connections. Fully insulated bolt provides safe live line working.
Connector’s design enables live line installation without peeling insulation from conductor. Test voltage 6 kV/50 Hz/1 min in water.
