ENSTO SO118.1202S Tension Clamps

Ensto

Tension Clamp

Overhead Line Equipment

Low Voltage LV Overhead Lines

  • ENSTO SO118.1202S
  • GTIN 6418677442254
  • Clamp Application: 4 x (50 – 120) mm² Conductors
  • Conductor Diameter: 10.8 – 16.7mm
  • SMFL kN: 4 x 50 mm² – 27 kN / 4 x 95 – 120 mm² 35 kN
  • Also Suspension Clamps

ENSTO SO118-1202S

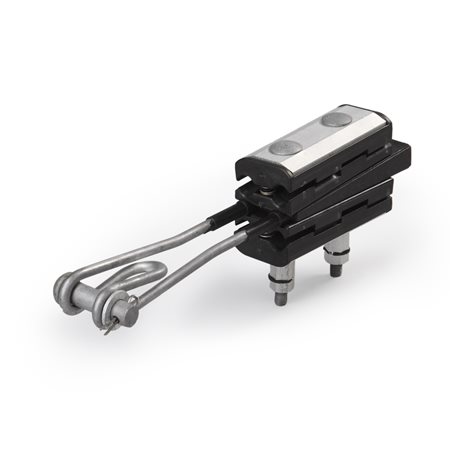

ENSTO SO118.1202S is a tension clamp for the termination of four core LV ABC cable with hook fixing. The clamps have strong springs which keep the clamp in an open position during the installation of conductors.

The clamping action functions through wedges. The body is made of weather resistant aluminium alloy and the plastic parts of special fibreglass reinforced plastic.
