ENSTO SO157.1S Tension Clamps

Ensto

Tension Clamp

Overhead Line Equipment

Low Voltage LV Overhead Lines

  • ENSTO SO157.1S
  • GTIN 6438100304652
  • Clamp Application: 2 x (16 – 35) mm² Conductors
  • Conductor Diameter: 7 – 10.2mm
  • SMFL kN: 2 x 16 mm² 2.5 kN, 2 x 25 mm² 4 kN, 2 x 35 mm² 5.6 kN
  • Also Suspension Clamps

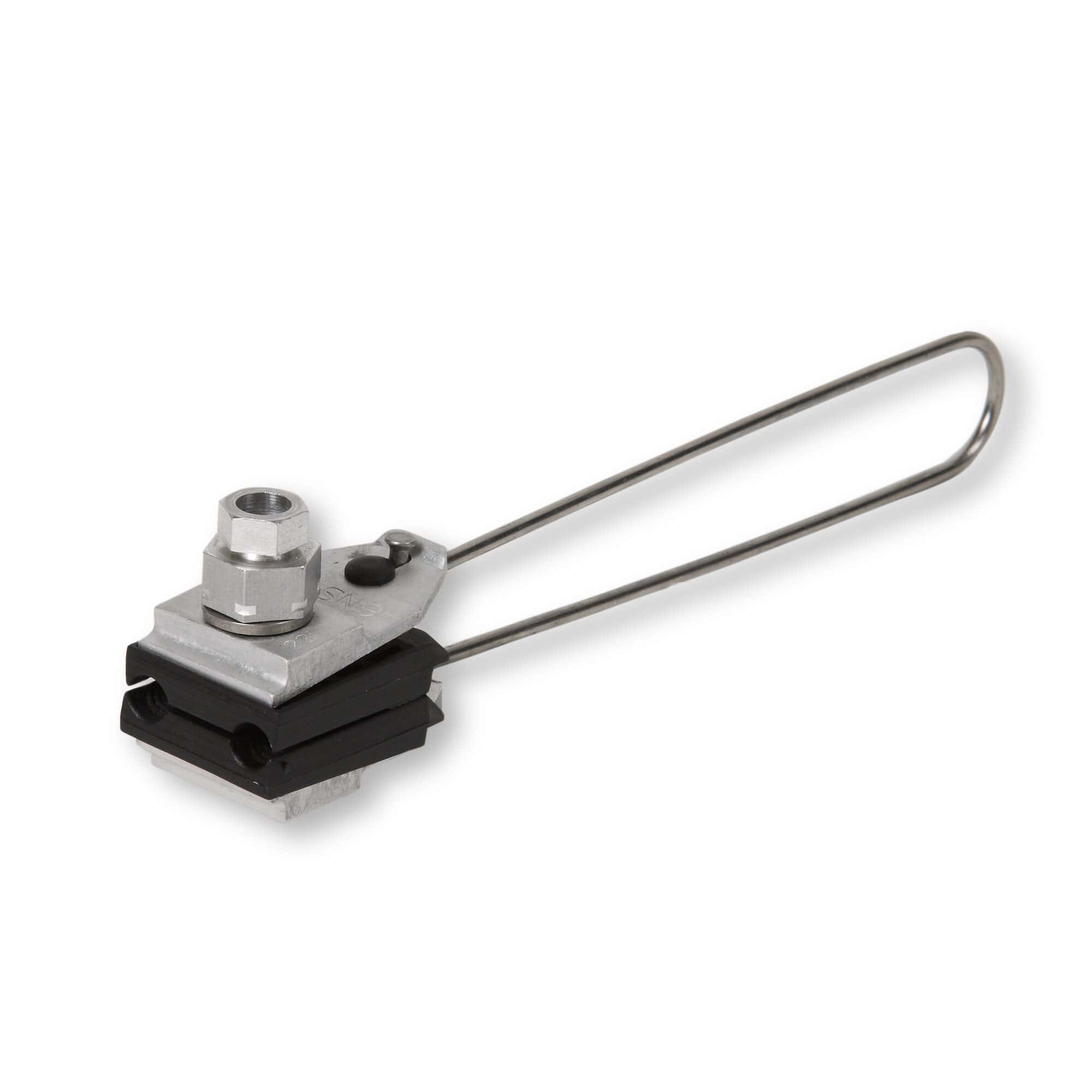

ENSTO SO157-1SENSTO SO157.1S tension clamp is used for the anchoring of a two core overhead cable to poles or walls by means of standard hooks.

The overhead line tension clamp is equipped with shearhead nuts.
