ENSTO SO80S Tension Clamps
Tension Clamp
Overhead Line Equipment
Low Voltage LV Overhead Lines
- ENSTO SO80S
- GTIN 6438100304546
- Clamp Application: 4 x (16 – 35) mm² Conductors
- Conductor Diameter: 7.0 – 10.2mm
- SMFL kN: 4 x 16 mm² 7 kN / 4 x 25 mm² 10 kN / 4 x 35 mm² 12 kN
- Also Suspension Clamps

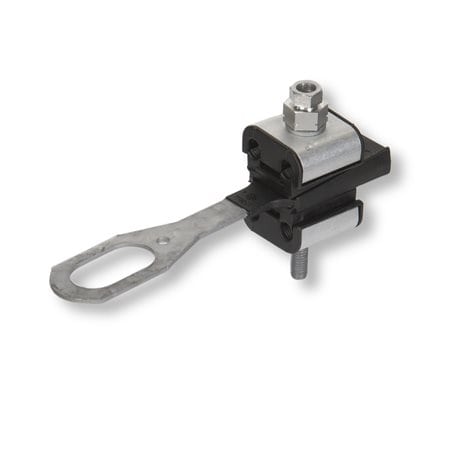

ENSTO SO80S is a tension clamp for the anchoring of four core overhead cables to poles or walls by standard hooks.
The overhead line tension clamp is equipped with a spring and shear head screw to make the installation easier.
