Insulating Gloves | Protect Against Live Working 500V to 33/36kV | Presel

Insulating Gloves

Presel

Insulating Gloves 500V to 36kV

EN 60903 Gloves

Insulating gloves, manufactured by Presel, provide personal protection against electrical shocks when working near live voltages up to 500V up to 36,000V.

The insulating gloves are designed to be used with leather over gloves to ensure mechanical protection and using thin cotton under gloves is recommended for increased comfort and good hygiene.

  • Glove Colour: beige
  • Glove Material: natural latex
  • Insulating Gloves Marking: IEC 60903
  • RC Category: resistant to acid, ozone, oil and very low temperatures
  • Available in 4 levels of protection: class 00 (500V) to class 4 (36kV)
  • Conform with IEC 60903



Glove SPECIFICATION

Presel Order Code *Insulating Gloves Size Category Voltage Max. (V) Weight (g)
AC DC
GP-00-* 00 AZC 500 750 90
GP-0-* 0 RC 1,000 1,500 200
GP-1-* 1 7,500 11,250 270
GP-2-* 2 17,000 25,500 450
GP-3-* 3 26,500 39,750 560
GP-4-* 4 36,000 54,000 800

PRESEL

INSULATING GLOVES FOR PERSONAL PROTECTION

Insulating gloves offer personal hand protection for workers against electrical shocks when working near or on live wires, cables and electrical equipment including substation switchgear and transformers – risk assessment identifies electrical shock during the jointing of cables or excavating around live cables as a potential cause of accident which can be avoided when appropriate safety precautions and gloves are worn.

Where protection against arc incident is required please see arc flash gloves with 50cal protection (Class 4) and for complete protection refer to our range of arc flash clothing.

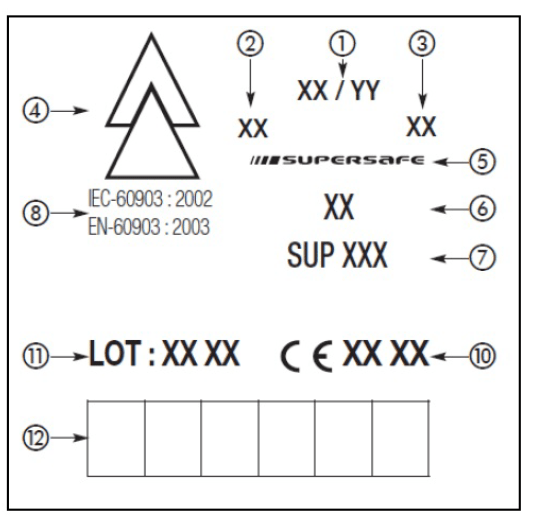

SAFETY MARKINGS

Insulating Gloves Safety Markings

key

  1. Class/category
  2. Month of manufacture
  3. Year of manufacture
  4. Double triangle for live working
  5. Brand
  6. Size
  7. CE reference
  8. Standards
  9. Product reference
  10. CE mark
  11. Traceability
  12. Area to mark the date of the 1st use or retest

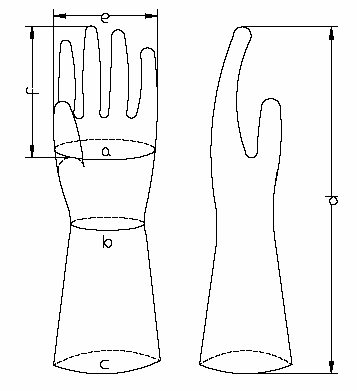

Gloves Dimensions & Sizing

Insulating Gloves Dimensions & Sizing

Insulating Gloves Dimensions (mm)
Presel Order Code Size a b c d e f Max. Thickness
GP-00-9 9 235 230 340 360 100 110 1.10
GP-00-10 10 255 240 350 360 110 115 1.10
GP-0-9 9 235 230 340 360 100 110 1.60
GP-0-10 10 255 240 350 360 110 115 1.60
GP-1-9 9 235 230 340 360 100 110 2.10
GP-1-10 10 255 240 350 360 110 115 2.10
GP-2-9 9 235 230 340 360 100 110 2.90
GP-2-10 10 255 240 350 360 110 115 2.90
GP-3-9 9 235 230 340 360 100 110 3.50
GP-3-10 10 255 240 350 360 110 115 3.50
GP-3-11 11 280 255 360 360 125 120 3.50
GP-4-10 10 255 240 350 410 110 115 4.20
GP-4-11 11 280 255 360 410 125 120 4.20
Storage & Inspection Of Insulating Gloves
  • Gloves should be stored in their container or package. Care should always be taken to ensure that gloves are not compressed, folded or stored in proximity to steam pipes, radiators or other sources of artificial heat. Nor should they be exposed to direct sunlight, artificial light or other source of ozone. The ambient temperature should be between 100C and 210C.
  • Insulating gloves should be examined before each use and subjected to a manually applied air test, where practicable. If either glove is thought to be unsafe, the pair should not be used and should be returned for testing.
  • Not even gloves held in storage, should be used unless they have been tested within the last six months. The tests consist of air inflation to check for air leaks, a visual inspection while pressurised, and then a routine dielectric test, in accordance with IEC 60903.
  • The test of the 1st use, and the control dates, should be marked on the gloves.
Insulating Gloves

LV, MV & HV Insulating Gloves for cable jointers, linesmen and engineers live working on underground cables and overhead lines, including 11kV-33kV medium/high voltage switchgear and substations. Contact us for Electrical Safety Equipment.
