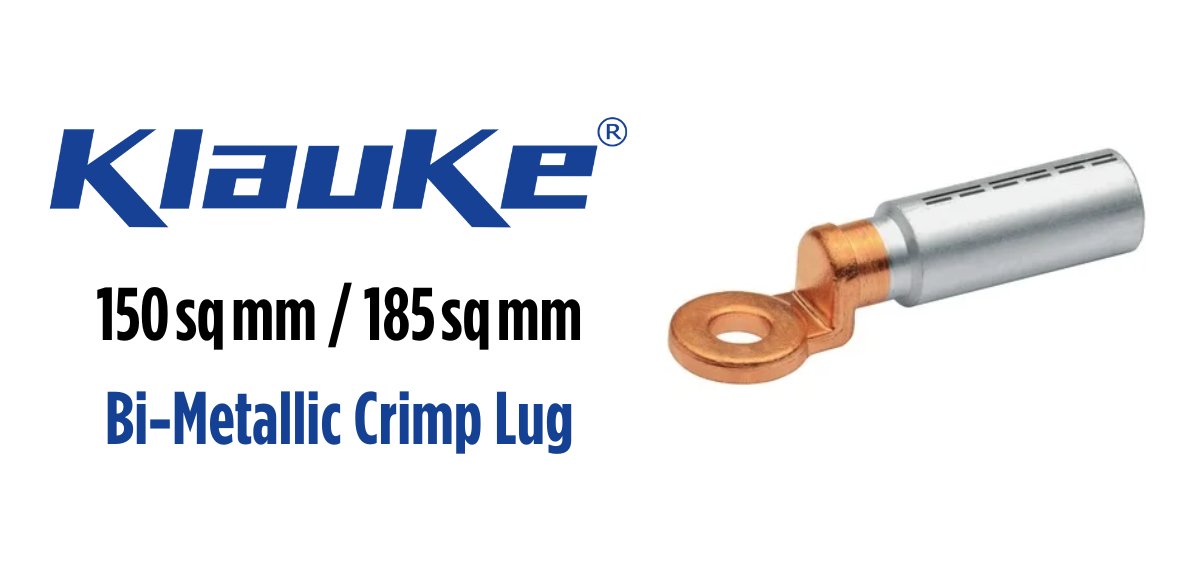

The Klauke 370R12 is a bi‑metallic Al/Cu compression cable lug, designed for terminating 150 sqmm aluminium conductors (multi‑stranded/sectors) and 185 sqmm sector-shaped conductors, with an M12 bolt interface. Engineered with safety and durability in mind Bi-Metallic Cable Crimp Lugs are ideal for corrosion‑sensitive environments due to its barrier design and copper palm.

Cable Lugs & Connectors

Explore the complete range of cable lugs and connectors for jointing and terminating cables, and for connecting conductors into low, medium, and high voltage switchgear, control panels, and transformers — using either compression (crimping) or mechanical shearbolt (“snap-off”) technology.

Key Features

  • Effective Bi‑Metal Design: Aluminium tube meets solid copper palm for reliable Al‑to‑Cu connection in damp or outdoor settings. Grease‑filled contact zone resists corrosion
  • Standards‑Compliant Build: Complies with DIN 46329 and EN 60228 / EN 50182 for non‑tension Al conductor terminations
  • Optimised Crimping: Internal chamfer for smooth conductor insertion, coded for Klauke tools, with visible crimp markings for quality control
  • Compact & Precise: Surface is bright (unplated), tube dimension exacting for uniform crimp performance
Klauke 370R12 Cable Lugs 150sqmm 185sqmm Bi-Metallic Crimp Lug

Klauke 370R12 Cable Lugs 150sqmm 185sqmm Bi-Metallic Crimp Lug Dimensions

Crimping Guide for Klauke 370R12 Cable Lugs

To ensure a safe and electrically reliable termination, the Klauke 370R12 cable lug must be crimped using the correct tools, dies, and method. This bi-metallic lug is suitable for both 150 sqmm and 185sqmm cables and is designed for use with M12 studs.

Recommended Cable Crimping Tools

  • Klauke EK120/42 – Battery-operated hydraulic crimping tool
  • Klauke HK60 – Manual hydraulic tool (for smaller volumes)

Die Selection

Click to view crimping table
Cable Size Die Code Number of Crimps
150sqmm 25 6 (Aluminium 7mm) / 3 (Aluminium Wide)
185sqmm 25 6 (Aluminium 7mm) / 3 (Aluminium Wide)


Crimping Notes

  • Always begin crimping on the aluminium side and finish on the copper side.
  • Ensure each crimp indentation aligns with Klauke’s recommended spacing and orientation.
  • Use only Klauke-approved dies and tools to maintain compliance with DIN 46235 and IEC 61238-1.

Klauke 370R12 Cable Lugs Specification

Klauke 370R12 Specification Details
Manufacturer Klauke
Connection Bolt Diameter M12
Lug Material Copper/Aluminium
Lug Style Compression Cable Lug
Number of Crimps Aluminium [7mm] 6
Number of Crimps Aluminium [Wide] 3
a [See Image Above] 62 mm
b [See Image Above] 30 mm
Nominal Cross-Section [re/se] 185 sqmm
Nominal Cross-Section [rm/sm] 150 sqmm
Total Length 104 mm
Weight Per 100 Pieces 13.1 kg
d1 [See Image Above] 16.3 mm
d2 [See Image Above] 13 mm
d4 [See Image Above] 25 mm
