Cembre CAA cable lug connectors are manufactured from high quality aluminium and are commonly used to connect and terminate AC or DC type solar cables into terminal blocks onto switchgear or transformers to enable energisation of electrical equipment on Solar & Photovoltaic (PV) projects.
The lug barrel of Cembre CAA Bi-Metallic Cable Lugs are friction welded to the palm therefore achieving the best possible transition between the copper palm of the cable lug and aluminium barrel – single hole cable lugs are used to terminate and connect LV-HV cables with stranded circular aluminium conductor (Class 2) onto copper busbar in switchgear, terminal blocks, control panels and cable boxes.
Aluminium cables with solid sectoral shaped conductor (Class 1) can be terminated by pre-rounding of the conductor before positioning over the cable prior to crimping using hydraulic and battery operated crimping tools.
Oxidation within the bi-metallic cable lug is prevented by protecting the internal surface with a specific grease with a very high dropping point.
The bi-metal cable lugs connectors are suitable for connecting LV, MV and HV stranded aluminium conductor cables including 600V (LV) and 11kV-33kV (MV) medium voltage with conductor cross section areas 10sqmm-630sqmm. The cable lugs are used to terminate and crimp stranded aluminium cables with conductors according to BS EN 60228:2005.
Bi-Metallic Cable Lugs for the Termination & Connection of Solar Cables

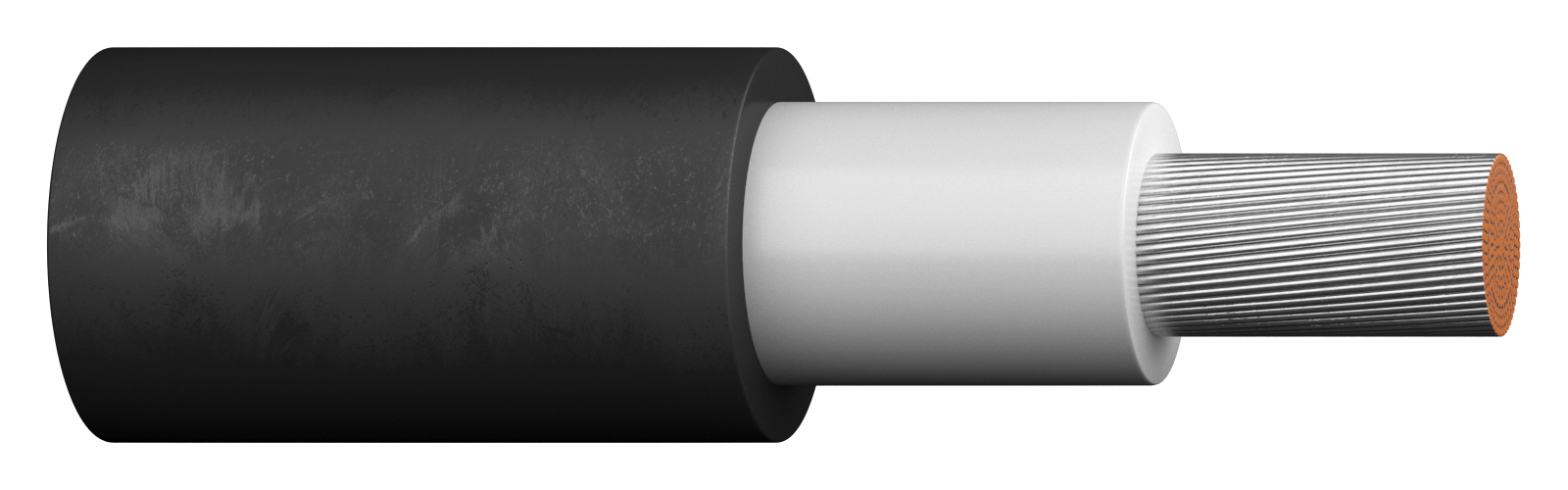

Pictured | Solarflex Helukabel 1500V DC | CAA Cable Lugs for DC Solar Cables
bi-metallic cABLE LUGS
| Cable Lug Part | Cable Lug Barrel | 1 Palm Fixing Cu ETP |
| Designation | Aluminium AL 99.5 | Copper Cu ETP CW 0041A |
| Standard Of Reference | UNI EN 573-3 : 2009 | UNI EN 13600 : 2003 |
| Electrical Resistance AT 20 °C (pS2•cm) | 2,874 | 1,724 ÷ 1,70 |
| Breaking Resistance (N/m m2) | 85 ÷ 129 | 225 |
| Stretching A5 % | 10 ÷ 23 | 35 |
Cable Lugs Connectors LV MV HV 11kV-33kV – Cembre CAA
Bi-Metallic Cable Lugs
Cembre CAA Product Specification
| Cembre Cable Lug Part Ref | Aluminium Conductor Cross Section Area of Cable (Class 2) | Die Set | Ø Stud Hole mm | Dimensions | mm | Voltages | Quantity Box/Bag |
||
| Cembre | Øi | B | L | D | LV MV HV | ||||
| CAA 10-M 12 | 10sqmm | MK16-C | 12 | 4,3 | 24,0 | 87,0 | 13,0 | 1,000V 11kV 33kV | 90/3 |
| CAA 16-M 12 | 16sqmm | MK16-C | 12 | 5,5 | 24,0 | 87,0 | 13,0 | 1,000V 11kV 33kV | 90/3 |
| CAA 25-M 12 | 25sqmm | MK16-C | 12 | 6,5 | 24,0 | 87,0 | 13,0 | 1,000V 11kV 33kV | 90/3 |
| CAA 35-M 12 | 35sqmm | MK20-C | 12 | 8,0 | 24,0 | 87,0 | 13,0 | 1,000V 11kV 33kV | 90/3 |
| CAA 35-20-M 12 | MK20-C | 12 | 8,0 | 24,0 | 87,0 | 13,0 | 1,000V 11kV 33kV | 60/3 | |
| CAA 50-M 12 | 50sqmm | MK20-C | 12 | 9,0 | 24,0 | 87,0 | 13,0 | 1,000V 11kV 33kV | 60/3 |
| CAA 70-M 12 | 70sqmm | MK20-C | 12 | 11,0 | 24,0 | 87,0 | 13,0 | 1,000V 11kV 33kV | 60/3 |
| CAA 95-M 12 | 95sqmm | MK20-C | 12 | 12,5 | 24,0 | 87,0 | 13,0 | 1,000V 11kV 33kV | 60/3 |
| CAA 120-M 12 | 120sqmm | MK25-C | 12 | 13,7 | 31,0 | 111,0 | 13,0 | 1,000V 11kV 33kV | 30/3 |
| CAA 150-M 12 | 150sqmm | MK25-C | 12 | 15,5 | 31,0 | 111,0 | 13,0 | 1,000V 11kV 33kV | 30/3 |
| CAA185-M 12 | 185sqmm | MK32L-C | 12 | 17,0 | 35,0 | 116,0 | 13,0 | 1,000V 11kV 33kV | 24/3 |
| CAA 240-M 12 | 240sqmm | MK32L-C | 12 | 19,5 | 35,0 | 116,0 | 13,0 | 1,000V 11kV 33kV | 18/3 |
| CAA 300-34 M 12 | 300sqmm | MK34L-C | 12 | 22,5 | 35,0 | 120,0 | 13,0 | 1,000V 11kV 33kV | 15/3 |
| CAA 300-34 M 16 | MK34L-C | 16 | 22,5 | 35,0 | 120,0 | 17,0 | 1,000V 11kV 33kV | 15/3 | |
| CAA 300-M 16 | MK38-3D | 16 | 23,3 | 35,0 | 152,5 | 16,5 | 1,000V 11kV 33kV | 12/3 | |
| CAA 400-M 16 | 400sqmm | MK38-3D | 16 | 26,0 | 35,0 | 152,5 | 16,5 | 1,000V 11kV 33kV | 12/3 |
| CAA 500-M 16 TNBD | 500sqmm | MK38-3D | 16 | 29,1 | 35,0 | 152,5 | 16,5 | 1,000V 11kV 33kV | 12/3 |
| CAA 630-4 M 8 | 630sqmm | MK46-3D | 8 | 32,5 | 60,0 | 192,0 | 4 x 9,0* | 1,000V 11kV 33kV | 9/3 |
*n° 4 holes with 30 mm as distance between axes
➡ See also aluminium cable lugs and copper cable lugs for 11kV-33kV medium and high voltage cable connections and terminations.

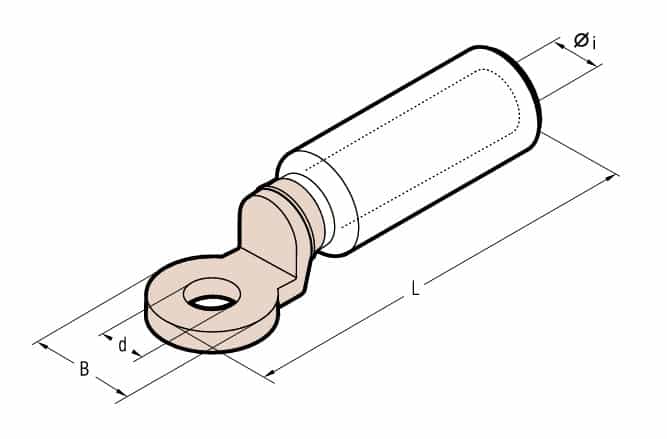

Cembre CAA – Dimensions
How To Install Crimp Connectors Onto Aluminium Conductors Using The Deep Step Indenting Method
- Unsheath and strip the aluminium conductor then shape the conductor to a round and compact configuration using the pre-rounding die set appropriate to this type of cable conductor size, shape and stranding, this includes LV, MV and HV cables
- Insert aluminium conductor into the Cembre cable lugs or connectors
- Select the relevant Cembre compression die set (MV) and associated indentor (PS130) to the connector to be crimped and then locate them carefully into the hydraulic crimping tool or presshead
- Indent the electrical connector in the sequence show below (FIG 2). Note, for a through splice connector indent the outer positions first, followed by the inner positions. For a cable lug indent the position near the cable conductor first, followed by the position near the cable lug palm.
- After indenting the crimp connector, fill the indents with the compound provided with the Cembre connectors, lugs or splices
Note: The sequence must be followed in order to obtain the correct conductor fill coefficient essential for producing a stable electrical connection to aluminium conductor on medium/high voltage cables.
Crimping Cables Using Cembre Lugs & Connectors – Deep Step Indenting
➡ T&D are Main Distributors for Cembre stocking a complete range of cable cutting and crimping tools.
Contact T&D to discuss crimping cables and solar cable lugs at MV-HV, including 11kV-33kV, to ensure correct Cembre tool, lug/splice and die set selection – visit battery crimping tools for repetitive crimping of cables without strain injury or worker fatigue.
Full range of battery cable cutting tools also available.
