Klauke ESM 50 ISM VDE Battery Hydraulic Cable Cutter – 50mm

Klauke Orange ESM 50 ISM VDE Battery-Powered Cutting Tool -

Klauke ESM 50 ISM VDE HYDRAULIC BATTERY POWERED CUTTING Tool

£POA

Request a Quote

Call Us: +44 (0)191 410 4292

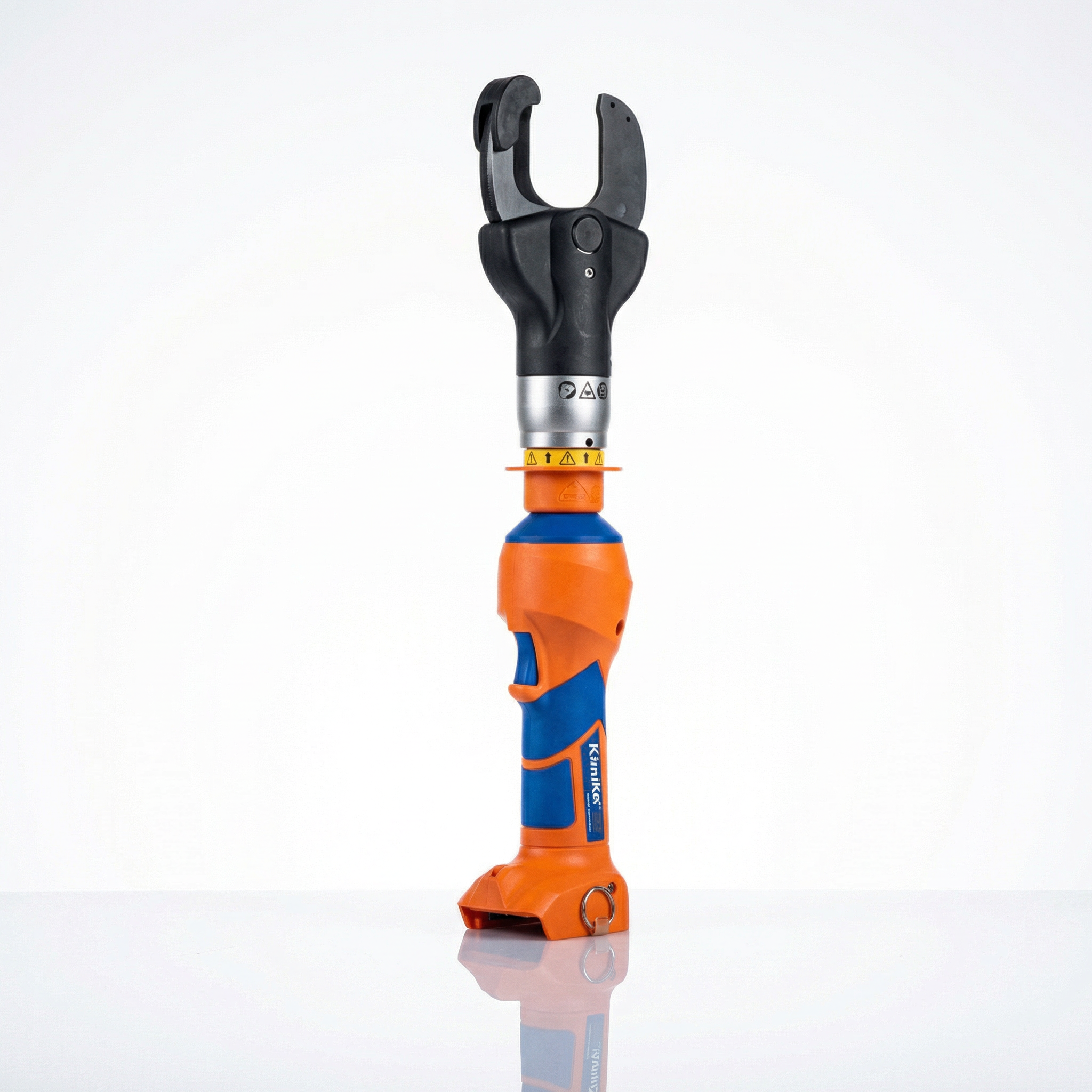

The Klauke ESM 50 ISM VDE is a battery powered hydraulic cable cutting tool designed for safe cutting of copper and aluminium cables up to 50mm diameter.

KLAUKE ESM 50 ISM VDE HYDRAULIC CUTTING TOOL

The Klauke ESM 50 ISM VDE is a battery powered hydraulic cable cutting tool designed for safe cutting of copper and aluminium cables up to 50mm diameter. Certified for VDE 1000V insulated working, the tool is suitable for live working environments and provides a reliable solution for electricians, utility engineers and contractors working on low voltage networks.

Engineered for precision and operator safety, the ESM 50 ISM VDE features a robust insulated housing and high-performance hydraulic cutting mechanism capable of delivering clean and efficient cable cuts while maintaining full compliance with VDE insulated tool standards.

The lightweight and ergonomic design ensures comfortable one-handed operation while the powerful hydraulic system provides consistent cutting performance across a wide range of copper and aluminium conductors. This makes the tool ideal for power distribution, utility maintenance, renewable energy installations and electrical contracting applications.

The integrated battery platform enables fast, cordless operation, improving productivity on site while eliminating the need for manual cutters or external hydraulic pumps.

Contact our experts to order or learn more about the Klauke ESM 50 ISM VDE and our full range of Klauke cable cutting tools, batteries and accessories.
We provide technical advice, quotations and fast delivery for both UK and export projects.

Contact Our Experts

BATTERY POWERED CUTTING TOOL – SPECIFICATIONS (BOSCH BATTERY SYSTEM – ESM 50 ISM VDE)

ESm 50 ism vde Electrical Features
Head type	Cutter open
Cutting range max.	Max 50 dia.
Cutting force	38 kN
Cutting Time	8 s to 10 s (depending on material thickness)
Battery charging time	15 Mins
Weight Including Battery	3.1 Kg
Ambient temperature	– 10 °C to 40 °C °C

BATTERY POWERED CUTTING TOOL – SPECIFICATIONS (MAKITA BATTERY SYSTEM – ESm 50 ism vde)

ESm 50 ism vde Electrical Features
Head type	Cutter Open
Cutting range max.	Max 50 dia.
Cutting force	38 kN
Cutting time	8 s to 10 s (depending on material thickness)
Battery Voltage	18 V
Battery Capacity	1.5 Ah, Li-Ion
Battery Charging Time	15 mins
Weight Including battery	3.1 kg
Ambient Temperature	-10 °C to +40 °C

HYDRAULIC CABLE CUTTING TOOL – FEATURES

Choose your battery system: Bosch or Makita

VDE certified insulated tool suitable for live working up to 1000V
Battery powered hydraulic cutting system for fast and efficient cable cutting
Cutting capacity up to Ø50mm for copper and aluminium cables
Closed cutting head design for improved safety and controlled cutting performance
Robust insulated housing designed for electrical utility and contractor applications
Simple one-button operation for safe and straightforward tool control
Ergonomic and lightweight design for comfortable handling and reduced operator fatigue
Integrated LED work light for improved visibility in low light working environments
Automatic retraction once the cutting cycle is complete
Manual retract stop (MRS) for controlled operation and faster repeat cycles
High-performance hydraulic system delivering consistent cutting force
Ideal for electrical, utility, renewable and industrial cable installation applications

CABLE CUTTING TOOL – SUITABILITY

The hydraulic cable cutting tool offers powerful, controlled cutting performance and is suitable for professional electrical installation, utility and industrial maintenance applications.

Material	Maximum Diameter	Head Type
Copper and Aluminium	50 mm	Cutter Open

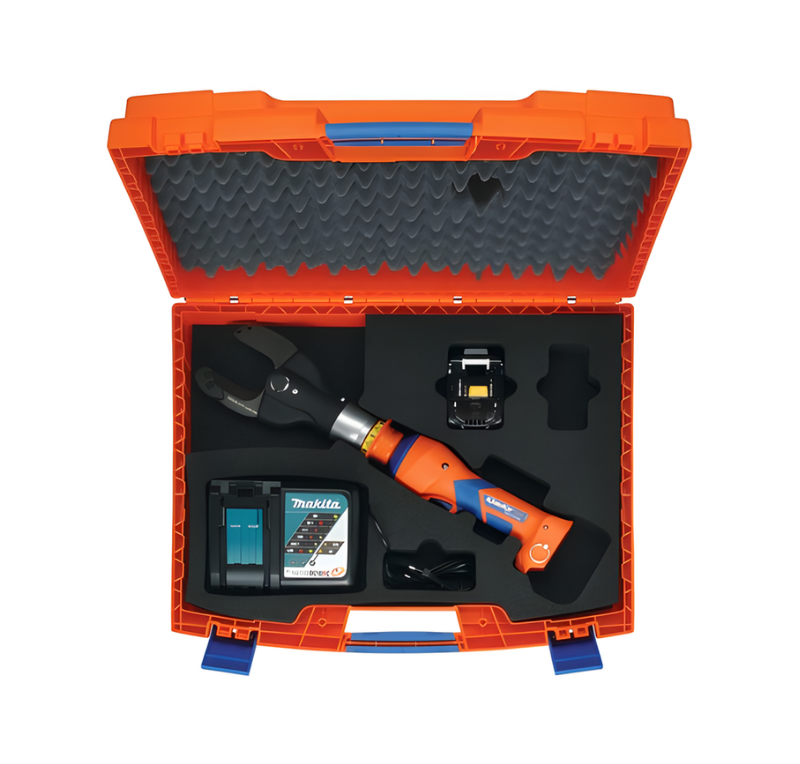

KLAUKE ESG105 – SCOPE OF DELIVERY / ACCESSORIES

Part No.	Description
RALB1EU	Bosch battery 18 V / 2.0 Ah, Li-Ion
LGLB1EU	Bosch quick-charger for 18 V Li-Ion batteries
RAL1	Makita battery 18 V / 1.5 Ah, Li-Ion
LGL1	Makita quick-charger for 18 V Li-Ion batteries

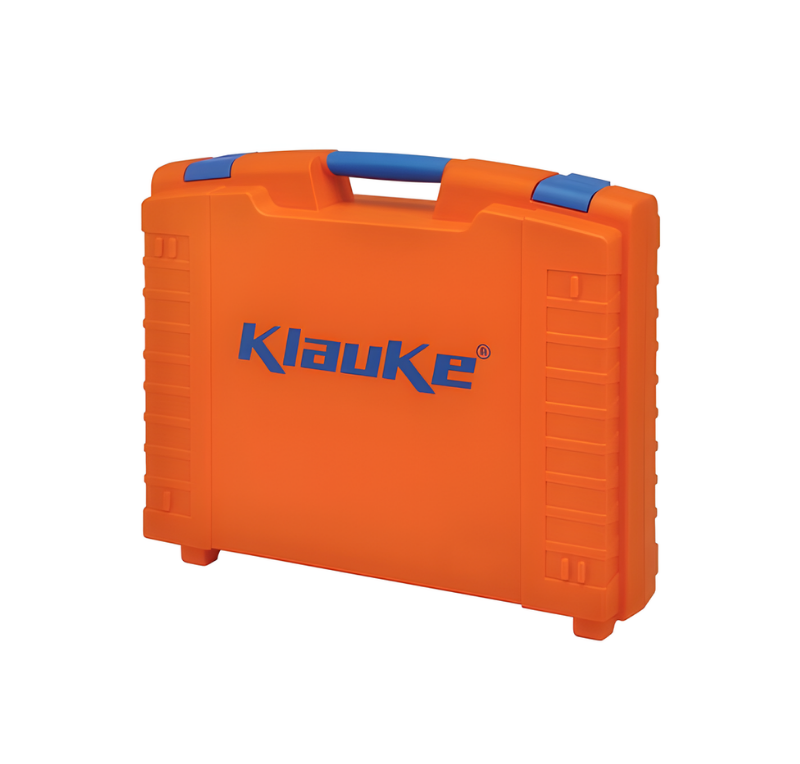

KKESM50IS	Hard plastic carrying case
RAL2	Makita battery 18 V / 3.0 Ah, Li-Ion (54 Wh)
RALB2EU	Bosch battery 18 V / 5.0 Ah, Li-Ion

Cable Tools

Should you require technical assistance to select the correct cable crimping or cable cutting tools please contact us.Thorne & Derrick are Specialist Distributors of cable tools to enable the preparation of all LV MV HV cables prior to the installation of Joints, Terminations & Connectors – this includes Klauke, Cembre, Alroc and Boddingtons cable jointing tools for removal of cable sheath, screen and insulation on 11/33kV (MV) and 66kV/132kV (HV) power cables.
