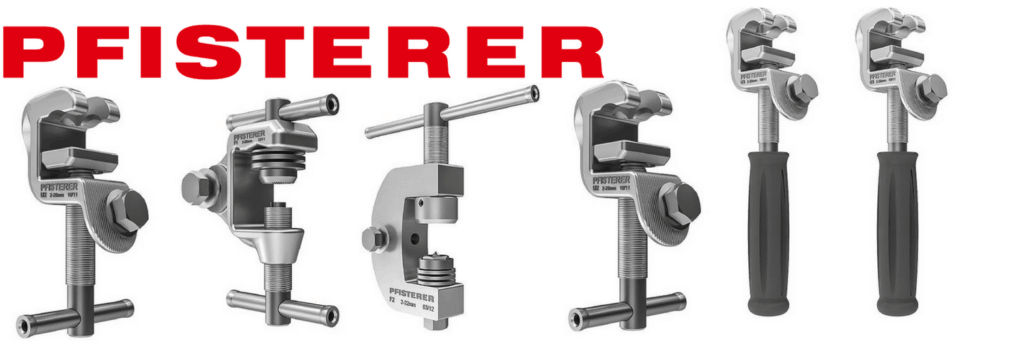

Pfisterer offers an extensive range of line clamps for earthing & short-circuiting devices. Depending on type, these Pfisterer line clamps are designed for connection to overhead lines or in switchgear.

• Line clamps available with clamping ranges from Ø 4 to 85 mm
• Line clamps available with short-circuit current carrying capacity up to 29. kA/1s
• Screw jack made of A2 stainless steel ensures reliable contact between terminal and conductor
• Compact, robust design
• Easy handling
• Connected to an earthing and short-circuiting device by an M12 screw

Line Clamps P1 for Overhead Lines

Line clamp for use on overhead lines. The tilting screw jack allows the line clamp to be attached even at places that are difficult to access. This line clamp is distinguished by its particularly easy handling.

• Swivelling spindle with swivel range ±20°
• Base made of AlSi10Mg(Fe)

Line Clamps P2 for Overhead Lines

Line clamp for use on overhead lines. The tilting screw jack allows the line clamp to be attached even at places that are difficult to access. This line clamp is distinguished by its particularly easy handling. Line clamp P2 has a larger clamping range than line clamp P1, which is similar in design.

• Swivelling spindle with swivel range ±20°
• Base made of AlSi10Mg(Fe)

Universal Line Clamps P3

Universal line clamp for various phase terminal points.

Universal Line Clamps P4

Universal line clamp for various phase terminal points.

Universal Line Clamps P5

Very short-circuit resistant line clamp for multiple applications.

Line Clamps P6 for Overhead Lines

Line clamp for the slanting insert on overhead lines.

High-Voltage Line Clamps P8

Line clamp for connection to Al and Al/St lines, tubes and line contacts.

Parallel Line Clamps P9

Line clamp for the slanting insert on high-voltage overhead lines. Due to the parallel setting of the clamping jaws, this line clamp is suitable for attaching at high positions, e.g.the cross arms of high-voltage poles.

Parallel Line Clamps P10

Line clamp for the slanting insert on high-voltage overhead lines. Due to the parallel setting of the clamping jaws, this line clamp is suitable for attaching at high positions, e.g. the cross arms of high-voltage poles.

Line Clamps P12 for Blade Contacts

Line clamp for use in all-insulated switchgear in retraction system Type R with blade contact of thickness 10, 1 and 20 mm and bead. The clamping jaws on the line clamp have fine-toothed grooves to ensure secure electrical contact and the best possible mechanical grip.
