Prysmian MPJEM-U industrial straight cable joints are used for unarmoured LV cables with copper conductors ranging from 1.5sqmm to 300sqmm and have a slim-line (“torpedo) joint shell designed to allow use with compression connectors.

MPJEM-U low voltage cable joints include low hazard isocynate free JEM resin which has extremely low viscosity and enhanced adhesion with transparent injection moulded polypropylene joint shells up to size 4 and vacuum formed clear HIPS for the larger sizes of cable joint.

T&D can offer the full range of Prysmian cable joints for low voltage industrial cable jointing applications.

Prysmian MPJEM-U Cable Joints

Technical Data

  • Low Voltage Straight Joints 600/1000 Volt Unarmoured Polymeric Insulated Cables
  • Tested & Approved to BS EN 50393 & ENA ER C81

Prysmian JEM Resin Features & Benefits

  • Easier resin mixing by the cable jointer in “Twin Pack” totally enclosed mixing in a clear laminate sachet.
  • Extremely low mix viscosity allows void free cable joint filling.
  • JEM Resin is insensitive to moisture and will cure under water.
  • Enhanced adhesion to XLPE, MDPE, PVC & lead covered cables.
  • High flash point, non-flammable liquid – no special storage or transport requirements.
  • Not classified as irritating to the skin or eyes.
  • Does not cause skin sensitisation.

CABLE JOINTS Dimensions

Prysmian Cable Joint Reference Minimum Box Entry ∅ (A) Maximum Box Entry ∅ (B) Box Length (C) Internal ∅ (D)
MPJEMJ1U 12mm 26mm 185mm 35mm
MPJEMJ2U 14mm 32mm 245mm 48mm
MPJEMJ3U 23mm 39mm 325mm 52mm
MPJEMJ4U 28mm 50mm 375mm 68mm
MPJEMJ5U 32mm 58mm 520mm 102mm
MPJEMJ6U 45mm 75mm 705mm 124mm

Note: Prysmian MPJEM-U joints are provided without connectors, compression connectors can be provided separately.

➡ Prysmian Cable LV MV HV Accessories | Cable Glands |  Cable Cleats | 11kV Terminations Heat Shrink

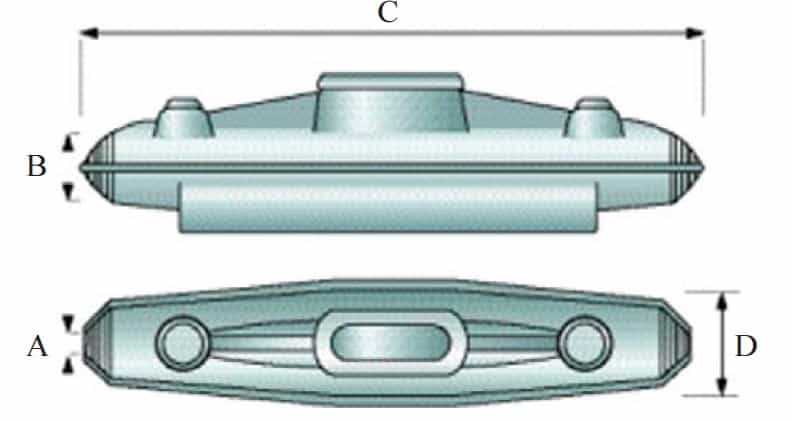

Prysmian MPJEM-U LV Cable Joints - Dimensions

Prysmian MPJEM-U LV Cable Joints – Dimensions

LOW VOLTAGE CABLE JOINTS Selection Table
Nominal Area of Conductor Two Core Ref Three Core Ref Four Core Ref Connector Ref
1.5sqmm MPJEMJ1U MPJEMJ1U MPJEMJ1U BERS
2.5sqmm MPJEMJ1U MPJEMJ1U MPJEMJ1U BEBS
4sqmm MPJEMJ1U MPJEMJ1U MPJEMJ1U BEYS
6sqmm MPJEMJ1U MPJEMJ1U MPJEMJ1U BT6CS
10sqmm MPJEMJ1U MPJEMJ1U MPJEMJ1U BT10CS
16sqmm MPJEMJ1U MPJEMJ1U MPJEMJ1U BT16CS
25sqmm MPJEMJ1U MPJEMJ1U MPJEMJ2U BT25CS
35sqmm MPJEMJ2U MPJEMJ2U MPJEMJ2U BT35CS
50sqmm MPJEMJ2U MPJEMJ2U MPJEMJ3U BT50CS
70sqmm MPJEMJ3U MPJEMJ3U MPJEMJ4U BT70CS
95sqmm MPJEMJ4U MPJEMJ4U MPJEMJ4U BT95CS
120sqmm MPJEMJ4U MPJEMJ4U MPJEMJ5U BT120CS
150sqmm MPJEMJ5U MPJEMJ5U MPJEMJ5U BT150CS
185sqmm MPJEMJ5U MPJEMJ5U MPJEMJ5U BT185CS
240sqmm MPJEMJ5U MPJEMJ5U MPJEMJ6U BT240CS
300sqmm MPJEMJ6U MPJEMJ6U MPJEMJ6U BT300CS



➡ For jointing all types of XLPE, EPR and PILC power, control and instrumentation cables in straight, branch or transition arrangement including zero halogen, fire resistant and hazardous areas see Resin Cable Joints
