Nexans 52TTGE1 Cable Terminations

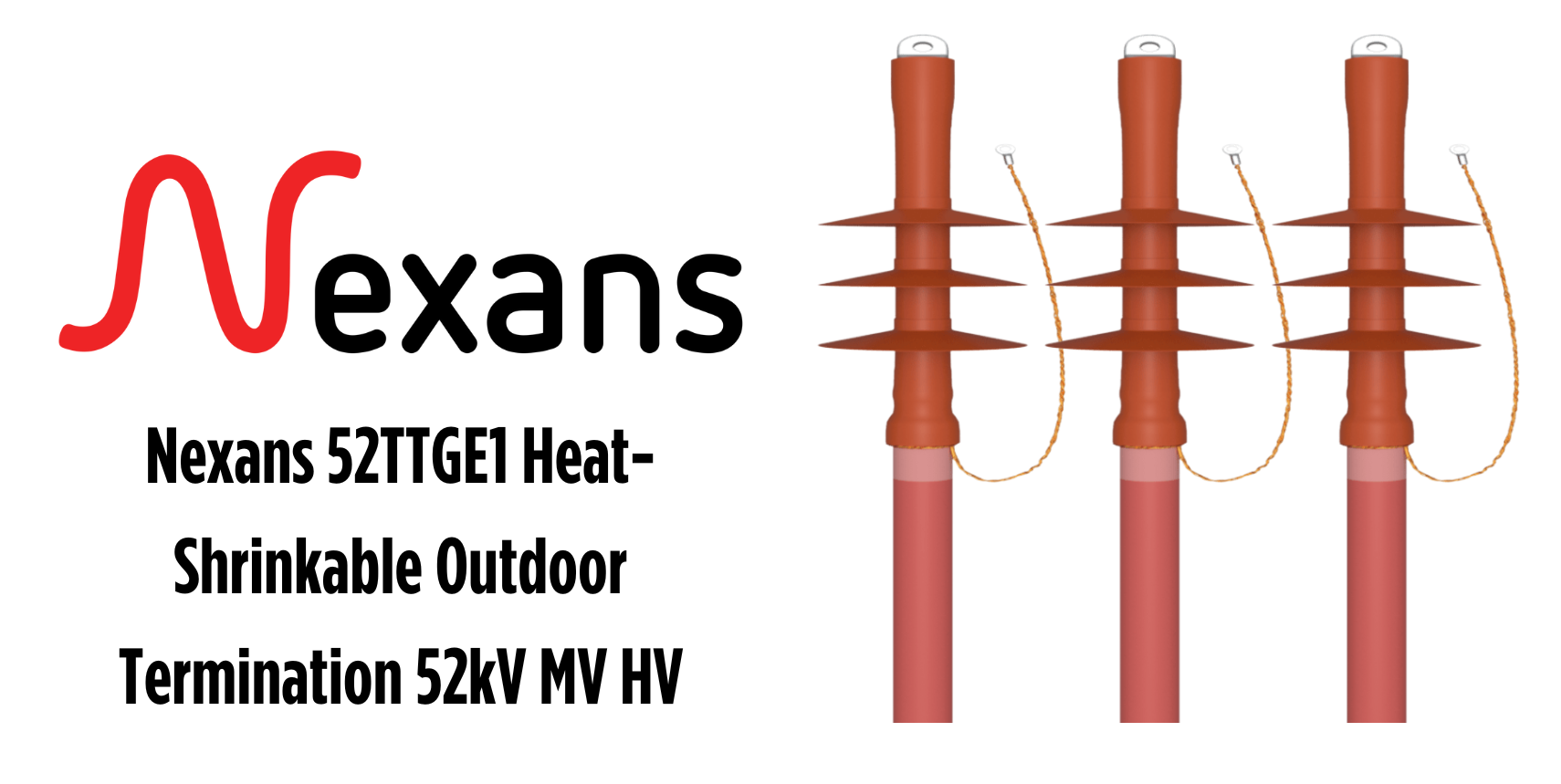

Heat-Shrinkable Outdoor Termination 52kV MV HV

Nexans 52TTGE1 is a single core heat-shrinkable cable termination for use outdoor and forming part of the Euromold 52kV Cable Accessories. Specified to terminate medium/high voltage cables in the following voltage class:

26/45 (52) kV

The 52TTGE1 heat-shrinkable outdoor terminations from Nexans are designed for plastic or EPR insulated cables with copper wire screen or copper tape screen – the cable terminations are used to connect and energise medium/high (MV HV) cables into transformers, switchgear and electrical equipment.

Thorne & Derrick hold large stocks of HV Cable Joints, Terminations & Connectors suitable for XLPE, PILC and EPR cables, in both heat shrink and cold shrink technologies, to service the medium/high voltage power cable accessory requirements of UK and international customers.

The cable terminations and connectors for the energization of medium/high (MV HV) power cables are compatible with either mechanical shearbolt and compression crimp lugs from brands including Cembre and Klauke.

Heat-Shrinkable Termination 52kV MV HV

Cable Termination

Characteristics

A stress control patch is applied at the screen cut of the 52kV cable termination and helps to control the field together with stress control tubing. Semi conductive tubing creates a bridge for leakage currents placed onto and covering the screen wires or earth braid.

Another layer of stress control mastic covers the top end of the semi conductive tubing. Red anti-tracking mastic is wrapped onto the top end of the tubing. The cable lug and cable outer sheath is sealed with anti-tracking mastic. Heavy wall anti-tracking tube and anti-tracking rain sheds complete the termination.

A solderless roll force spring and an earthing braid are included in the kit (type Ai). The design accommodates various conductor lugs. MC types are supplied with GPH mechanical conductor lugs. For cable with aluminium foil screen please contact T&D.

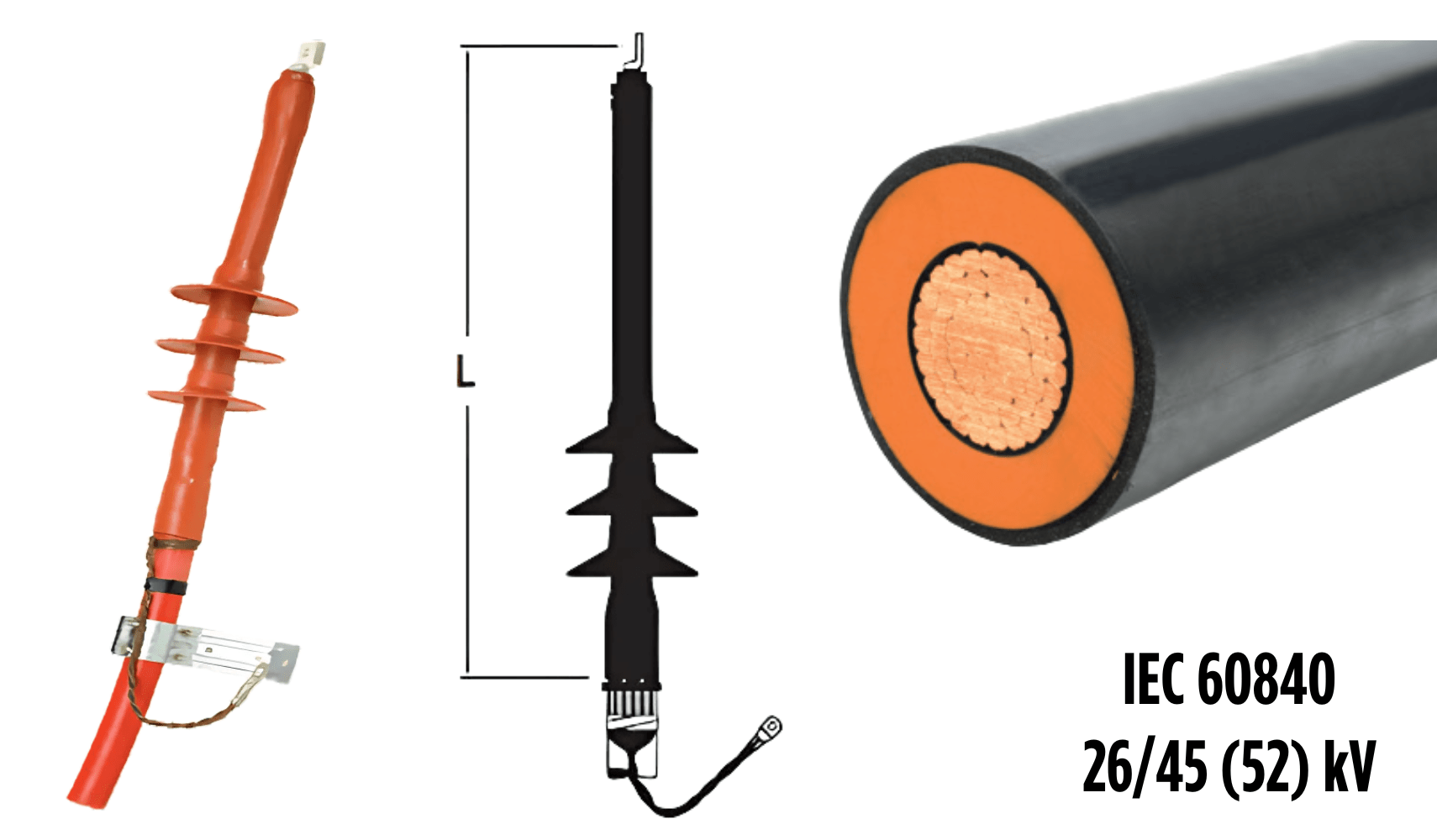

Nexans 52TTGE1 52kV MV HV

Nexans 52TTGE1 selection table

For Outdoor MV HV Cable Terminations

Voltage Um kV	Cable Termination Type	Application range (sqmm)	Diameter over core insulation (mm)	Diameter over outer sheath (mm)	L (mm)	Standard
52	52TTGE1.95i	25-95	26-32	30-44	900	Cenelec HD 629.1 IEC 60502-4
52	52TTGE1.240i	70-240	28-40	32-46	900	Cenelec HD 629.1 IEC 60502-4
52	52TTGE1.400i	185-400	32-46	36-50	900	Cenelec HD 629.1 IEC 60502-4
52	52TTGE1.630i	400-630	38-52	44-56	900	Cenelec HD 629.1 IEC 60502-4
52	52TTGE1.1200i	630-1200	46-64	52-70	900	Cenelec HD 629.1 IEC 60502-4
