Nexans Cable Joints XLPE 3 Core 11kV 24kV 33kV Cables

Nexans Cable Joints XLPE 3 Core 11kV 24kV 33kV Cables - Nexans GTS3

Nexans Cable Joints XLPE 3 Core 11kV 24kV 33kV Cables

Nexans Cable Joints

Nexans GTS3 is a heat shrink cable joint suitable for jointing MV HV three core polymeric cable (XLPE) to be directly buried underground – suitable for wire armoured medium/high voltage cables with conductor material copper or aluminium and a maximum operating voltage of 33kV. The heat shrinkable cable joint is fully screened and fully submersible.

All of the heat shrink cable joint bodies of the Nexans GTS3 range are tested for AC withstand prior to leaving the factory and meet the requirements of CENELEC HD 629.2 and IEC 60502-4.

Cable Joint Voltage Classes

  • 6/10 (12) kV
  • 6.35/11 (12) kV
  • 8.7/15 (17.5) kV
  • 12/20 (24) kV
  • 12.7/22 (24) kV
  • 18/30 (36) kV
  • 19/33 (36) kV
  • 33kV Joints Cold Shrink

NEXANS GTS3 Heat SHRINK CABLE JOINT

1. Dual wall heat shrink tube type

Nexans Cable Joints XLPE 3 Core 11kV 24kV 33kV Cables Nexans GTS3

Nexans GTS3 Heat Shrink Cable Joint Construction

2. Stress control heat shrink tube

3. Screen continuity (copper mesh)

4. Stress control mastic

5. Overall protection tube

6. Sealing mastic

7. Canister

8. Conductor connector (supplied on request)

9. Non-tracking tube (only for Nexans 36GTS3 – not shown)

NEXANS GTS3 Heat SHRINK CABLE JOINT

KIT CONTENTS

Nexans GTS3 heat shrink cable joint kit contains:

  • 1 x Stress control mastic “MNAC”
  • 1 x Sealing mastic “NGAF”
  • 1 x Black stress control tube “GT1”
  • 1 x Dual wall heat shrink tube “GT25”
  • 1 x Heat shrink protection tube “GT3”
  • 1 x Overall protection tube “GT8”
  • 1 x Cannister

The jointing kit also comprises cable jointing installation instructions, semi-conductive tape, adhesive tape, a copper braid, tinned copper mesh tape, armour continuity roll springs and a ferrule for the screen wire connection.

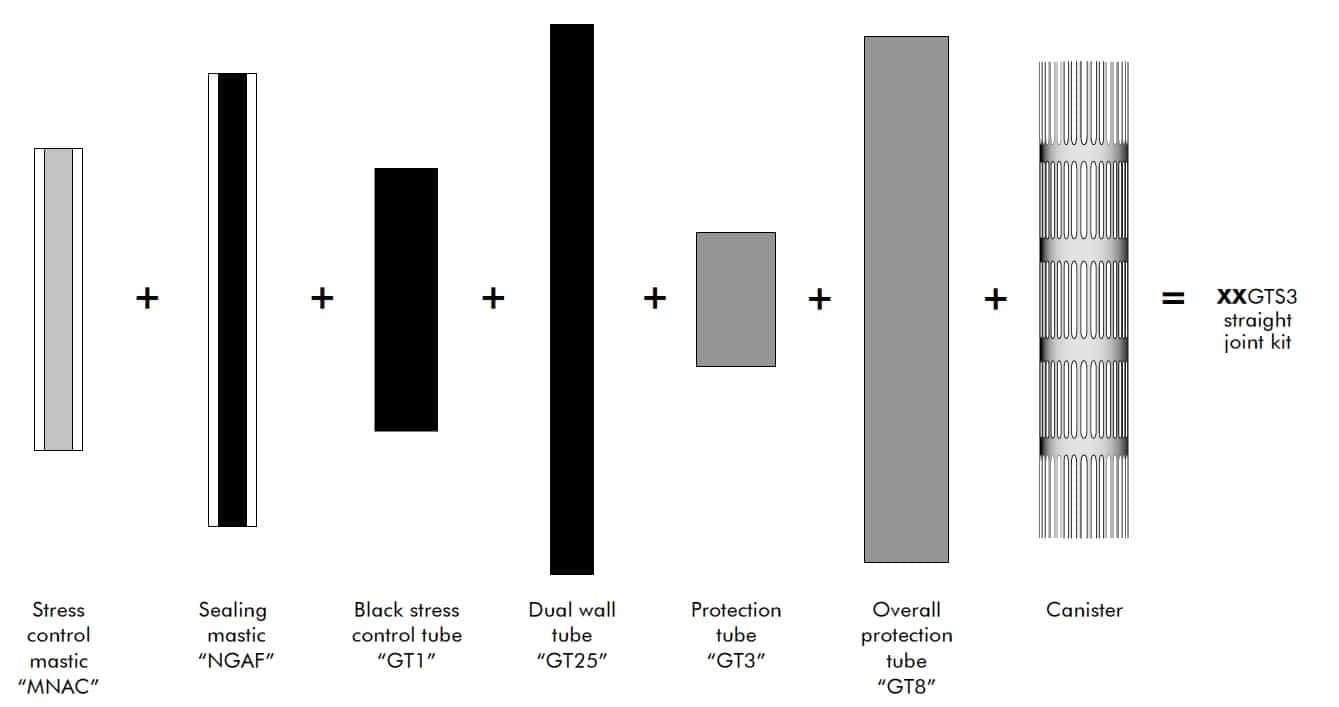

Nexans Cable Joints XLPE 3 Core 11kV 24kV 33kV Cables Nexans GTS3

Nexans GTS3 Kit Contents

Nexans Heat-Shrinkable Straight Joint Type Voltage Um (kV) Cable Joint Length “L” (mm) Conductor Sizes (sqmm)
Min Max
17GTS3 11/12 & 17.5kV 1200mm 25sqmm 400sqmm
24GTS3 24kV 1200mm 25sqmm 400sqmm
36GTS3 33kV 36kV 1400-2300mm 35sqmm 400sqmm

Nexans GTS3 Cable Joints

11kV 24kV 33kV

Nexans Cable Joint Part Reference Voltage U0/U (kV) Conductor Size Range (sqmm)
Min Max
17GTS3.50K 6/10 & 6.35/11 & 8.7/15 25 50
17GTS3.95K 6/10 & 6.35/11 & 8.7/15 50 95
17GTS3.300K 6/10 & 6.35/11 & 8.7/15 95 300
17GTS3.400K 6/10 & 6.35/11 & 8.7/15 240 400
24GTS3.50k 12/20 & 12.7/22 25 50
24GTS3.240k 12/20 & 12.7/22 50 240
24GTS3.400k 12/20 & 12.7/22 150 400
24GTS3.95k 18/30 & 19/33 35 95
24GTS3.240k 18/30 & 19/33 70 240
24GTS3.400k 18/30 & 19/33 150 400

Example: The high voltage cable is 24kV, 3 core x 120sqmm stranded aluminium with an individual copper tape screen and a steel wire armour. Order: Nexans 24GTS3.240k.

➡ See our complete range of HV Joints & Terminations including cold installed, cold shrink cable joints for MV-HV cables.
