Earthing & Short-Circuiting Kit for High Voltage Power Systems 18.7kA/s

PORTABLE EARTH KITS

Earthing kits are components that establish both direct and indirect connections, through connecting links or cables, between earthing and short-circuiting bars and the ground. These Kits range from overhead line clamps, low-voltage switchboard jumper clamps and live-end and earth-end earth clamps.

Pfisterer’s earthing and short-circuiting kits are vital while working on electrical switchgear because they ensure user safety while also safeguarding the switchgear. When earthing and connecting a temporary short-circuit-proof link to switchgear components, use only high-quality equipment.

Earthing and Short-circuiting devices have been manufactured by Pfisterer for decades, ensuring electrical safety, dependability and quality that are in accordance with IEC 61230 standards.

Earthing & Short-Circuiting Kit for High Voltage Power Systems 18.7kA/s

Thorne & Derrick are suppliers and distributors a complete range of Portable Earthing Kits enabling us to offer portable earth leads from stock.

We supply portable earthing for substations: Field Earths, Circuit Main Earths, Drain Earths and NSI24 Earthing Kits.

We also supply Transmission Earth Leads, Distribution Earth Leads and Rail Earth Leads.

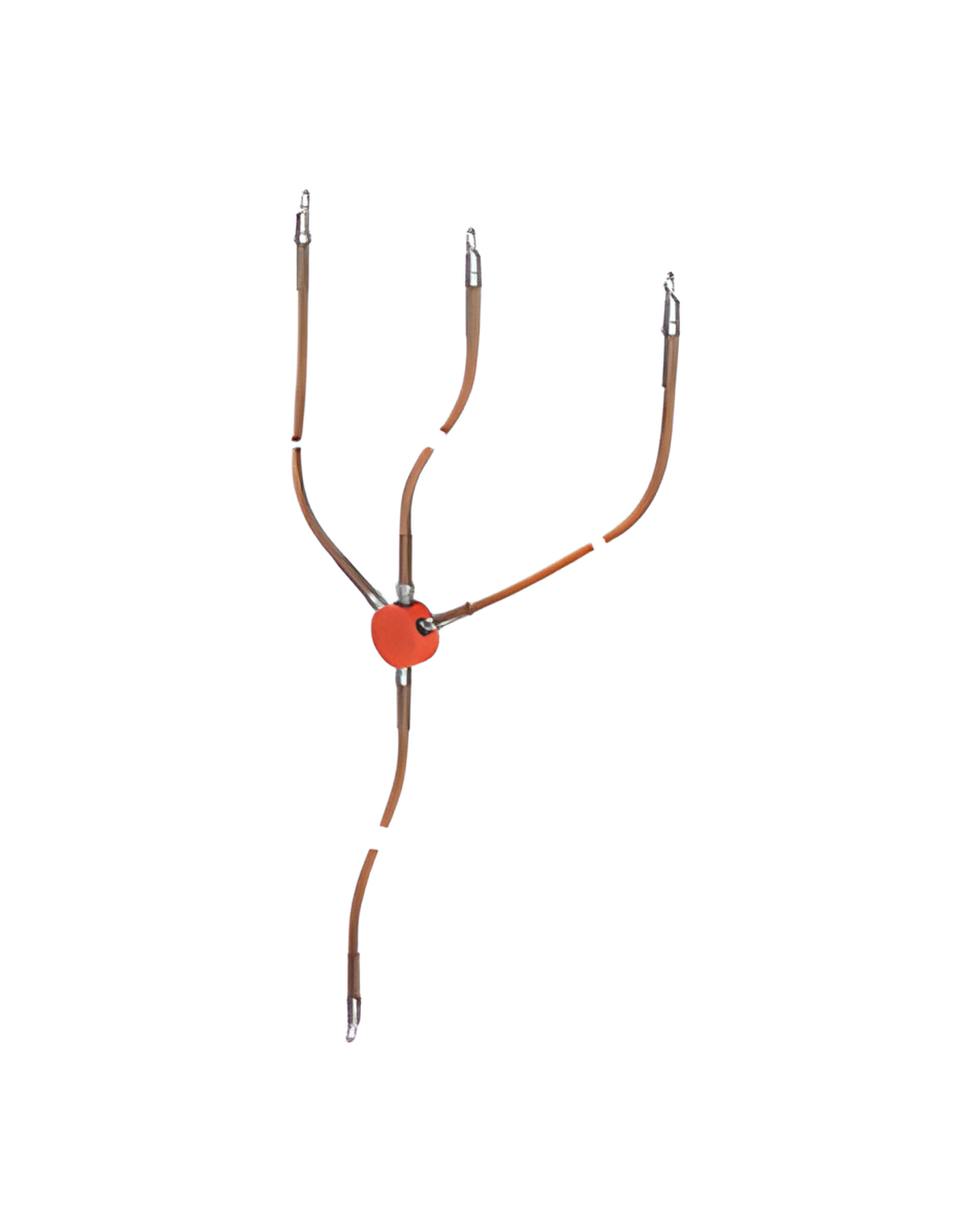

Three Pole Earth and Short Circuit Kit

Short Circuit & Portable Earthing Kits | Medium Voltage MV

Part Number – 369 203 001
Length of Earth Cable – 2,5 cm
Format – PVC Transparent/Clear
Clamp width earth terminal – 16-22
Short Circuit Cable Length – 1,5 cm
Cross Section Short Circuit Cable – 95mm² – 18,7kA/s
Cross Section Earth Cable – 35mm²

Rope Length A (m)	1
Rope Length B (m)	1
Rope Length C (m)	1
Rope Length D (m)	1

tECHNICAL dATA – Three pole earthing and short circuiting kits

Three pole earthing and short circuiting kits are used to approach electrical component connection points in an installation, earth them, and short circuit them before connecting them to the connecting points.

Pfisterer Three Pole Earthing and Short – Circuit Kits are manufactured from PVC transparent insulating materials to help safely protect users with switchgear.

Short-circuiting / Earthing Cable		Highest Permissible Short-Circuit Current (A) over time period (s)
Solid Neutral Earthing	Compensated Network (impedance neutral earthing)	2s	1s	>0.5s
25/25	25/25	3500	4900	7000
35/35	35/35	4900	6900	10000
50/50	50/25	7000	9900	14000
70/70	70/35	9800	13800	19500
95/95	95/35	13200	18700	26500
120/120	120/50	16700	23700	33500
150/150	150/50	20900	29600	42000

IEC 61230 Live Working – Portable Equipment for Earthing & Short-Circuiting

IEC 61230 is applicable to portable equipment, with or without matching connection points, used for temporary earthing rods, or earthing and short-circuiting of electrically isolated or de-energized alternating current and direct current installations, distribution and transmission networks, whether overhead or underground, low or high voltage.

Pfisterer Cable Terminations

PFISTERER dry cable terminations are proven and well-thought-out products for substations and high voltage transmission towers at voltage levels from 52kV to 170kV.

Variants include self-supporting cable terminations, flexible cable terminations and terminations with integrated surge protection. With this portfolio, custom requirements can be implemented extremely cost-effectively, and precisely matched to the respective location.
