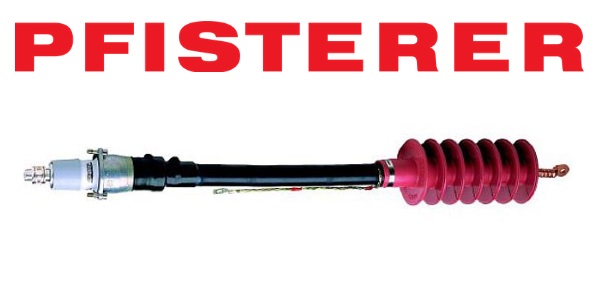

Pfisterer 810 105 110 test leads are suitable for electrical testing of CONNEX Size 1 33kV bushings integral to medium/high voltage MV-HV electrical equipment.
CONNEX 810 105 110 test leads are designed for voltage and partial discharge tests on transformers and gas-insulated switchgears.
To support the installation of medium/high voltage power cables and overhead line conductors on MV-HV substation and grid projects we stock and distribute surge arresters, bushings and CONNEX inner cone plug terminations manufactured by Pfisterer for the connection of 11kV/33kV/66kV voltage cables into SF6 gas insulated switchgear bushings (GIS).
- Pfisterer Part Number: 810 105 110
- CONNEX Test Leads Size 1
- Max. system voltage – 36kV
- Rated lightning impulse withstand voltage (BIL) – 170kV
- Rated power frequency withstand voltage – 70kA
- Rated power frequency withstand voltage (1 hr.) – 54kV
- Nominal current in the air at 30° C – 440A
- Cable cross section –Â 95sqmm
Pfisterer 810 105 110
Technical Data
| Test Leads | Bushing Size 1 | |
|---|---|---|
| Max. system voltage | Um (kV) | 36kV |
| Rated lightning impulse withstand voltage (BIL) | (kV) | 170kV |
| Rated power frequency withstand voltage | 1 min (kV) | 70kA |
| Rated power frequency withstand voltage (1 hr.) | 1h (kV) | 54kV |
| Nominal current in the air at 30° C | (A) | 440 |
| Cable cross section | sqmm | 95 |
| Dimensions | ||
| Length l1 | m | 1m |
| Length l2 | mm | 300mm |
A = Overhead line termination
B = High flexible cable
C = CONNEX cable connector
l1 = Length of the testing cable
l2 = Length of the shield wires

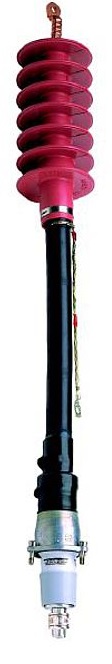

Pfisterer 810 105 110 – Test Leads
