Pfisterer 827 125 003 | Cable Testing Sockets Size 3 CONNEX Bushings

Pfisterer 827 125 003 | Cable Testing Sockets Size 3 CONNEX Bushings

Pfisterer 827 125 003 | Cable Testing Sockets Size 3 CONNEX Bushings

Pfisterer 827 125 003 cable testing sockets to be used during carrying out start-up tests on cables with MV-CONNEX separable connectors integral to medium/high voltage MV-HV electrical equipment.

The 827 125 003 cable test socket is not touchproof. After testing, the test socket must be earthed and short-circuited. The cable test socket is not suitable for partial discharge measuring.

To support the installation of medium/high voltage power cables and overhead line conductors on MV-HV substation and grid projects we stock and distribute surge arresters, bushings and CONNEX inner cone plug terminations manufactured by Pfisterer for the connection of 11kV/33kV/66kV voltage cables into SF6 gas insulated switchgear bushings (GIS).

  • Pfisterer Part Number: 827 125 003
  • CONNEX Cable Testing Sockets Size 3
  • Rated DC Withstand Voltage 15 min (kV) – 45kV
  • Rated power frequency withstand voltage 1 min (kV) – 54kV
  • Rated power frequency withstand voltage 1 hr (kV) – 45kV
  • DC voltage test – 54kV

Pfisterer 827 125 003

Technical Data

Cable Testing Sockets Bushing Size 3
Rated DC Withstand Voltage 15 min. (kV) 45kV
Rated power frequency withstand voltage 1 min (kV) 54kV
Rated power frequency withstand voltage (1 hr.) 1h (kV) 45kV
DC voltage test 15 min 6 x U0 (kV) 54kV

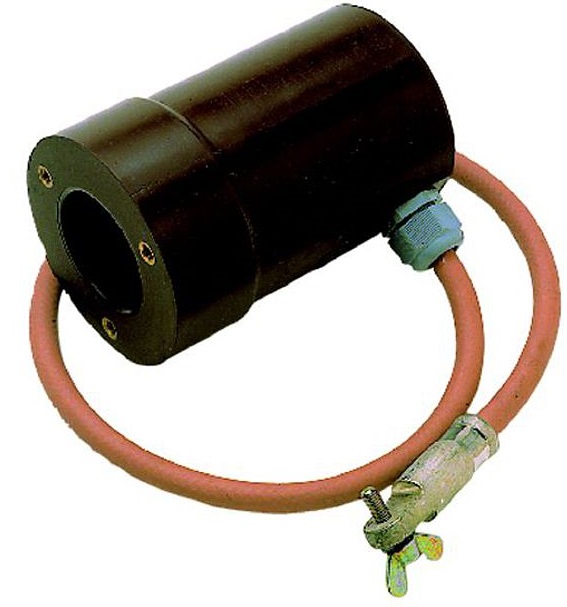

Pfisterer 827 125 003 - Cable Testing Sockets

Pfisterer 827 125 003 – Cable Testing Sockets
