Pfisterer 827 181 012 | CONNEX Earthing & Current Testing Connectors Size 2
Pfisterer 827 181 012 | CONNEX Earthing & Current Testing Connectors Size 2
CONNEX
Pfisterer 827 181 012 earthing & current testing connectors are suitable for electrical testing of CONNEX Size 2 800A bushings integral to medium/high voltage MV-HV electrical equipment.
CONNEX 827 181 012 earthing & current testing connectors are designed for the electrical and mechanical connection, the connector is inserted into a CONNEX bushing of equal size and bolted. The test lead is connected to the terminal stud with a screw.
To support the installation of medium/high voltage power cables and overhead line conductors on MV-HV substation and grid projects we stock and distribute surge arresters, bushings and CONNEX inner cone plug terminations manufactured by Pfisterer for the connection of 11kV/33kV/66kV voltage cables into SF6 gas insulated switchgear bushings (GIS).
- Pfisterer Part Number: 827 181 012
- CONNEX Earthing & Current Testing Connectors Size 2
- Max. system voltage – 2kV
- Nominal current INÂ (A) – 800Amps
- Rated short-time withstand current 1 s (kA) – 50kA
- Rated short-time withstand current 3 s (kA) – 25kA
- Test current  max. 4min./A – 2500A
Pfisterer 827 181 012
Technical Data
| Earthing & Current Testing Connectors | Bushing Size 2 | |
|---|---|---|
| Max. testing voltage | Um (kV) | 2kV |
| Nominal current | INÂ (A) | 800Amps |
| Rated short-time withstand current | 1 s (kA) | 40kA |
| Rated short-time withstand current | 3 s (kA) | 25kA |
| Test current | max. 4min./A | 2500A |

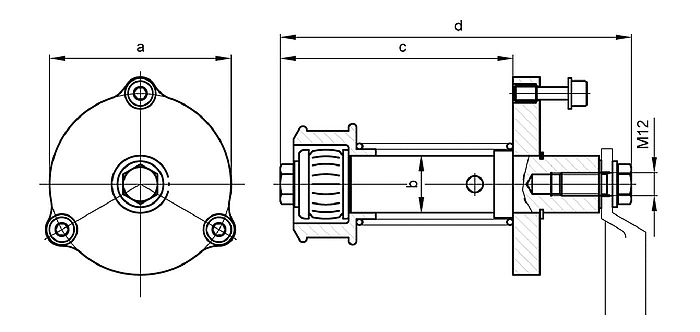

Pfisterer 827 181 012 – Dimensions
| Dimension A | a (mm) | 102 |
|---|---|---|
| Dimension B | b (mm) | 30 |
| Dimension C | c (mm) | 122 |
| Dimension D | d (mm) | 184 |
Pfisterer 827 181 012
Test Connecting Parts | Earth & Current Test Connectors | Test Leads | Cable Sockets | Dummy Plugs | Blind Caps
Pfisterer 827 181 012 CONNEX Earthing & Current Testing Connectors Size 2Download
