Pfisterer heat shrink cable breakouts are used to connect, terminate and pre-assemble CONNEX connectors into medium voltage electrical equipment and power systems – the MV CONNEX cable fittings and accessories for medium voltage (MV) networks are trusted by utilities for connection of MV cables to ensure reliable and efficient performance of gas insulated switchgear in medium voltage substations.
Pfisterer CONNEXÂ connectors are touch-proof and used to terminate and connect polymeric insulated MV-HV cables into gas insulated switchgear and electrical equipment from extensive stocks to UK and international destinations.

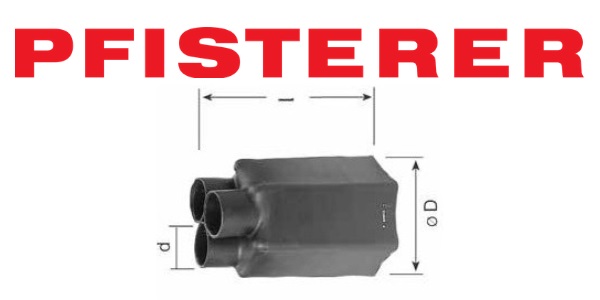

âž¡ The following table displays the range of Pfisterer Heat Shrink Cable Breakouts from the MV CONNEX range:
| Pfisterer MV CONNEX Part Number | Heat Shrink Area d (mm) | Heat Shrink Area D (mm) | Length l (mm) |
| MV Connex 020 839 025 | 31/16 | 80/36 | 195 |
| MV Connex 020 839 026 | 41/20 | 110/48 | 230 |
| MV Connex 020 839 027 | 53/27 | 140/62 | 230 |
| MV Connex 020 839 023 | 60/30 | 170/60 | 230 |
MV Connex
The MV Connex range manufactured by Pfisterer is specified for use in medium/high voltage ring main units, circuit-breaker switchgear, high voltage motors, transformers, capacitors, transducers and sealing boxes – this is supplemented by surge arresters, busbar connectors, switchgear bushings and voltage detectors to support the installation of MV CONNEX plug-type connectors.
