Pfisterer Roll Springs | Earthing Metallic & Copper Tape Screen Cables
Pfisterer Roll Springs | Earthing Metallic & Copper Tape Screen Cables

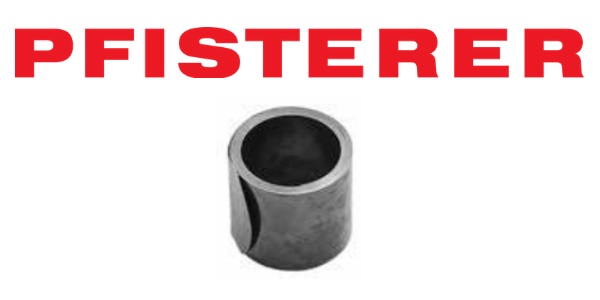

Pfisterer Roll Springs are earthing accessories for cables with metallic band shield and/or armour. Roll springs are used to connect, terminate and pre-assemble CONNEX connectors into medium voltage electrical equipment and power systems – the MV CONNEX cable fittings and accessories for medium voltage (MV) networks are trusted by utilities for connection of MV cables to ensure reliable and efficient performance of gas insulated switchgear in medium voltage substations.
Pfisterer CONNEXÂ connectors are touch-proof and used to terminate and connect polymeric insulated MV-HV cables into gas insulated switchgear and electrical equipment from extensive stocks to UK and international destinations.
âž¡ The following table displays the range of Pfisterer Roll Springs from the MV CONNEX range:
| Pfisterer MV CONNEX Part Number | Diameter Roll Springs ∅ (mm) | Width b (mm) |
| 546 078 009 | 14-22 | 16 |
| 546 078 002 | 25-40 | 13 |
| 546 078 003 | 30-39 | 25 |
| 546 078 004 | 40-60 | 25 |
| 546 078 007 | 50-75 | 30 |
| 546 078 010 | 75-100 | 30 |
MV Connex
The MV Connex range manufactured by Pfisterer is specified for use in medium/high voltage ring main units, circuit-breaker switchgear, high voltage motors, transformers, capacitors, transducers and sealing boxes – this is supplemented by surge arresters, busbar connectors, switchgear bushings and voltage detectors to support the installation of MV CONNEX plug-type connectors.
