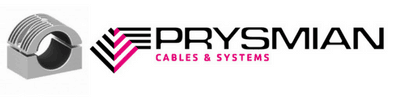

Prysmian High Voltage Cable Cleats (Aluminium 2 Bolt Cable Cleat)

Cable Cleats

High Voltage Cable Cleats are aluminium two bolt cleats designed for HV cables installed along both horizontal and vertical routes with operating temperatures -60°C to +105°C – typically used to cleat 11kV/33kV/66kV and 132kV substation cables on high voltage power cable systems.

Prysmian high voltage cable cleats are part of the Bicon range of cable cleats for cleating and clamping LV, MV and HV cables with diameters between 100mm to 159mm designed specifically to support and protect cables during short circuit fault conditions.

Prysmian High Voltage Cable Cleats Features & Benefits

• High voltage cleats suitable for cleating larger cables with diameters 100 to 159mm
• Manufactured from aluminium alloy
• Two piece, two fixing design HV cleats
• Designed to protect the cable sheaths during installation
• Plain finish – for normal industrial area or outdoor unpolluted
• Epoxy coated cleats available for harsher environments
• Cable cleats supplied with rubber liners
• Tested in accordance with BS EN 61914

2 Bolt Cable Cleats

Cable cleats with 2 bolt fixing design are available in aluminium, plastic and high specification LSOH polymer material for LSF cables.

➡ Prysmian also have a range of aluminium cable cleats with two fixing bolt cable cleats for 51-159mm cable diameters. Ideal for larger cable diameters providing cable support for all types of cable routes with operating temperatures -60°C to +105°C – high voltage cable cleats are tested to BS EN 61914.

Prysmian HIGH VOLTAGE CABLE CLEATS Performance Data

• Type – 6.1.1 Metallic
• Impact Resistance – 6.3.3 Very Heavy
• Lateral Load – 50 kN
• Axial Load – 8kN
• Needle Flame – >120 Seconds

BS EN 50368:2003 Cable Cleats for Electrical Installations has been withdrawn and replaced by BS EN 61914:2009.

Also from Prysmian ➡ Fire Resistant Cable Cleats | Trefoil Cable Cleats

➡ For further information, specification and selection details about Prysmian High Voltage Cable Cleats refer to the product sections below – see Prysmian Cable Cleats to view cable support clamps for LV, MV & HV cables including short-circuit protection for 11kV and 33kV cables.

View the complete Prysmian range of Single Way Cable Cleats.

See more: Prysmian Cable Cleats, Joints, Glands & Jointing Tools

Prysmian – mv hv 11kv 33KV CABLE ACCESSORIES

Prysmian manufacture the BICON range of electrical cable accessories including cable joints, terminations, glands and cleats to enable the installation of LV-HV power cables; contact T&D to discuss your 11kV-33kV requirements for jointing, terminating, cleating and glanding of medium voltage and high voltage cables.
