Rebar To Rebar & Copper Earth Cable Clamps

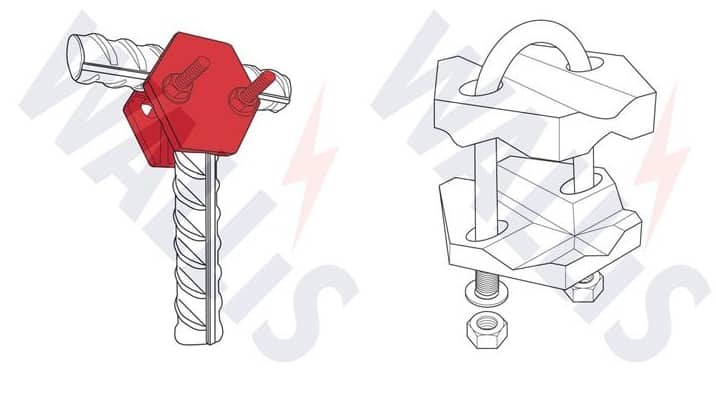

Rebar clamps are earth clamps used to connect re-bar to re-bar or re-bar to stranded cable providing a strong mechanical connection with excellent resistance to corrosion.
Rebar copper earth clamps are manufactured from Gunmetal plates with copper ‘U’ bolt.
Rebar Clamps
Selection Table
The following table enables the specification of the correct rebar clamp for 10-40mm diameter applications – should you require any further assistance with the selection of the correct type of earth clamp for jointing rod to tape, rod to cable or tape to tape please contact us.
| Maximum Re-bar A mm | Re-bar Range A mm | Unit Weight kg | Pack Quantity | AN Wallis Part Number |
| 10 | 6-10 | 0.21 | 20 | RBC 010 |
| 20 | 12-20 | 0.34 | 20 | RBC 020 |
| 25 | 20-25 | 0.21 | 10 | RBC 025 |
| 32 | 25-32 | 0.34 | 10 | RBC 032 |
| 40 | 32-40 | 0.54 | 10 | RBC 040 |
AN Wallis – Copper Earth Mats | Earth Bars | Copper Earth Plates | Earth Rods
T&D distribute full range of AN Wallis Earth Clamps for connecting earth tapes, rods, cables and conductors
Earthing & Lightning Protection for MV-HV onshore/offshore substations, high voltage electricity grids, overhead line distribution equipment, datacentres and building services.
Rebar To Rebar & Copper Earth Cable ClampsDownload
