Strip XLPE & EPR Cable Insulation (600 Volt 45 to 110 Mil) – Ripley 2×2 Plus

Ripley 2 x 2 Plus Cable Stripping Tools

Cable Stripping Tools

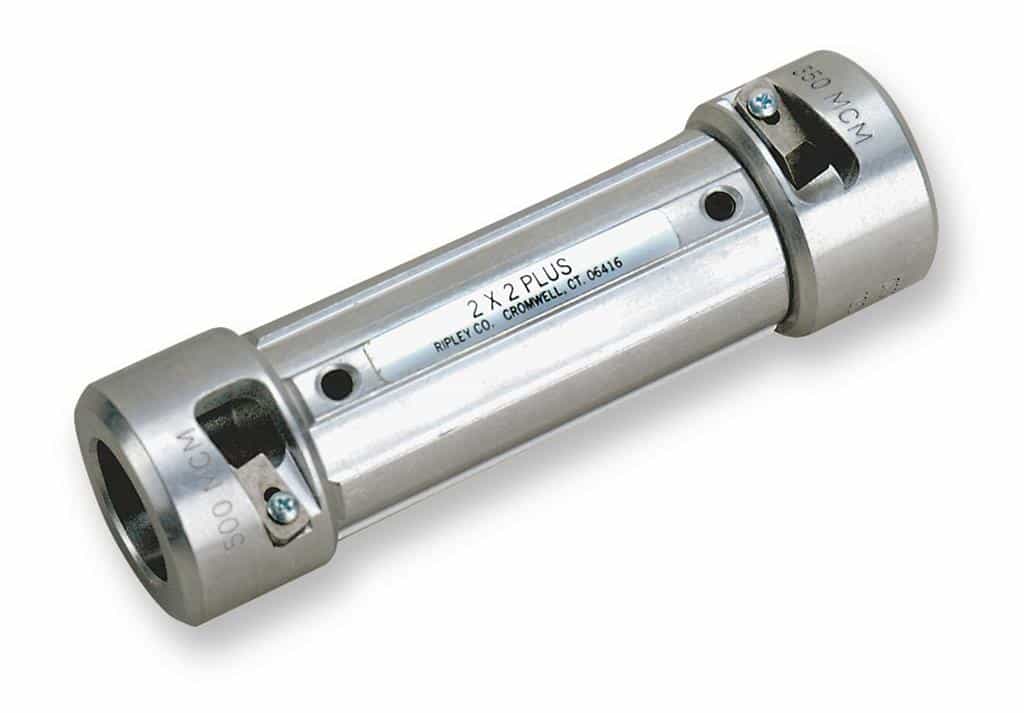

Ripley 2×2 Plus

Ripley 2×2 Plus is a cable end stripper for 600V secondary cable when splicing, jointing and terminating insulated conductors for overhead line and underground electricity distribution.

The cable end stripper can strip 45 mil to 110 mil secondary insulations and is effective, even in colder climates.

The cable end stripper has guarded blades for safety with a choice of square cut or chamfer cut both providing precision cable stripping with no conductor damage.

Ripley Cable Tools

Underground Cables or Overhead Lines – cable tools for 3.3kV, 11kV, 33kV, 66kV, 132kV and 400kV voltages



Ripley 2×2 PLUS – Cable End Stripper Specifications

  • For 600 volt secondary cable
  • Cutting heads for #6 AWG to 7500 kcmil conductors (concentric, compressed or compacted)
  • Strips 45 mil to 110 mil secondary insulations
  • Choice of square cut or chamfer cut blades
  • Strips cable quickly, even in cold climates
  • Guarded cutting blades ensure safety
  • Precise cable stripping with no conductor damage
  • Bushings change easily with hex wrench
  • Extensions available to strip additional 1.5 in. (38 mm)
  • Made in the U.S.A.
  • More: Cable Strippers Tools – Secondary Distribution
Cable Tools

This cable jointers tool is designed to strip 45 Mil to 110 Mil XLPE and EPR cable insulations. Insure that the proper cutting head (bushing) has been selected for the wire you are using. Both tools use the same bushings. See also 4×4 version.

Ripley 2×2 Plus cable tool – Ordering Information

1. Select 4 bushings (4×4) or two bushings (2×2), square or chamfer cut
2. If uncertain, please discuss sending cable samples to T&D

Ripley Model Tool Order Code Item Type Tool Length Tool Weight
2×2 Plus 36101H Tool body only 5.75″ (146mm) 8 oz (227g)

➡ T&D distribute a complete range of Utility Cable Tools for primary, secondary distribution and transmission applications – Utility Tool is a brand of Ripley for wire and cable preparation tools for power, transmission and distribution.

Ripley comprises four tool brands Cablematic, Miller, ODM and UtilityTool – these cable tools are preferred by cable engineers for the jointing, terminating, splicing and preparation of LV MV HV power, fibre-optic and overhead lines conductors.
