Ripley WS 5 End Strippers are used when splicing, jointing and terminating both HV and LV overhead power, transmission and distribution cables. The WS 5 is used for precision stripping of insulation only or insulation and semi-con simultaneously and can strip XLPE, polyethylene & EPR insulation.

The jointing tool is used by splicers and cable jointers and is ideal for primary URD cable and can be used on cable outer diameters from 6.60-32.13mm 600V to 35kV. The WS5 end stripper permits accurate pre-set stripping lengths of up to 101.60mm and a guarded cutting blade prevents injury.

Features of Ripley WS 5 Cable Stripper Tool

Precision tool engineered to strip XLPE, polyethylene & EPR insulations up to 400 mils thick from primary URD cable diameters of 0.26″ to 1.335″ (6.6 to 33.9 mm)
Provides insulation only or simultaneous insulation & semi-con stripping operations
Guarded cutting blade prevents injury & protects the blade
Bushings accommodate various insulation & semi-con diameters for medium voltage cables
Compatible with the with the SW 2 Series Ratchet Wrench for greater leverage
Stop bar measurements are available in customary or metric units

Ripley Cable Tools | Jointing, Splicing & Cable Preparation Tools for Underground Cables & Overhead Line Conductors | LV MV HV

RIPLEY WS5 CABLE INSULATION END STRIPPER

SPECIFICATIONS

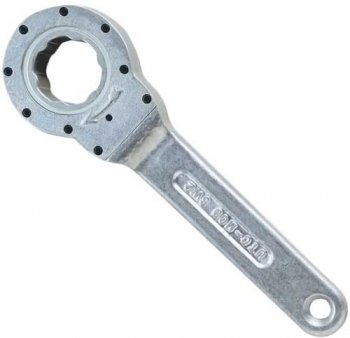

Ripley SW2 Ratchet Wrench

For 600 volt to 35 KV cables
260 to 1.265 in (6.60 to 32.13 mm) cable O.D
Strips XLPE, polyethylene and EPR insulation up to 400 mils thick
Precise stripping of insulation only or insulation and semi-con simultaneously
Ideal for primary URD cable
Guarded cutting blade prevents injury
Accepts SW-2 ratchet wrench for leverage
Bushing insert fits over cable
– Bushing insert pre-sets cutting blade depth
– Bushings can be changed easily and quickly
Stop Bars can be purchased separately. Metric stop bars available
CB7-2 Replacement Blade Part No.: 10327
Made in the U.S.A.* See instruction sheet for detailed information

Ripley Ws 5 Variants

WS 5 DA Model – Equipped with a drill adapter stop bar

WS 5B Model – Provides an extended stripping length

WS 5A Model – Equipped with an adjustable strip stop mechanism & an adjustment window with a strip stop scale; also eliminates the need for a hex wrench

WS 5A DA Model – Equipped with a 3/8″ drill adapter, an adjustable strip stop mechanism & an adjustment window with a strip stop scale; also eliminates the need for a hex wrench

Ripley WS 5 Insulation Stripping Tool

Ordering Information

Insulation Stripper Model	Order Code	Adjustable Strip Stop Bar	Strip Stop Scale	Length	Dimensions	Strip Length	Drive Attachments
WS 5	10327	No	No	6″ (152 mm)	1 lb (454 g)	0.75″ – 3.75″ (19.05 – 95.2 mm)	Manual Wrench
WS 5 DA	10336	Yes		7″ (178 mm)	1 lb (454 g)	0.75″ – 3.75″ (19.05 – 95.2 mm)	Manual Wrench 3/8″ Drill
WS 5B	37710			10″ (254 mm)	1.7 lb (770 g)	0.75″ – 5.75″ (19.05 – 146.05 mm)	Manual Wrench
WS 5A	37415		Yes	8″ (203 mm)	1 lb (454 g)	0.625″ – 2.5″ (15.875 – 63.5 mm) 0.625″ – 2.5″ (15.875 – 63.5 mm)	Manual Wrench
WS 5A DA	38750		Yes	8″ (203 mm)	1.2 lb (544 g)	0.625″ – 2.5″ (15.875 – 63.5 mm) 0.625″ – 2.5″ (15.875 – 63.5 mm)	Manual Wrench 3/8″ Drill
