Semi-Con Shield Stripper Tool 5kV-115kV – Ripley WS 9

Ripley WS9A 9C

Semi-Con Shield Stripper Tools Ripley

WS 9 Series

Ripley WS 9 Cable Bonded Semi-Con & Shield Shaving Tools are used when splicing, jointing and terminating both HV and LV overhead power, transmission and distribution cables. The WS 9 tools are used to shave bonded semi-con shield and insulation material in a helical, spiral pattern.

The cable jointing tool is ideal for medium and high voltage (5-115kV) cables with an outer diameter from 13.97-57.15mm.

Features of Ripley WS 9 Cable Bonded Semi-Con & Shield Shaving Tool

Cable tools shave in a helical, spiral pattern
The cable preparation tools are available as a radius or a taper cut
Ripley WS 9A & WS 9C – Shaves the bonded semi-con shield & insulation material on 5 to 35 kV cables with diameters from 0.55″ to 2.25″ (13.97 to 57.15 mm)
Ripley WS 9S & WS 9ST – Shaves the bonded semi-con on 5 to 35 kV cables with diameters from 0.50″ to 2.50″ (12.7 to 63.5 mm)
Ripley WS 9D & WS 9E – Shaves the bonded semi-con on transmission cables with diameters from 1.9″ to 3.625″ (48.3 to 92.1 mm)

Thorne & Derrick stock and distribute Cable Preparation & Jointing Tools for all types of Medium & High Voltage Power, Transmission & Distribution Cables for underground and overhead line conductors – this is supported by a complete range of cable pulling equipment to support the installation of electric power cables into trench or duct.

Ripley Cable Tools | Jointing, Splicing & Cable Preparation Tools for Underground Cables & Overhead Line Conductors | LV MV HV

Ripley WS 9S | Ripley WS 9ST

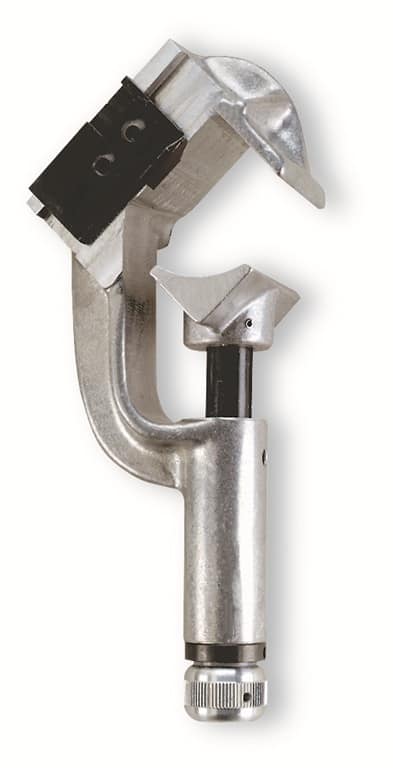

RIPLEY WS 9 CABLE INSULATION END STRIPPER

SPECIFICATIONS

5-115 KV cables, .55 to 2.25 in. (13.97 to 57.15 mm) cable O.D.
Shaves “bonded” semi-con shield and insulation material
Radius or Taper cut of semi-con shield
Shaves in a helical, spiral pattern
Made in the U.S.A.
Length: 10 in. (254 mm)
Weight: 2 lb (908 g)
WS 9A Part No.: 20700
WS 9C Part No.: 28215
More: Cable Tools For Underground Primary Distribution Cables

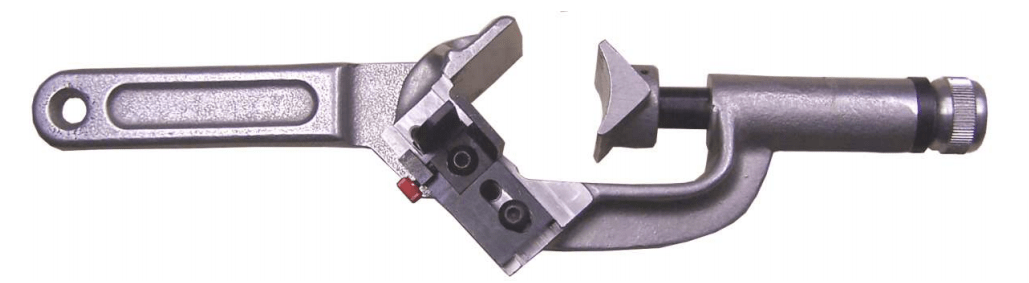

Ripley WS 9D | Ripley WS 9E

Ripley WS 9 Cable Bonded Semi-Con & Shield Shaving Tool

Ordering Information

Cable Stripper Model	Order Code	Length	Weight	Replacement Blade Order Code	Minimum Cable Outer Diameter	Maximum Cable Outer Diameter	Minimum Voltage	Maximum Voltage	Cutting Type
WS 9S	38430	8″ (200mm)	1.9 lb (860g)	21715	0.5″ (12.7mm)	2.5″ (63.5 mm)	5kV	35kV	Radius
WS 9S-T	38435			28201					Taper
WS 9A	20700	10″ (254mm)	2 lb (908g)	21715	0.55″ (13.97mm)	2.25″ (57.15 mm)			Radius
WS 9C	28215			28201					Taper 0.25″ (6.4mm)
WS 9D	38035	16.2″ (411mm)	2.74 lb (1.24kg)	24305	1.90″ (48.3mm)	3.625″ (92.1 mm)	Transmission	N/A	Radius
WS 9E	28215-3			28201					Taper

➡ Related Cable Tools – Ripley WS 76 15-35 kV Cable Semi-Con Shaving Tool | Ripley WS 40 Motorised 5-34.5 kV Cable Semi-Con Shield Removal Tool
