S5 Feeder Pillar | GRP | Single Door

Product Category | Feeder Pillars

Type | GRP Pillar (Galvanised Steel & Stainless Steel Available)

Order Reference | S5

Dimensions | 745mm (W) x 500mm (D) x 1260mm (H)

Doors | Single Door 540mm Width x 1040mm Height

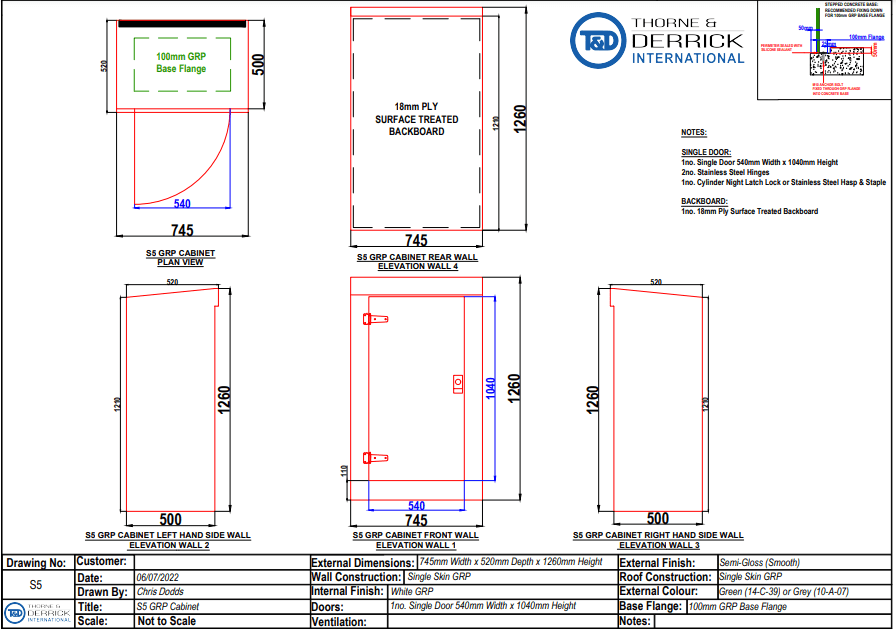

Download Drawing | S5 GRP Pillar | Kiosk | Cabinet

âž¡ View complete range of GRP Feeder Pillars | Feeder Pillars

The feeder pillar S2, S3 and S5 types are used for LV Power Connections to the electricity grid – these GRP pillar models typically accommodate various LV power requirements including 100A single phase, 100A 3-phase and 200A 3-phase. Contact us to discuss your pre-wired or empty enclosure requirements for Low Voltage Power Distribution.

S5 Feeder Pillar Single Door GRP

S5 Feeder Pillar | GRP | Single Door

Single Door Feeder Pillars

Single Door Feeder Pillars | S5


Feeder Pillar Features

  • UV Stabilised Smooth Gel-Coat
  • Internal White Resin Finish
  • Pillars Available in 14 C 39 Green or 10-A-07 Grey As Standard
  • Other Colours are available from the RAL Colour Range
  • Cylinder Night-Latch Locking or Stainless Steel Hasp & Staple
  • Stainless Steel Door Hinges
  • Stainless Steel Spring Tower Bolts
  • Half Hour Fire Rating As Standard
  • IP55 Rating against Dust, Liquid and Impacts
  • 18mm Ply Backboard Fitted As Standard

Extras

  • Alternative RAL Colours
  • Single Skin GRP Base
  • Load Bearing Base
  • Viewing Panels
  • Stainless Steel Door Stays
  • Gland plates
  • Ventilation Forced or Natural
  • Electrical Packages
  • Selection of Feeder Pillar Locking Mechanisms
