Insulating Poles

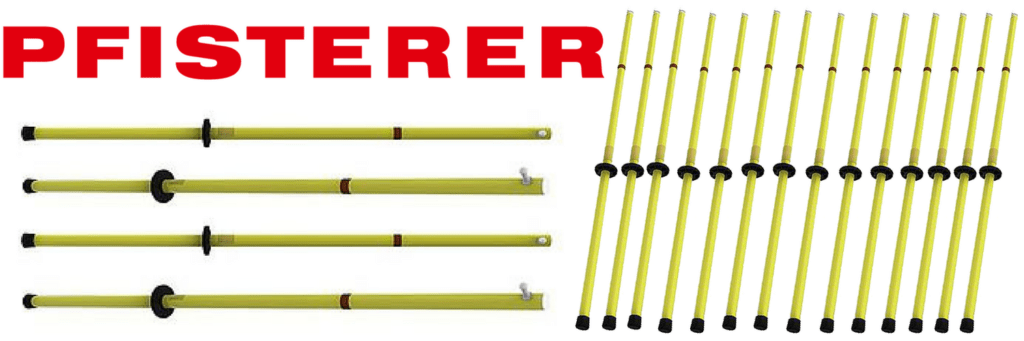

Pfisterer switching insulating poles are suitable for use on installations with nominal voltages up to 110kV – these poles provide 2 essential electrical safety functions;

bring the connecting parts of the test equipment to parts of high-voltage systems for the purpose of testing, switching, earth or short-circuiting
protection of the operator from electrical hazards

Switching Poles – Technical Specification

Suitable for indoor and outdoor installations
Plastic actuating bolt and hand guard
End cap made of non-slip rubber
Switching pole made of glass-fibre reinforced polyester tube, colour yellow

Switching Poles – Medium & High Voltage MV HV EHV Poles – Dimensions

Selection Table for Insulating Poles for use with Medium & High Voltage Power Systems (MV HV)

Pfisterer Part Number	Nominal Voltage U_n(kV)	Total Length L_G(mm)	Length of Insulating Element L_i(mm)	Length of Handle L_H(mm)	Diameter of Insulating Element d (mm)	Suitable for Use in Rain & Snow
364 035 004	30	1008	525	400	33	–
364 827 006	30	1008	525	400	33	♦
364 035 005	30	1508	525	530	33	–
364 827 001	30	1508	525	470	33	♦
364 035 035	30	1508	525	635	33	–
364 827 002	30	2008	525	470	33	♦
364 035 036	30	2008	525	750	33	–
364 035 037	30	2508	525	750	33	–
364 827 003	60	2508	900	850	33	♦
364 035 042	110	2008	1300	635	33	–
364 035 043	110	2508	1300	750	33	–
364 827 004	110	3008	1300	950	33	♦
364 035 008	110	3508	1300	750	33	–
364 827 007	110	4008	1300	1400	33	♦
364 827 008	110	5008	1300	1400	33	♦
