Low Voltage LV Industrial Cable Joints - Prysmian ZHMPJ

Low Voltage LV Industrial Cable Joints – Prysmian ZHMPJ

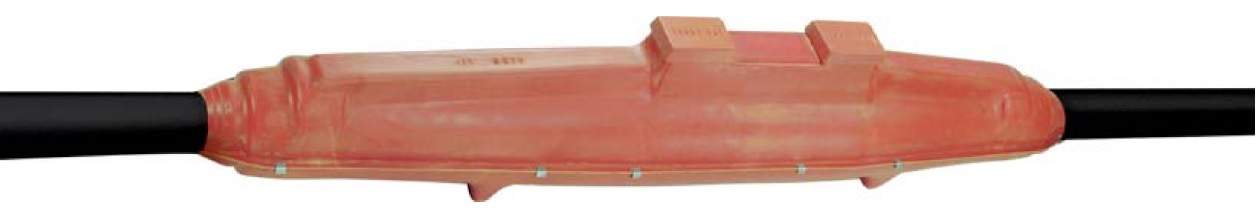

Prysmian ZHMPJ industrial straight cable joints are used for LS0H/LSF LV cables with copper & aluminium conductors ranging from 1.5sqmm to 400sqmm and have Rigid glass reinforced phenolic joint shells which are both fire retardant and LS0H.

ZHMPJ low voltage cable joints include low hazard isocynate free JEM resin which has extremely low viscosity and enhanced adhesion and are designed to allow use with compression connectors.

T&D can offer the full range of Prysmian cable joints for low voltage industrial cable jointing applications.

Prysmian ZHMPJ Cable Joints

Technical Data

  • Low Voltage Straight Joints for 600/1000 Volt polymeric insulated copper conductors, SWA cables to BS6724 and IEC 60502-1 (halogen free).
  • Tested and approved to BS EN 50393 & ENA ER C81
  • Tests on complete joints to BS 6724 (using IEC 1034 methods) give smoke emission values A0 significantly less than the permitted maximum of 1.5.
  • Includes constant force spring Armour Bonds.

Prysmian JEM Resin Features & Benefits

  • Easier resin mixing by the cable jointer in “Twin Pack” totally enclosed mixing in a clear laminate sachet.
  • Extremely low mix viscosity allows void free cable joint filling.
  • JEM Resin is insensitive to moisture and will cure under water.
  • Enhanced adhesion to XLPE, MDPE, PVC & lead covered cables.
  • High flash point, non-flammable liquid – no special storage or transport requirements.
  • Not classified as irritating to the skin or eyes.
  • Does not cause skin sensitisation.

Cable Joint Component Characteristics

Property Test Method Shell GF Phenolic Resin Filled Acrylic
Oxygen Index BS2782 Pt.1Mth.141 >70 >26
Temperature Index BS2782 Pt.1Mth.143 >350ºC N/A
Heat Distortion Temperature BS2782 Pt.1Mth.121A >150ºC N/A
Toxic Gas Emission N/A Nil Nil
Smoke Emission BS6724 A0 < 1.5 N/A

CABLE JOINTS Dimensions

Prysmian Cable Joint Reference Dimensions
A B C
ZHMPJ2 300mm 85mm 70mm
ZHMPJ3 405mm 100mm 80mm
ZHMPJ4 430mm 110mm 90mm
ZHMPJ5 560mm 160mm 130mm
ZHMPJ6 740mm 180mm 145mm
ZHMPJ7 870mm 190mm 145mm
ZHMPJ8 1015mm 205mm 180mm

Note: Prysmian ZHMPJ joints are provided without connectors, compression connectors can be provided separately.

➡ Prysmian Cable LV MV HV Accessories | Cable Glands |  Cable Cleats | 11kV Terminations Heat Shrink

Prysmian ZHMPJ LV Cable Joints - Dimensions

Prysmian ZHMPJ LV Cable Joints – Dimensions

LOW VOLTAGE CABLE JOINTS Selection Table
Nominal Area of Conductor Two Core Ref Three Core Ref Four Core Ref Connector Reference
4sqmm ZHMPJ2 ZHMPJ2 ZHMPJ2 BE-YS
6sqmm ZHMPJ2 ZHMPJ2 ZHMPJ2 BT6CS
10sqmm ZHMPJ2 ZHMPJ2 ZHMPJ2 BT10CS
16sqmm ZHMPJ2 ZHMPJ2 ZHMPJ3 BT16CS
25sqmm ZHMPJ2 ZHMPJ3 ZHMPJ4 BT25CS
35sqmm ZHMPJ3 ZHMPJ4 ZHMPJ4 BT35CS
50sqmm ZHMPJ3 ZHMPJ5 ZHMPJ5 BT50CS
70sqmm ZHMPJ4 ZHMPJ5 ZHMPJ5 BT70CS
95sqmm ZHMPJ4 ZHMPJ5 ZHMPJ5 BT95CS
120sqmm ZHMPJ5 ZHMPJ6 ZHMPJ6 BT120CS
150sqmm ZHMPJ5 ZHMPJ6 ZHMPJ6 BT150CS
185sqmm ZHMPJ5 ZHMPJ6 ZHMPJ6 BT185CS
240sqmm ZHMPJ6 ZHMPJ7 ZHMPJ7 BT240CS
300sqmm ZHMPJ6 ZHMPJ7 ZHMPJ7 BT300CS
400sqmm* N/A N/A ZHMPJ8 BT400CS

*Joint does not accommodate crossed core (phase to phase jointing)

➡ For jointing all types of XLPE, EPR and PILC power, control and instrumentation cables in straight, branch or transition arrangement including zero halogen, fire resistant and hazardous areas see Resin Cable Joints
