GRABIT™ NO TOUCH HAND SAFETY TOOL

The GrabIt Hand Safety Tool is manufactured by Hand Safety Tools and stocked and distributed by Thorne & Derrick for the reduction of hand or finger injuries associated with Push Pull Operations in the workplace.

The GrabIt hands free tool enables users to securely maneuver suspended tubulars while enabling hands-free operations. The tool firmly closes around a pipe or other like object, ensuring a solid grasp on the object being guided or pulled. Its head also provides a designated area to use the tool to push an object.

Thorne & Derrick supply the complete range of Safety Tools & Equipment, including hand safety tools to enable safe working in sectors such as the construction, renewables, data centres, rail, manufacturing and oil, gas, petrochemical industries.

Push Pull Tools

The range of Push Pull Tools manufactured by the Hand Safety Tool Company and distributed by Thorne & Derrick provide significant Health & Safety Improvements around site where “pushing and pulling” operations such as handling deliveries or loading/unloading in yards is commonplace. This download produced by the UK HSE enables the Risk Assessment according to Load Weight, Operation Frequency, Push/Pull Distances and other impacting factors – the range of tools to keep hands off loads, enable “hands-free” lifting, mitigate risk of load handing and prevent hand or finger injury are available in the UK from Thorne & Derrick.

GrabIt Hand Safety Tool

FOR FULLY CAPTURING & CONTROLLING SUSPENDED TUBULARS

The GrabIt™ has a number of Health & Safety advantages such as:

Enables secure manoeuvring of pipe and tubulars
Keeps strong grasp on tubular for optimum control
Provides ergonomic grip for proper body positioning

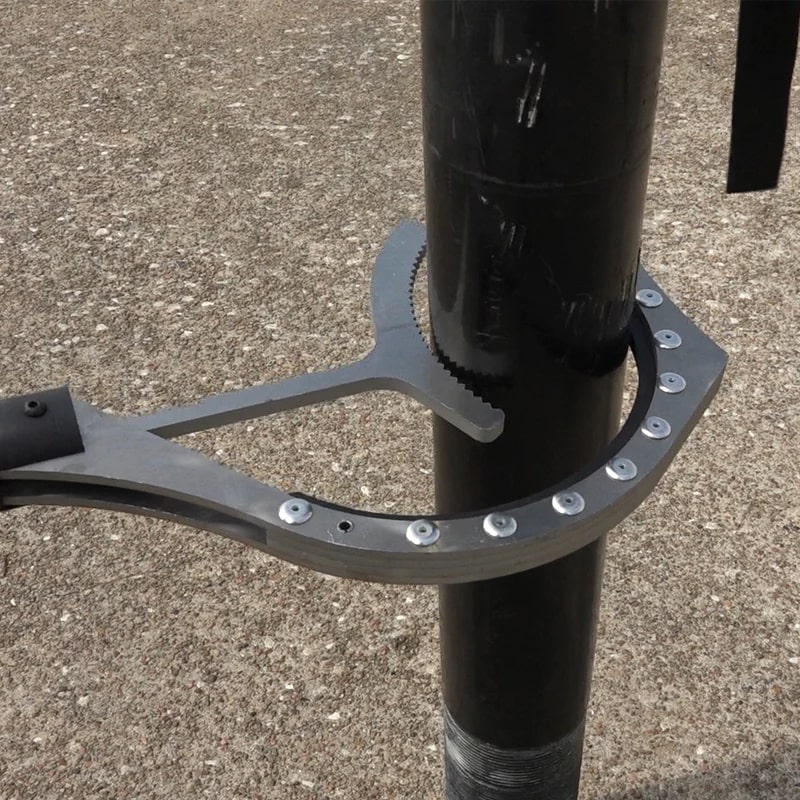

The GrabIt Tool in action, locking around tubulars

Hand Safety Tool Uses for Push Pull Operations & Hand Injury Prevention

Capture and control tubulars or cylindrical objects 3-10″ in diameter
Push equipment utilizing the GrabIt’s head
Stabilize suspended tubulars when offloading
Position tubulars or cylindrical objects

Stocked by Thorne & Derrick | Specialist Distributors of Industrial Safety Products, Tools, Equipment & PPE

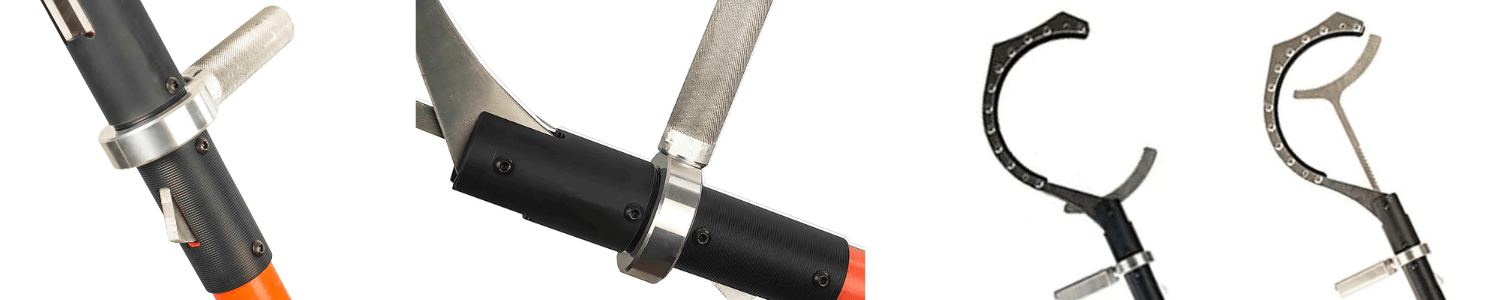

Tool Design for Push Pull Operations in the Workplace

GRABIT Head Design

Lightweight and strong aluminum
Smooth concave head provides a designated area for users to position the tool to push an item when needed
Rubber lining provides extra grip

GRABIT Ratcheting Mechanism

Ratcheting action locks as it closes around a tubular 3”-10” in diameter
Trigger on the tool allows for easy release of tubular

GRABIT Shaft Material

Strong and lightweight FRP material
Hi-viz safety orange for visibility
Convenient knurled aluminum side handle provides an ergonomic grip, properly positioning the user’s hand for optimum control
Ergonomic and slip resistant rubber grip

Shaft made from strong and lightweight FRP material

GrabIt Hand Safety Tool | Technical Specification

Tool Part Number	Tubular Size Range	Weight	Dimensions
GHST2	3” to 10” Diameter Range	6.6 lbs.	42” x 11” x 3.5”

Push/pull force rating – 250 lb. push, 350 lb. pull

GrabIt Tool Sizes

Hand Safety Tool Range FOR pUSH pULL oPERATIONS & “hANDS-oFF” wORKING

Tool Product Range	Length	Materials
ShoveIt	21” – 90”	Rubber, Plastic, Aluminium
HookIt	24″ – 44″	Coated FRP
SnareIt	2″ – 24″	Coated FRP, Aluminium
HoldIt	12″ – 36″	Lightweight UHWM, Polyester
GrateIt	0.75”	Aluminium
GrabIt	3″ – 10″	Aluminium, FRP, Rubber Grip
TwistIt	4.5″ – 5.5″	Aluminum, Plastic Grip
Rackit	4″ – 8″	Aluminium, Plastic Grip

Pinch Points & Hand Protection

A pinch point is commonly defined as any point where it is possible for a body part to be caught between moving and stationary plant or equipment. Pinch points are found in many places throughout a workplace.

Work tasks such as equipment maintenance, lifting materials, guiding loads, assembly line work and hoisting or hooking up trailers are just a few common tasks where pinch points are a common hazard.

The physical forces applied to the hand caught in a pinch point can vary and cause injuries ranging from bruises, cuts, fractures and scalping to mangled and amputated body parts, and even death.

Thorne & Derrick distribute a range of Safety Tools from Hand Safety Tool Company designed to minimise hand injuries by keeping hands out of the line of fire. Over a quarter of a million people suffer serious hand injuries each year. The Hand Safety Tool Company works hard to help to reverse that trend by creating No Touch Hand Safety Tools that keep hands off and away from potential injury areas. The range of Safety Products are the result of numerous conversations and in-field encounters over the last decade with key Health & Safety Officers and “boots-on-the-ground personnel” to ensure each tool produced does the most important job of all – helps every user to keep their hands.

Cable Safety Hooks & Equipment

OSHA maintains general industry regulations on walking and working surfaces that guard workers against hazards and the risk of injury including clutter, protruding objects and wet conditions. These Health & Safety hazards can harm everyone in a facility, regardless of title or job responsibilities.

Slips, trips, and falls cause nearly 700 fatalities per year and many more injurious accident in the workplace according to the Bureau of Labor Statistics. The CableSafe range of products ensure all cables, wires and hoses are suspended off the ground especially in high traffic work areas such as production floors, machinery spaces and deck level areas where maintenance is being carried out.

CableSafe Safety solutions are critical cable essentials and are well proved construction safety products.

The CableSafe range of cable hooks can be used during maintenance, turnaround, outages, shutdowns, construction work to suspend cables and hoses and other work gear and equipment from the working space.
