Removing Outer Sheath HV EHV Cables – Alroc DMSR/80-160

Published 22 Mar 2018

Removing Outer Sheath

Jointers Cable Tools | Low Medium High Voltage | LV MV HV 11kV 33kV 66kV 132kV

  • Uploaded By Chris Dodds – Thorne & Derrick Sales & Marketing Manager

Cable Sheath Stripping Tool

Remove Outer Sheath & Jacket From High Voltage Cables

Alroc DMSR/80-160 cable jointing tools are used by jointers to remove the outer sheath and aluminium/lead shield from HV & EHV cables with outside diameters 80-160mm

Integral insulation screen detection is provided by successively performing a longitudinal and circular cut.

Alroc DMSR/80-160 cable jointing tool has an embedded mechanical dial gauge allowing the jointer to score the aluminium shield without cutting and causing cable damage.

The Alroc cable tool provides safe and precise cable cutting by the HV-EHV Jointer – a longitudinal cut ensures the cable screen is correctly scored without damaging the cable layer and setting up the thrust to prevent screen damage caused by the cable cutting blade.

The video demonstrates removing outer sheath from the EHV Extra High Voltage cable and the ability to switch from longitudinal cut to circular cut without removing the jointers tool from the cable.

A sound alerts when the tool blade is touching the aluminium/lead shield – the Alroc DMSR/80-160 cable jointers tool allows for very fine tuning and precision of the cutting depth, with a screen thickness capacity of 11mm / 0.433in and a diameter range of 80-160mm  / 3.150-6.299in.

T&D stock Alroc cable jointing tools to enable the removal of outer cable sheath, XLPE insulation and semi-conductive screens (bonded and strippable).

Associated Cable Jointing Tools

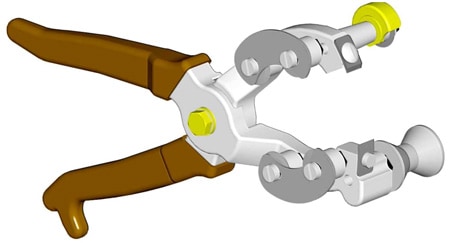

♦ Alroc PG HTA Sheath Stripping Pliers – see remove cable sheath



Alroc PG HTA Sheath Stripping Pliers

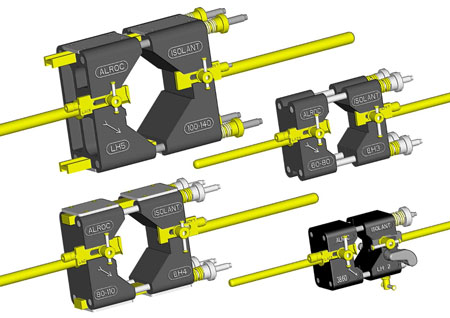

♦ Alroc LH Insulation Stripping Tools – see remove cable insulation

Alroc LH Insulation Stripping Tools

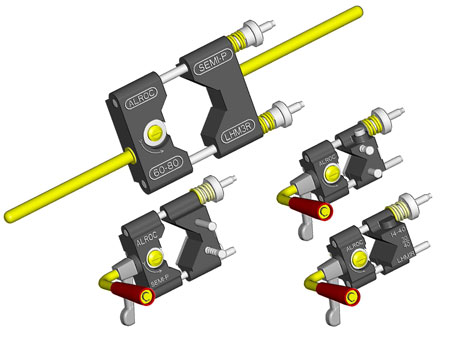

♦  Alroc 8YR0-LHM Peelable Semicon Screen Removal Tools – see remove semicon screen

Alroc 8YR0-LHM Peelable Semi-Conductor Screen Removal Tools
