Underground Substation Cable Sealing

Underground Substation Cable Sealing

Underground Substation Cable Sealing

Product Category: Duct Seals
Application: Protection of Metro & Rail Systems Against Moisture & Flood
Sector: Rail
Product Installed: Filoseal+HD

Filoform Cable Joints - Connect Seal Protect

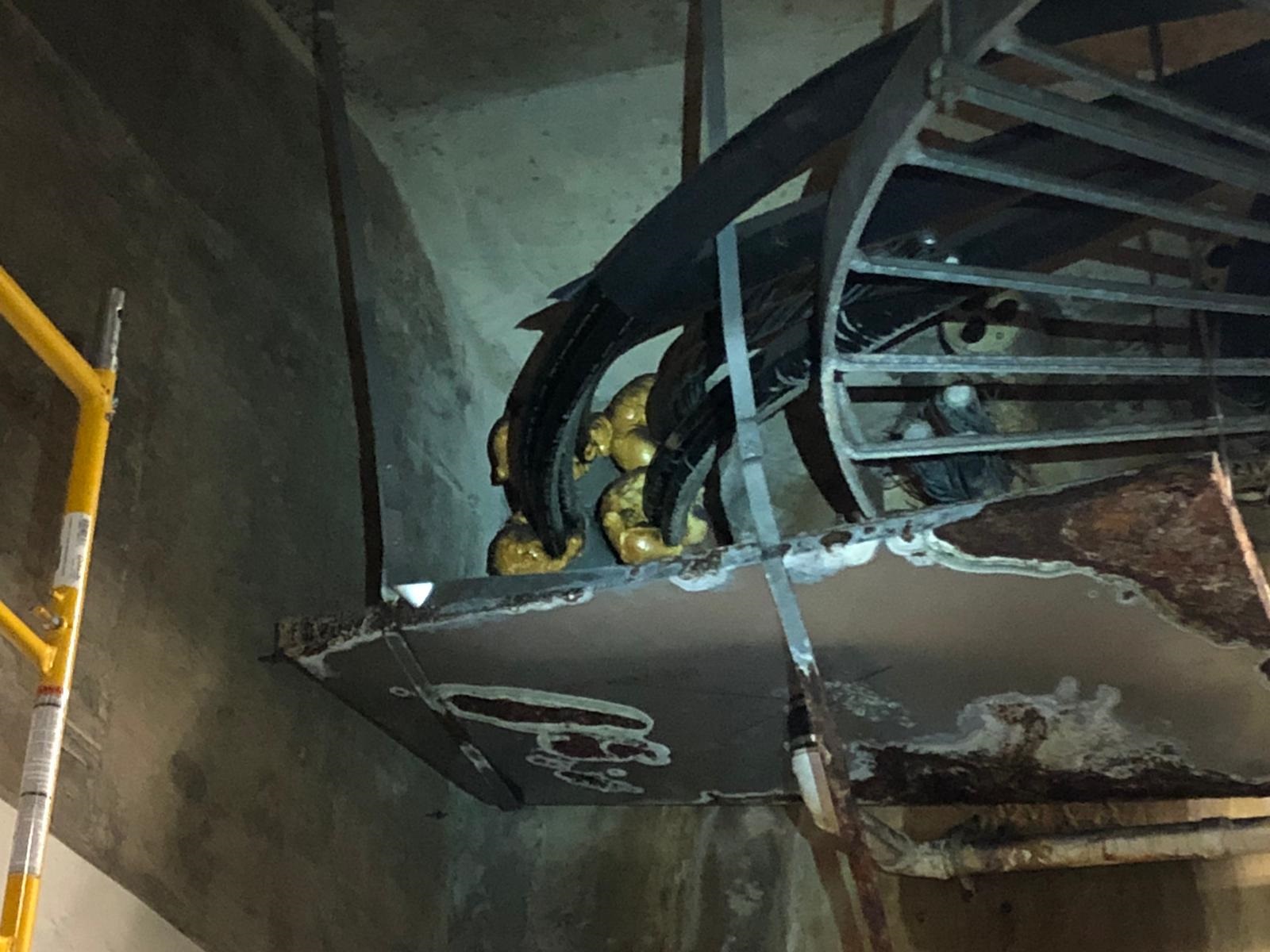

Here are several site installation photographs of a cable sealing and substation asset protection project in the USA.Cable Seals

The MV medium voltage cables are installed 20 meters underground in a substation that is providing electrical power distribution to a subway metro station.

This is one of many sites where they have ongoing moisture problems associated with floodwater and environmental conditions.

Using FiloSeal+HD the client improved the environment inside the substation, reducing moisture, which was their electrical and substation protection objective.

One of the main issues with this project was cable separation of the 35kV power cables which are installed in triplex formation.

FiloSeal+HD uses hexagonal-shaped tubes to support and separate the MV cables, which is one of the many reasons, this Utility decided to select and specify Filoform.

  • Cable Sealing System – FiloSeal+HD + Water Blocking System
  • Cables – 600MCM, 35kV TR-XLPE, Triplexed Cables
  • Cable Duct Size – 160mm (6″)

As you can see, the visual element is far neater and professional, while also providing the following features:

  • Up to 2 bar Pressure Resistance (Gas & Water)
  • Flexible, one component, sealing compound – resistant to rats
  • Resistant to Hydrogen Sulphide/Methane and aggressive gases
  • Non-Hazardous – complies with 2011 NEC Articles 225.27, 230.8, 300.5(G), 300.7 (A) on Raceway Seals, and 501.15 (B)(2)
  • Suitable for renovations – the cable duct seals can be installed retrospectively
