33kV Onshore High Voltage Cable Junction Cabinets – Nexans ONJC-S
Published 12 Feb 2018

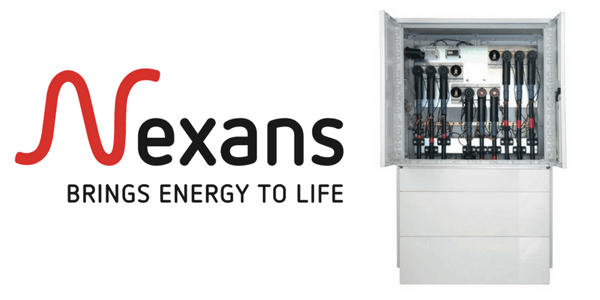

Nexans ONJC-S Onshore Junction Cabinet
-
by Chris Dodds T&D - estimated reading time 5 minutes
Cable Cabinets
Nexans ONJC-S is an onshore junction cabinet designed, tested and manufactured for onshore renewable projects that can be used as a disconnecting point for branching between grid and applications – for applications with MV-HV separable connectors up to 42kV (630A) according to CENELEC HD 629.1 S2.
The ONJC-S onshore junction cabinet has a pedestal type powder coated ASIS 304 stainless steel housing structure, robust design with IP43 degree protection (IEC60529/EN62262 ed1:2002-02) and RAL 7037 coolcoat UV resistant coating.

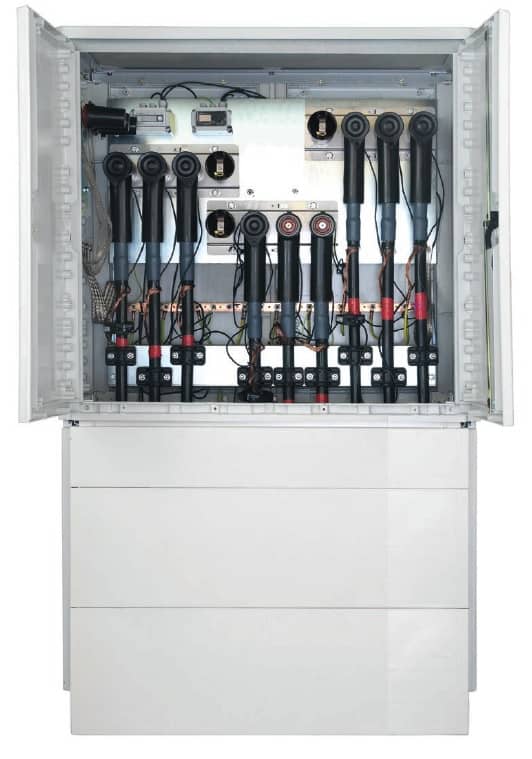

33kV Onshore High Voltage Cable Junction Cabinets – Nexans ONJC-S
Nexans ONJC-S – Benefits
Medium/High Voltage MV HV Cable Cabinets
- The cable termination cabinet design is specifically suitable to be installed in outside conditions
- High accessibility for ease of installation
- Ideal test and demarcation point
- Time saving on installation and down time
- Reducing cost of installation
- Reduction of footprint
Nexans ONJC-S 33kV Onshore High Voltage Cable Junction Cabinets
Onshore Cable Junction Cabinet Comprising
- Pedestal type powder coated metal housing with keyed (europrofile cylinder) frontplate
- 2 way screened junction on stainless steel base plate and cover
- Disconnectable earth
- Tinned earth bar 5×30 mm on insulated stand offs
- Earthing connection point
- Cable cleats arrangement, up to 4 rails for max. 12 single core cables with outer cable diameter 26-52 mm
- Removable frontplate to facilitate cable access
33kV Onshore High Voltage Cable Junction Cabinets
| Nexans Onshore Junction Cabinet Part Ref | Voltage Um (kV) | Outer dimensions of cabinet with base (w x d x h)(mm) | Installation | Outer cable dia(mm)* | |
| min | max | ||||
| ONJC-S-400J2-T1 | 42 | 770 x 470 x 1380 | Pedestal type | 26 | 52 |
33kV Onshore High Voltage Cable Junction Cabinets – Dimensions
Cable Cleat Arrangements
| Nexans Cable Cleat Type | Outer Cable Dia (mm) |
| ONJC-S-CLA-26-38 | 26-38 |
| ONJC-S-CLA-36-52 | 36-52 |
Options: non standard colour for powder coated housing and anti-graffitti treatment of the powder coated housing.
Nexans cables include British & European standard medium/high voltage (MV-HV) power cables for distribution of 11kV to 33kV electricity using polymeric insulated (XLPE) single or 3-core cables, with armour/unarmoured and copper wire or copper tape screen options.
