Cubis STAKKAbox™ Toby | The Telco Joint Box for Rural Roads
Published 08 Feb 2021
access chambers & Joint Boxes

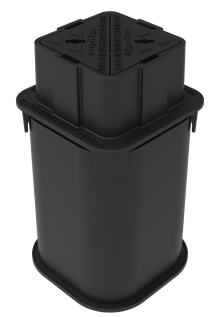

CUBIS STAKKAbox™ Toby
As a long-standing supplier of network access chambers and AX-S™ covers to the Telecommunication market, Cubis prides itself at being at the forefront of key development and innovations within the sector.
The NEW STAKKAbox™ Toby has been designed to provide a compact Telecoms joint box that can be installed in areas where it is congested with other utilities or there aren’t any pedestrian footpaths such as rural roads. The access chamber system can also be installed in the carriageway making it the ideal solution for your rural telco network.

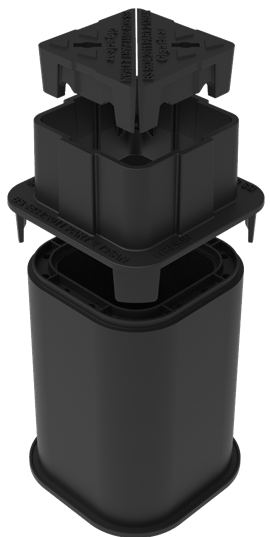

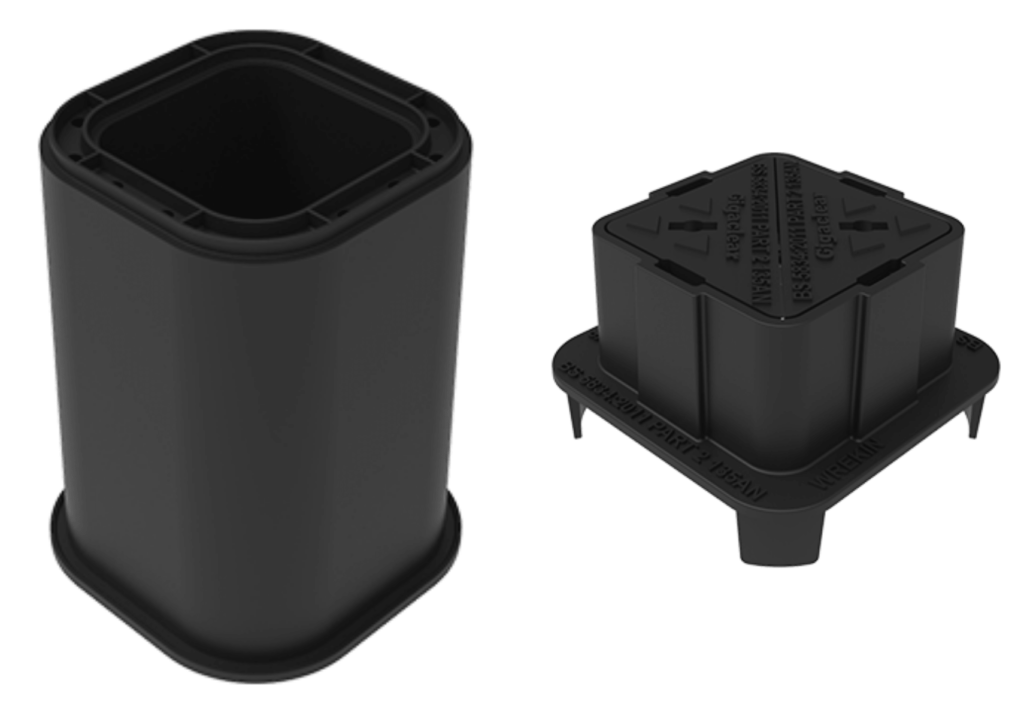

System Components | STAKKAbox Toby & AX-S Ductile Iron Cover
New & Retrofit Network Installation
STAKKAbox™ Toby is available in a solid ring section that can be installed within a new network system or retrofitted into an existing network within the carriageway and has been tested and approved to BS5834 Grade A Heavy making it the ideal solution for EN124 carriageway Group 4 installations.
Easily Adaptable
The STAKKAbox™ Toby offers an easily adapted solution to on-site conditions that can be drilled with standard tools for duct entries on any side of the chamber wall and installed within new telco networks or retro fitted around existing utilities.
How it Works
The STAKKAbox™ Toby is made up of one 300mm deep section that has a 150mm x 150mm clear opening with integrated base section.
With one of the sections manufactured with an integrated base section and the other without, the STAKKAbox™ Toby sections can be stacked to accommodate for deeper installations.
Utilising a Ductile Iron cover, the twin-walled chamber provides a superior strength system for an easily accessed network.
Materials
Polypropylene (PP)
The STAKKAbox™ Toby system is moulded in talc-filled recycled Polypropylene (PP) which possesses excellent strength to weight properties.
Each section is manufactured with twinwall and internal ribbing for improved loading performance.
Available Sizes
The STAKKAbox™ Toby provides an access chamber with a clear opening of 150mm x 150mm.
The single ring section at 300mm deep is built up in conjunction with a 120mm deep ductile iron cover to provide an over 420mm telecoms joint box.
STAKKAbox™ Toby can also be supplied with an extra section for deeper installations providing up to 720mm maximum depth of chamber.
Load Rating
The STAKKAbox™ Toby is suitable for installation in environments rated to BS5834 Grade A Heavy.
Suitable for EN124 carriageway Group 4 installations.
STAKKAbox™ Chambers are significantly faster to install than conventional alternatives, with complete installations typically taking under one hour. This results in reduced costs for the installer and significant time saving. No specialist equipment or plant is required in order to install an access chamber and there is no need for specialist box builders.
With flexible installation, Cubis access chambers can be adapted to suit on-site conditions with standard tools to build over existing networks.
