Ellis Patents Cable Guide Clamp – Video

Published 09 Oct 2019

• uploaded by Chris Dodds | Thorne & Derrick Sales Marketing Manager

Ellis Patents

Cable Guide Clamp

Ellis Patents Guide The Way With Guide Clamp Cable Cleats

Ellis Patents, the world leading UK designer and manufacturer of cable cleats have developed the Cable Guide Clamp – a combination of a cable guide and a cable clamp for high voltage (HV) cables.

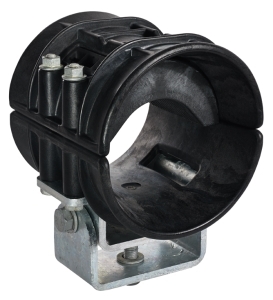

The Ellis Cable Guide Clamp is designed to be installed in place of rollers along the HV cable route where the cable length is pushed and pulled through to its final destination.

Ellis Patent Guide Clamp was developed to provide a product that could be used during cable installation and then be used to clamp and restrain the HV power cable.

Two Stage Cable Installation & Clamping

The Ellis Cable Guide Clamp works in two simple stages. Firstly during cable pulling, the guide clamps gimballed mounting and slipper nylon construction enables simple installation and cable guiding.

Once the cable has been sufficiently pulled through and placed, the top half of the guide clamp is removed and a LSF polymeric fixing piece installed directly onto the cable.

Then, the top half of the guide clamp is replaced turning it into a fully functioning HV cable clamp. The narrow Ellis Patents design minimises the cable to cable distance resulting in greater flexibility, easier movement and therefore simpler installation.

Cable Guide Clamp Selection Table

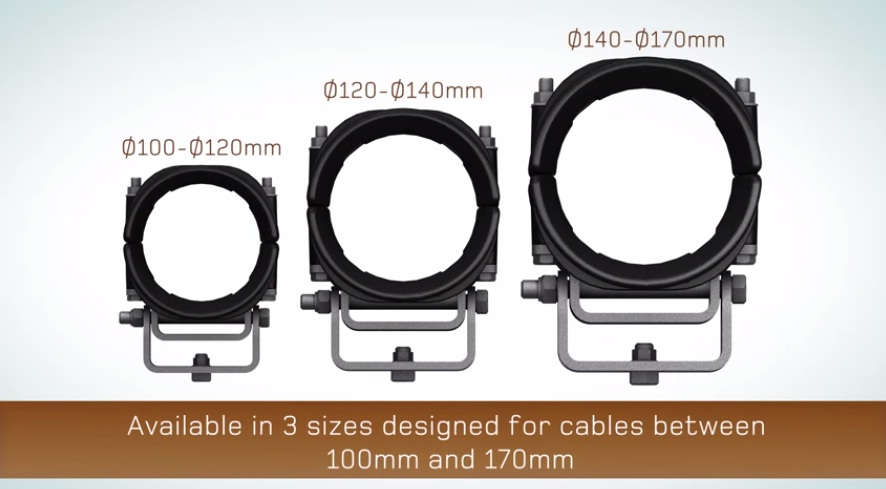

Ellis Patents HV Cable Guide & Clamp – Product Dimensions

The Ellis Cable Guide Clamp was originally designed for use on an offshore project by Siemens and has now been developed for use with HV cables in many other potential applications.
