Ellis Patents Elite Cable Clamps & Straps – Range Taking Cable Clamps & Straps

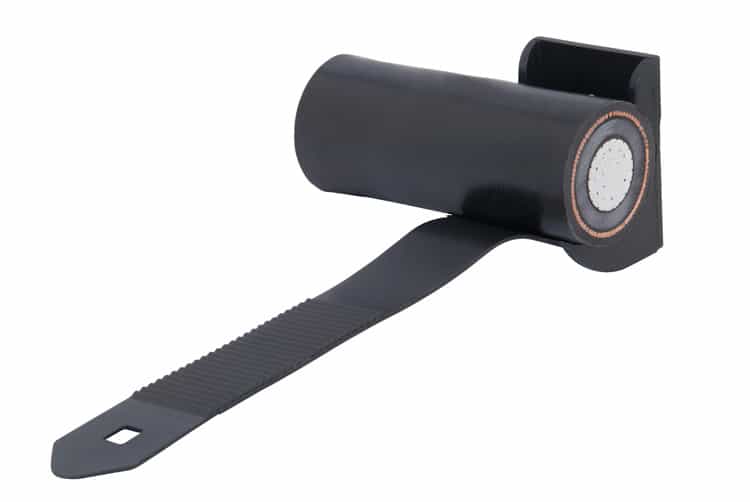

Ellis Patents Elite Cable Clamps & Straps 9.5-34mm – Plastic LSF Low Smoke Fume

Cable Cleats

Range Taking Cable Clamps & Straps

Elite Cable Clamps & Cable Straps are range taking cable support products manufactured by Ellis Patents and are practical and easy to install – the single cable cleats are suitable for cable diameters ranging from 9.5-52mm with only four sizes of cleats available to cover the cable range.

The Elite cable clamps and straps are manufactured as standard in Black Polypropylene (B) , White Polypropylene (W) or Black Flame Retardant V0 Zero Halogen Phosphorus Free Nylon (LSF Low Smoke Fume).

The cable clamp has a fully releasable strap allowing ease of installation and can be easily be screw fixed to wall, skirting or cable tray. Used to fix power cables in indoor and outdoor applications and the cable clamp is tested in line with EN 50368:2003.

Ellis Patents Elite

Testing Information

Should you require test samples or further specification details about this range of range-taking cable clamps and straps please contact us.

Elite Range Taking cable cleats have been tested in line with the European Standard of ‘Cable Cleats forElectrical Installations’ BS EN 50368:2003.

Typical results are detailed below:

Properties BS EN 50368 Classification Clauses Units / Classification B Units / Classification LSF Test Data B Test Data LSF
Cable Cleat Type 6.1, 6.1.2 Non Metallic Non Metallic
Impact Resistance 6.2,6.2.2, 6.2.5 Medium 0.54kg @ 400mm to Heavy 1.7kgs @ 300mm Light 0.27kg @ 400mm to Very Heavy 6.7kgs @ 300mm pass pass
Resistance to Electro Mechanical Force 6.3 Refer to Ellis Patents for further details
Temperature for Permanent Application 6.4 oC oC -40 to 40 -40 to 60
Needle Flame Test 6.5, 10 Application Time (seconds) Application Time (seconds) >5 >20
Lateral Load Test 9.2 Newtons (N) Newtons (N) 150 325
Axial Movement Test 9.5 Newtons (N) Newtons (N) 50 50
Ellis Patents Elite Cable Clamps & Straps 9.5-52mm

Ellis Patents Elite Cable Clamps & Straps 9.5-52mm

Cable Straps & Clamps

➡ The following selection table provides information to enable the specification or purchase of the correct Elite Range Taking Cable Cleats – contact Thorne & Derrick for further technical information, installation advice, samples or to place an order.

Elite Cable Clamp Part Number Material Suffix Cable Range Cable Cleat Dimensions Pack Quantity Weight g
Min Dia mm Max Dia mm W(max) mm H mm D mm Fixing Hole B/W LSF
15-1 B,W or LSF 9.5 16.0 27.0 37.0 25.0 1 x M6 100.0 6.0 8.0
15-2 B,W or LSF 15.0 25.0 36.0 37.0 32.0 1 x M6 50.0 8.0 10.9
15-3 B,W or LSF 23.0 37.0 48.0 48.0 36.0 1 x M6 50.0 15.0 18.1
15-4 B,W or LSF 34.0 52.0 63.0 65.0 40.0 1 x M6 25.0 20.0 25.5
Ellis Patents Elite Cable Clamps & Straps 9.5-52mm – Plastic LSF Low Smoke Fume - Dimensions

Ellis Patents Elite Cable Clamps & Straps 9.5-52mm – Plastic LSF Low Smoke Fume – Dimensions

Installation Instructions For Ellis Elite Cable Clamps

Should you require any technical advice or installation guidance on the use of cable cleats please do not hesitate to contact us.

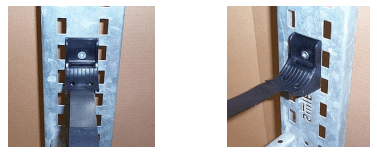

1. Fix the Elite cable clamp to the support structure, wall or skirting prior to inserting the cable Ellis Cable Cleats

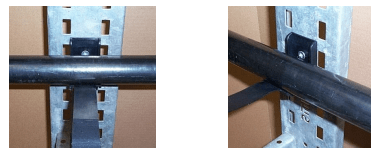

2. Install the cable onto the cleat Ellis Cable Cleats

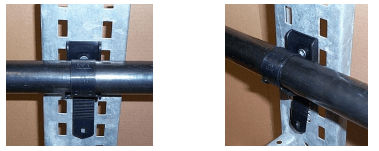

3. Locate the retaining strap through the aperture at the rear of the cable support, hand tighten the cable strap Ellis Cable Cleats

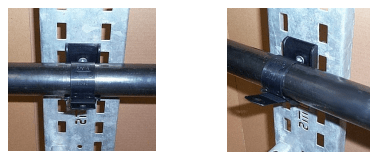

4. Pass the end of the cable retaining strap through the two legs below the cable support to lock the strap – to release the cable strap use a screw driver to prise open the legs Ellis Cable Cleats


Ellis Patents Cable Cleats

Ellis Cleats | Emperor | Vulcan | Atlas | Phoenix | Single Trefoil Quad Bundled Cables

Cable Cleats v Cable Ties

The Video produced by Ellis Patents provides compelling evidence of the need to ensure all cables are adequately supported and retained to cable containment to protect against the devastating effects of short circuit faults: 118kA Short Circuit Fault Current | 0.1 Seconds Duration | 480V Low Voltage Cables.
