Ellis Patents Emperor Stainless Steel Trefoil Cable Cleats (19-128mm)

Cable Cleats

Emperor Cable Cleats

Trefoil Cable Cleats

  • Manufactured By Ellis Patents
  • Maximum Short Circuit Test Level 156/195/235kA
  • Cable Cleat Spacing – 600/300/25mm
  • Cable Cleat Type – Single & Trefoil Cables
  • Material – Stainless Steel
  • Cleat Range Single Cables – 32-150mm
  • Cleat Range Trefoil Cables – 19-128mm

Thorne & Derrick International, based in the UK, stock and distribute the complete range of cable cleats and cable hangers manufactured by Ellis Patents including Emperor cleats for short circuit retention and cable protection of LV (Low Voltage), MV (Medium Voltage) and HV (High Voltage) cable systems in single-way or trefoil installation.

Ellis Patents Emperor Cable Cleats are stainless steel trefoil cable cleats for cable diameters ranging from 19-128mm for cable applications where the highest level of short circuit withstand are required.

Emperor cable cleats are designed for rapid installation and offer the ultimate protection against the harshest environmental conditions.

The frame is tightened and locked using a combination of M12 set screw, nyloc nut and washer in A4 stainless steel, screw head retainer in LSF Nylon (Zero-Halogen, Low Smoke & Fume) and LSF polymeric washer. The cleats are also supplied with an integral LDF polymeric liner and base pads.

International Standard IEC 61914:2009

Ellis Patent cable cleats manufactured from stainless steel with international specifications are used to clamp and retain LV MV HV cables including 11kV and 33kV networks depending on short-circuit calculations according to IEC61914 calculations.

For cable installations where corrosion protection is required, including onshore and offshore substations or hazardous area locations, see our complete range of  ➡ stainless steel cable cleats.

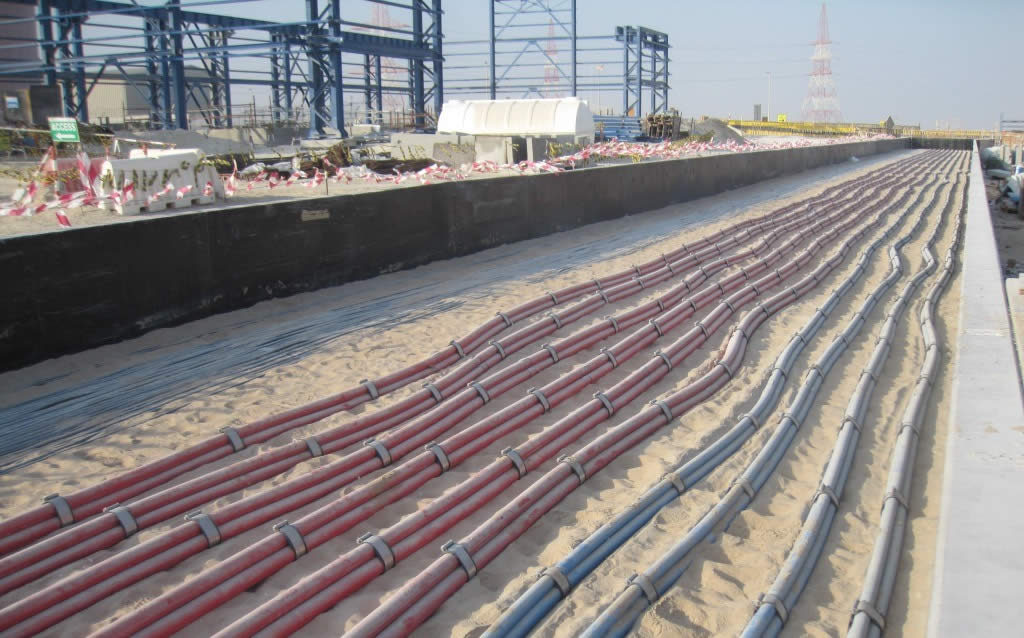

Project Application: Emperor Cleats (Oil, Gas & Petrochemicals) – cable cleat manufacturer, Ellis Patents recently demonstrated export expertise and excellent in providing high specification trefoil cable cleats compliant with ADCO (Abu Dhabi Company for Petroleum Oil Operations) requirements for the cable management of medium/high voltage (MV-HV) on the Al Dabbiya Surface Facilities project. Emperor cleats designed to clamp and support cables where the highest levels of short circuit protection are required are available for both single and trefoil applications – manufactured from 316L the stainless steel cable cleats provide excellent corrosion protection for cable management in both onshore and offshore hazardous area locations.

Emperor Cable Cleats

Ellis Patents Emperor Cable Cleats

Maximum Short Circuit Test Level Cleat Spacing

  • 156kA 600mm
  • 195kA 300mm
  • 235kA 225mm

International Approvals

The Ellis Patent Vulcan cable cleats are approved, certified and listed by DNV GL, ABS, UL and London Underground LUL – S1085 (Product Register Number 361). Specialist application cable cleats include: LSF Zero Halogen | Fire Resistant & Rated | Hazardous Areas | MV HV 11kV 33kV 66kV | EHV 132kV 400kV

DNV Cable Cleats ABS Cable Cleats UL Listed Cable Cleats LU LUL Cable Cleats

Installing Cable Cleats

Installation instructions for single way cables using Emperor cleats manufactured by Ellis Patents:

Remove the closing flange nut Remove the base pad Replace the appropriate pad Closed the hinged arm
1. Remove the closing flange nut. 2. Remove the base pad (if required) and fix the cleat to support structure using either the single central or two outer fixing positions. 3. Replace the appropriate pad and install the cables. 4. Close the hinged arm and refit the flange nut (18mm socket required). The head of the screw is held in position so that only a single power tool is required to tighten the nut from one side.

Important. Do not over tighten the cleat. The liner should be in contact with the cable but does not need to be so tight that the cable bulges at either side of the liner.

Ellis Patents Emperor Cable Cleats Testing Information

Should you require test samples or further specification details about Emperor cable cleats please contact us:

Properties IEC 61914:2009 Classification Clause Units / Classification Emperor Single Cable Application Test Data
Cleat Type 6.1, 6.1.3 Composite
Impact Resistance 6.3, 6.3.5, 9.2 Very Heavy Classification (5kg at 400mm) Pass
Resistance to Electromechanical Force (undertaken at Damstra Laboratories NL) 6.4, 6.4.3, 9.5 kA @ 300mm Centres M10 Fixings (withstanding one short circuit) 195 (Report No. PDL- 09.098.2)
Resistance to Electromechanical Force (undertaken at Damstra Laboratories NL) 6.4, 6.4.3, 9.5 kA @ 600mm Centres M10 Fixings (withstanding more than one short circuit) 156 (Report No. PDL08.074.1)
Temperature for Permanent Application 6.2 ºC -40 to +60
Needle Flame Test 10.0, 10.1 Application Time (seconds) > 120
Lateral Load Test 9.3 Newtons (N) Refer to Ellis Patents for further details
Axial Movement Test 9.4 Newtons (N) 650
Ellis Patents Emperor Stainless Steel Trefoil Cable Cleats (19-128mm)

Ellis Patents Emperor Stainless Steel Trefoil Cable Cleats (19-128mm)

Ellis Patents Emperor CABLE CLEAT – Trefoil Cable Application Selection Table

➡ The following selection table provides information to enable the specification or purchase of the correct Emperor cable cleat – contact Thorne & Derrick for further technical information, installation advice, samples or to place an order.

Emperor Trefoil Cable Cleat Part Number Min Dia (mm) Max Dia (mm) W (mm) H (mm) D (mm) P (mm) Cleat Fixing Holes Weight (g)
ER19-23 19 23 96 83 54 25 2 x M10 + 1 x M12 425
ER23-28 23 28 96 83 54 25 2 x M10 + 1 x M12 425
ER27-32 27 32 97 88 54 25 2 x M10 + 1 x M12 440
ER30-35 30 35 99 91 54 25 2 x M10 + 1 x M12 445
ER33-38 33 38 103 95 54 25 2 x M10 + 1 x M12 460
ER36-42 36 42 124 100 54 50 2 x M10 + 1 x M12 600
ER40-46 40 46 125 106 54 50 2 x M10 + 1 x M12 605
ER44-50 44 50 130 117 54 50 2 x M10 + 1 x M12 630
ER48-55 48 55 132 121 54 50 2 x M10 + 1 x M12 640
ER51-58 51 58 136 128 54 50 2 x M10 + 1 x M12 650
ER55-62 55 62 160 135 54 75 2 x M10 + 1 x M12 810
ER59-66 59 66 163 143 54 75 2 x M10 + 1 x M12 825
ER63-70 63 70 166 151 54 75 2 x M10 + 1 x M12 850
ER67-74 67 74 169 158 54 75 2 x M10 + 1 x M12 850
ER71-78 71 78 172 165 54 75 2 x M10 + 1 x M12 890
ER74-82 74 82 177 171 54 75 2 x M10 + 1 x M12 890
ER77-85 77 85 183 177 54 75 2 x M10 + 1 x M12 905
ER82-88 82 88 191 187 54 75 2 x M10 + 1 x M12 805
ER88-96 88 96 207 203 54 75 2 x M10 + 1 x M12 850
ER96-103 96 103 221 218 54 75 2 x M10 + 1 x M12 940
ER103-111 103 111 237 235 54 75 2 x M10 + 1 x M12 950
ER111-119 111 119 253 250 54 75 2 x M10 + 1 x M12 1010
ER119-128 119 128 265 275 54 75 2 x M10 + 1 x M12 1220



Ellis Patents Emperor Stainless Steel Trefoil Cable Cleats (19-128mm)

Ellis Patents Emperor Stainless Steel Trefoil Cable Cleats (19-128mm)

Cable Cleats v Cable Ties

The Video produced by Ellis Patents provides compelling evidence of the need to ensure all cables are adequately supported and retained to cable containment to protect against the devastating effects of short circuit faults: 118kA Short Circuit Fault Current | 0.1 Seconds Duration | 480V Low Voltage Cables.
