Ellis Patents Vulcan+ Cable Cleats 30-110mm – Stainless Steel

Cable Cleats

Vulcan Cable Cleats

Single Cable Cleats

  • Manufactured By Ellis Patents
  • Maximum Short Circuit Test Level 104kA/132kA
  • Cable Cleat Spacing – 600/300mm
  • Cable Cleat Type – Single & Trefoil Cables
  • Material – Stainless Steel
  • Cleat Range Single Cables – 30-170mm
  • Cleat Range Trefoil Cables – 19-101mm

Thorne & Derrick International, based in the UK, stock and distribute the complete range of cable cleats and cable hangers manufactured by Ellis Patents including Vulcan cleats for short circuit retention and cable protection of LV (Low Voltage), MV (Medium Voltage) and HV (High Voltage) cable systems in single-way or trefoil installation.

Ellis Patents Vulcan+ Cable Cleats are stainless steel single cable cleats for cable diameters ranging from 30-170mm for cable applications where the highest level of short circuit withstand and protection is required – the Vulcan cleats clamp and secure substation and switchgear cabling in both onshore and offshore industrial or hazardous area locations where high levels of corrosion resistance are required.

Vulcan+ cable cleats, manufactured from stainless steel, are compact in design for easy installation onshore and offshore when space is limited and offering the ultimate protection against the harshest environmental conditions. The cable cleat comes with an integral Low Smoke and Fume Zero Halogen Polymeric liner and base pad offering the cables and sheath protection during short-circuit conditions.

International Standard IEC 61914:2009

Ellis Patent cable cleats with international specifications are used to clamp and retain LV MV HV cables including 11kV and 33kV networks depending on short-circuit calculations according to IEC61914 calculations.

For cable installations where corrosion protection is required, including onshore and offshore substations or hazardous area locations, see our complete range of  ➡ stainless steel cable cleats.

Ellis Patents Vulcan+ Cable Cleats

Maximum Short Circuit Test Level Cleat Spacing

  • 104kA 600mm Cleat Spacing
  • 132kA 300mm Cleat Spacing

International Approvals

The Ellis Patent Vulcan cable cleats are approved, certified and listed by DNV GL, ABS, UL and London Underground LUL – S1085 (Product Register Number 361). Specialist application cable cleats include: LSF Zero Halogen | Fire Resistant & Rated | Hazardous Areas | MV HV 11kV 33kV 66kV | EHV 132kV 400kV

DNV Cable Cleats ABS Cable Cleats UL Listed Cable Cleats LU LUL Cable Cleats



Installing Cable Cleats

Installation instructions for single way cables using Vulcan+ cleats manufactured by Ellis Patents:

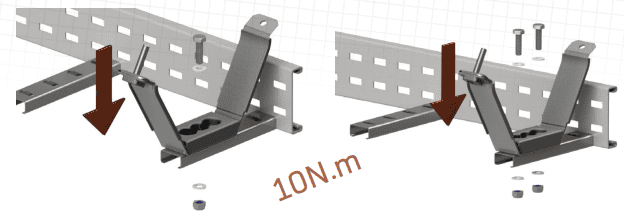

Bolt the cleat to the support structure using either the single central or two outer fixing positions Install the cables, when necessary remove the removable base pad to allow for the larger cables in the cleats range Remove the flange nut. Bend the two edges of the cleat around the cables until they are parallel. Locate the screw into adjacent hole and replace the flange nut Tighten Flange Nut
1. Bolt the Vulcan cable  cleat to the support structure using either the single central or two outer fixing positions 2. Install the cables, when necessary remove the removable base pad to allow for the larger cables in the trefoil cleats range 3. Remove the flange nut. Bend the two edges of the cleat around the cables until they are parallel. Locate the screw into adjacent hole and replace the flange nut 4. Tighten flange nut to complete cable cleat installation

WARNING – Do not over tighten the stainless steel cable cleat. The liner should be in good firm contact with the cable but does not need to be so tight that the cable bulges at either side of the liner.

Vulcan Cable Cleats With Twist Foot

Twist Foot Design

The NEW Twist Foot Design from Ellis Patents provides reduced installation times and labour savings when installing cable cleats – traditionally the Vulcan cable cleat range required the additional inventory and purchase of fixing kits (cleat fasteners, washers and channel nuts) however with the new redesign the cable cleat is supplied pre-assembled for immediate site installation.

The increased speed of cable cleat installation is achieved by the integral Twist Foot base – just Fit, Twist & Tighten.

Ellis Patents VULCAN+ Cable Cleats Testing Information

Should you require test samples or further specification details about Vulcan cable cleats please contact us:

Properties IEC 61914:2009 Classification Clause Units / Classification Vulcan + Single Application Test Data
Cleat Type 6.1, 6.1.3 Composite
Impact Resistance 6.3, 6.3.5, 9.2 Very Heavy Classification (5kg at 400mm) Pass
Resistance to Electro Mechanical Force (Undertaken at Damstra Laboratories NL) 6.4, 6.4.3, 9.5  kA @ 300mm Centres M10 Fixings (Withstanding one short circuit) Refer to Ellis Patents for further details
Resistance to Electro Mechanical Force (Undertaken at Damstra Laboratories NL) 6.4, 6.4.4, 9.5 kA @ 600mm Centres M10 Fixings (Withstanding more than one short circuit) Refer to Ellis Patents for further details
Temperature for Permanent Application 6.2 ºC -40 to +60
Needle Flame Test 10.0, 10.1 Application Time (seconds) > 120
Lateral Load Test 9.3 Newtons (N) 5830
Axial Load Test 9.4 Newtons (N) 280
Ellis Patents Vulcan+ Cable Cleats 30-110mm – Stainless Steel

Ellis Patents Vulcan+ Cable Cleats

Ellis Patents VULCAN+ CABLE CLEAT – Single Cable Application Selection Table

➡ The following selection table provides information to enable the specification or purchase of the correct Vulcan cable cleat – contact Thorne & Derrick for further technical information, installation advice, samples or to place an order.

Vulcan+ Cable Cleat Part Number Single Cable Range Dimensions Weight (g)
Min Dia (mm) Max Dia (mm) W (Max) (mm) H (Max) (mm) D (mm) P (mm) Base Holes
VRT+00 30 42 60 93 54 n/a 1 x M10 251
VRT+01 38 50 63 98 54 n/a 1 x M10 258
VRT+02 43 58 72 106 54 n/a 1 x M10 269
VRT+03 49 64 79 112 54 n/a 1 x M10 279
VRT+04 55 70 85 118 54 n/a 1 x M10 284
VRT+05 58 75 96 125 54 n/a 1 x M10 319
VRT+06 63 84 105 133 54 n/a 1 x M10 331
VRT+07 73 90 112 140 54 n/a 1 x M10 391
VRT+08 83 100 121 149 54 n/a 1 x M10 405
VRT+09 86 104 126 154 54 n/a 1 x M10 411
VRT+10 88 110 134 162 54 50 3 x M10 442
VRT+11 90 115 143 170 54 50 3 x M10 453
VRT+12 100 125 152 177 54 50 3 x M10 460
VRT+13 107 132 161 185 54 75 3 x M10 524
VRT+14 120 145 169 192 54 75 3 x M10 536
VRT+15 125 150 176 199 54 75 3 x M10 542
VRT+16 132 153 183 205 54 75 3 x M10 544
VRT+17 136 156 190 216 54 75 3 x M10 618
VRT+18 139 159 200 225 54 75 3 x M10 628
VRT+19 142 162 200 235 54 75 3 x M10 637
VRT+20 150 170 215 240 54 75 3 x M10 646



Ellis Patents Vulcan+ Cable Cleats - Dimensions

Ellis Patents Vulcan+ Cable Cleats – Dimensions

Installing Ellis Patents Vulcan+ Cable Cleats

Ellis Patents recommend fixing VRT+ using one 10mm bolt for sizes 00 to 09, and one or two 10mm bolts for sizes 10 to 20.

Ellis Patents Cable Cleats

Ellis Cleats | Emperor | Vulcan | Atlas | Phoenix | Single Trefoil Quad Bundled Cables

Cable Cleats v Cable Ties

The Video produced by Ellis Patents provides compelling evidence of the need to ensure all cables are adequately supported and retained to cable containment to protect against the devastating effects of short circuit faults: 118kA Short Circuit Fault Current | 0.1 Seconds Duration | 480V Low Voltage Cables.
