Klauke Remote Bluetooth Cutting Tools with Network Rail Approvals (PADS)

Published 19 Jul 2023

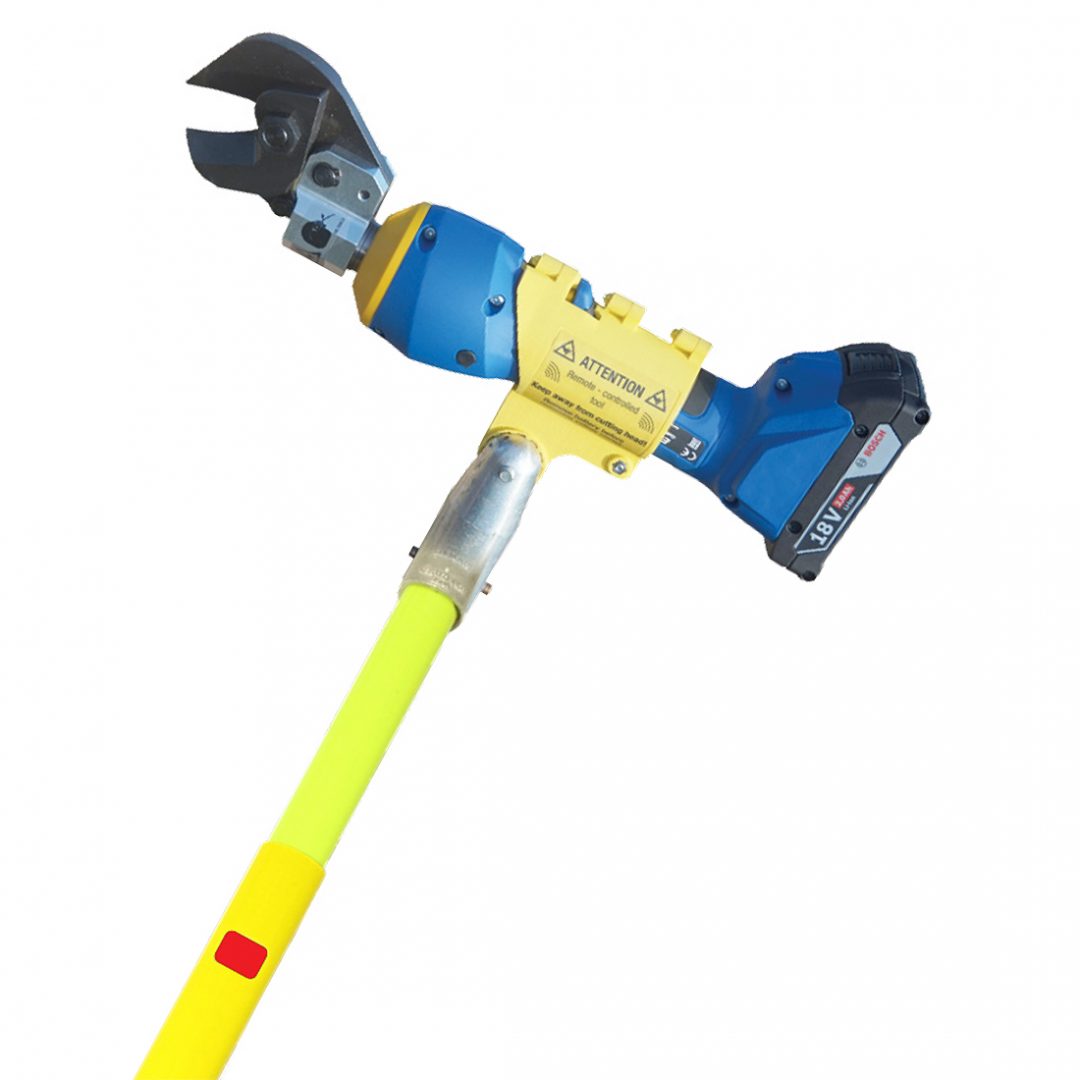

Klauke Remote Bluetooth Cutting Tools

Network Rail Approvals (PADS) Overhead Line Cutting Tools

This unique overhead line cutting tool by Klauke allows the user to operate and control the cutting function remotely via Bluetooth technology. Ideal for cutting applications at height where there are potential benefits from carrying out this work from ground level.

Cable cutting and crimping tools manufactured by Klauke are renowned for high-quality, electrical connection tools for cable crimping, cutting and punching – special cable tooling solutions for applications in a range of different sectors.

The Klauke tool is fully trialled and approved for use within Network Rail, PADS Acceptance Certificate No: PA05/06827.

When used in conjunction with telescopic or sectional operating poles the user is easily able to manoeuvre the cutter into a convenient position to enable the cutting of jumpers, conductor tail ends, vegetation and debris on or in the vicinity of power lines.

The overhead line cutting tools is available in 3 versions for cutting ACSR conductor (20mm dia max), copper and aluminium conductor (32mm dia.) or vegetation such as small tree branches up to 50mm diameter.

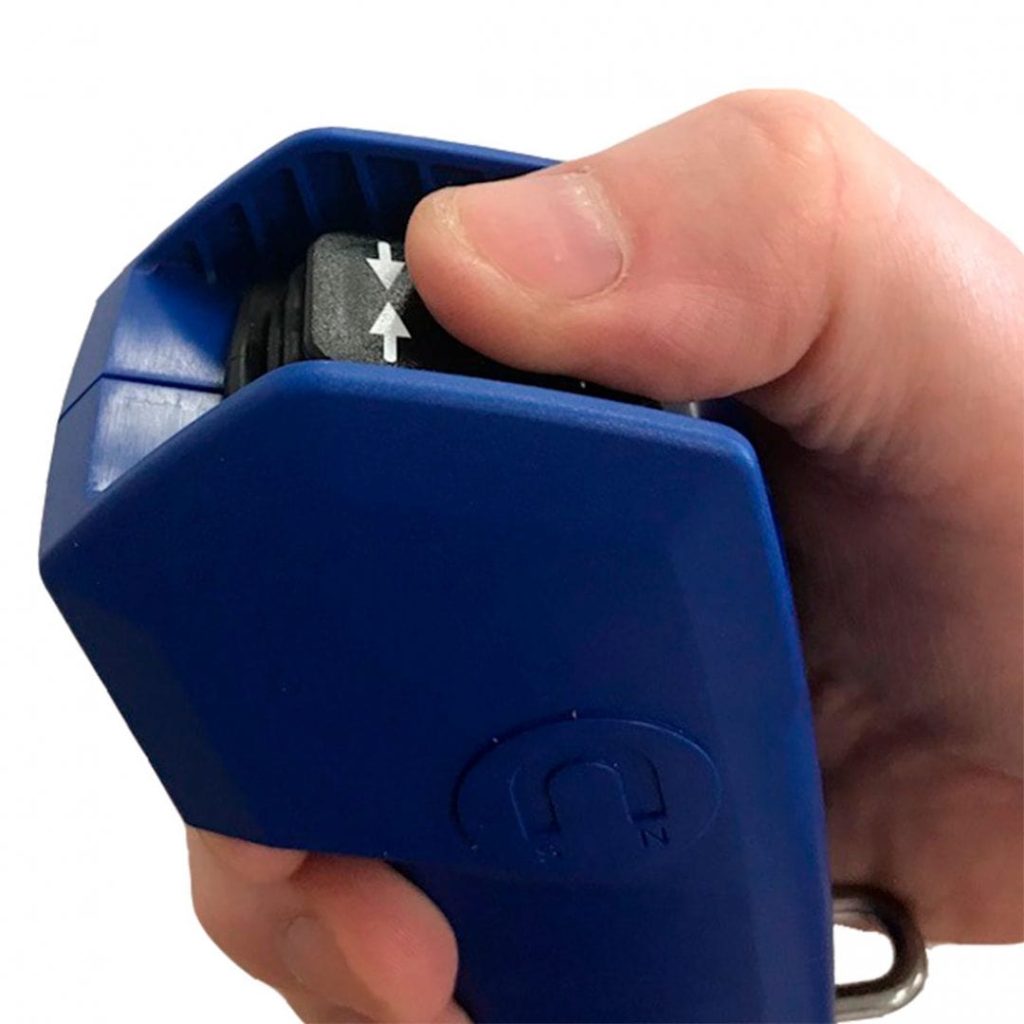

The cutting tool from Klauke is operated via the BTC2 remote fob which has a simple 2-function button. Available on Makita or Bosch battery platforms. All cutting tools can be operated as hand tools by removing the yellow attachment collar and switching from remote to manual operation via the Led display.

Klauke Remote Bluetooth Cutting Tool | Please contact us if you would to book a demonstration.

Cutting Tool Features

• Operation can be switched between manual / remote operation using LED Display
• One-button operating concept for controlling all functions
• Balanced centre of gravity for easy handling and effortless operations, especially when used with hotsticks, telescopic or sectional operating rods
• Quick motor stop for added user safety
• Automatic retraction when cutting operation is complete. Manual retraction when required
• Operated remotely using Bluetooth fob
• LED for workplace illumination
• Open head rotates through 300°
• LED display for tool data
• Yellow collar fitted with universal rose to allow all angle attachment of operating rod ensuring perfect positioning for cut

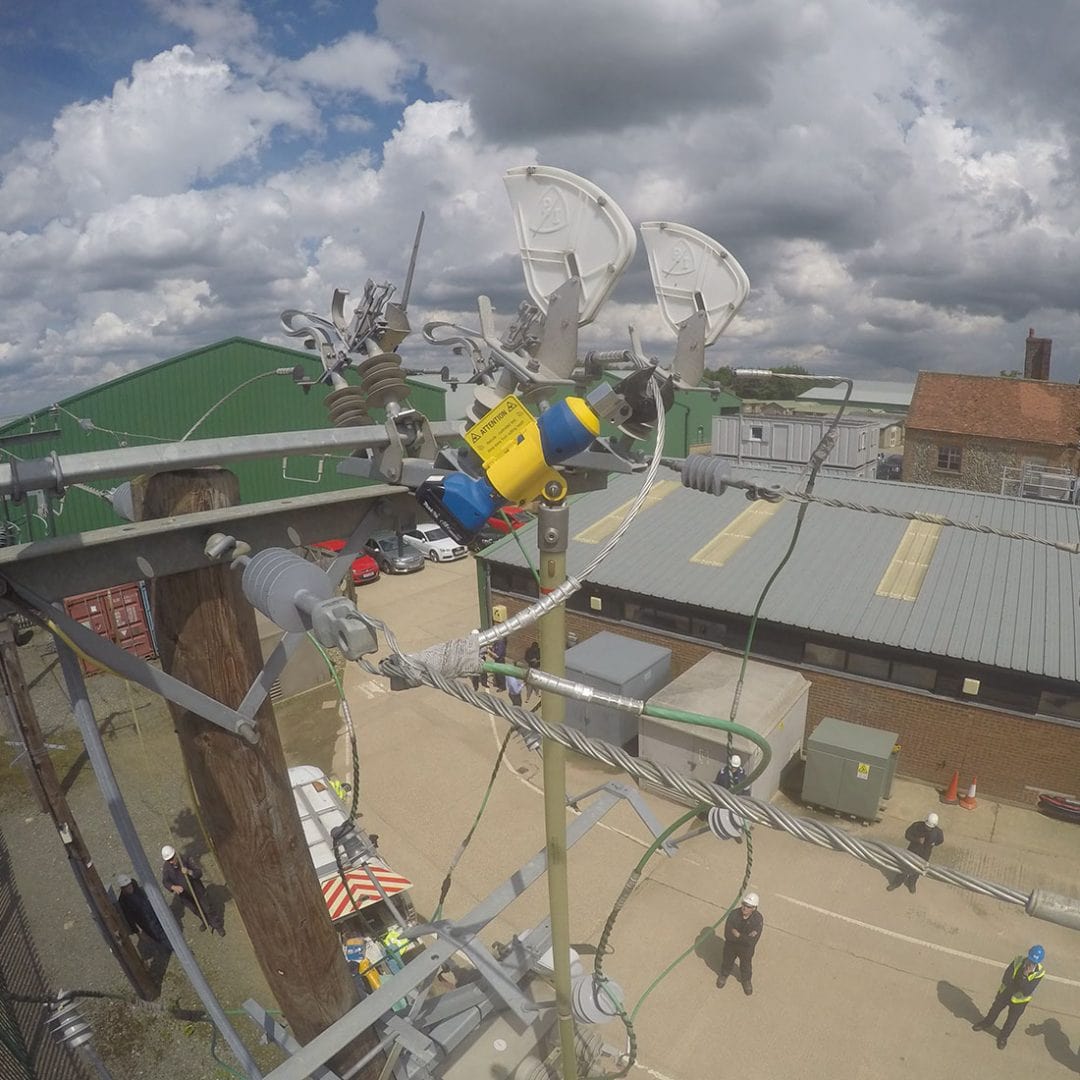

Ideal for Cable Cutting Applications at Height

Klauke Remote Bluetooth Cutting Tools

Technical Specifications

Klauke Remote Bluetooth Cutting ToolS

CRIMPING CABLES, LUGS & TOOLS

Thorne & Derrick distribute Cable Lugs & Cable Connectors to terminate, splice and joint LV MV HV cables – this includes copper, aluminium and bi-metallic connectors and a complete range of crimping tools for specific use on all Low, Medium & High Voltage cable types, including ratchet cable cutters.

➡ Associated Brands & Products | Klauke | Cembre | Pfisterer Sicon | Cable Crimping & Cable Cutting Tools

Further Reading

• Klauke Bluetooth Remote Cutting Tool – Data Sheet Size: 1.31 MB
• Remote Controlled Bluetooth Cutter – Operation Instructions Size: 1.47 MB
